Emerson 1C31197G01 | Drop-In Replacement Valve Interface Board

Description

Emerson 1C31197G01 | Drop-In Replacement Valve Interface Board

Product Introduction

While the baseline 1C31194 controller handles digital loop calculations, the 1C31197G01 acts as the dedicated physical interface—bridging raw field signals to the electronics without introducing digital noise. Mounted directly to the Ovation I/O base assembly, this personality module dictates how excitation voltages, return feedback currents, and servo coil drive lines route into the processing card.

By offloading field terminal matching to a dedicated personality card, Emerson allows field engineers to replace active processing modules without touching a single field wire screw terminal. The 1C31197G01 features ruggedized PCB trace paths designed to handle high field excitation frequencies without capacitive crosstalk—though you will still want to ensure shield drain wires stay tied cleanly to signal ground.

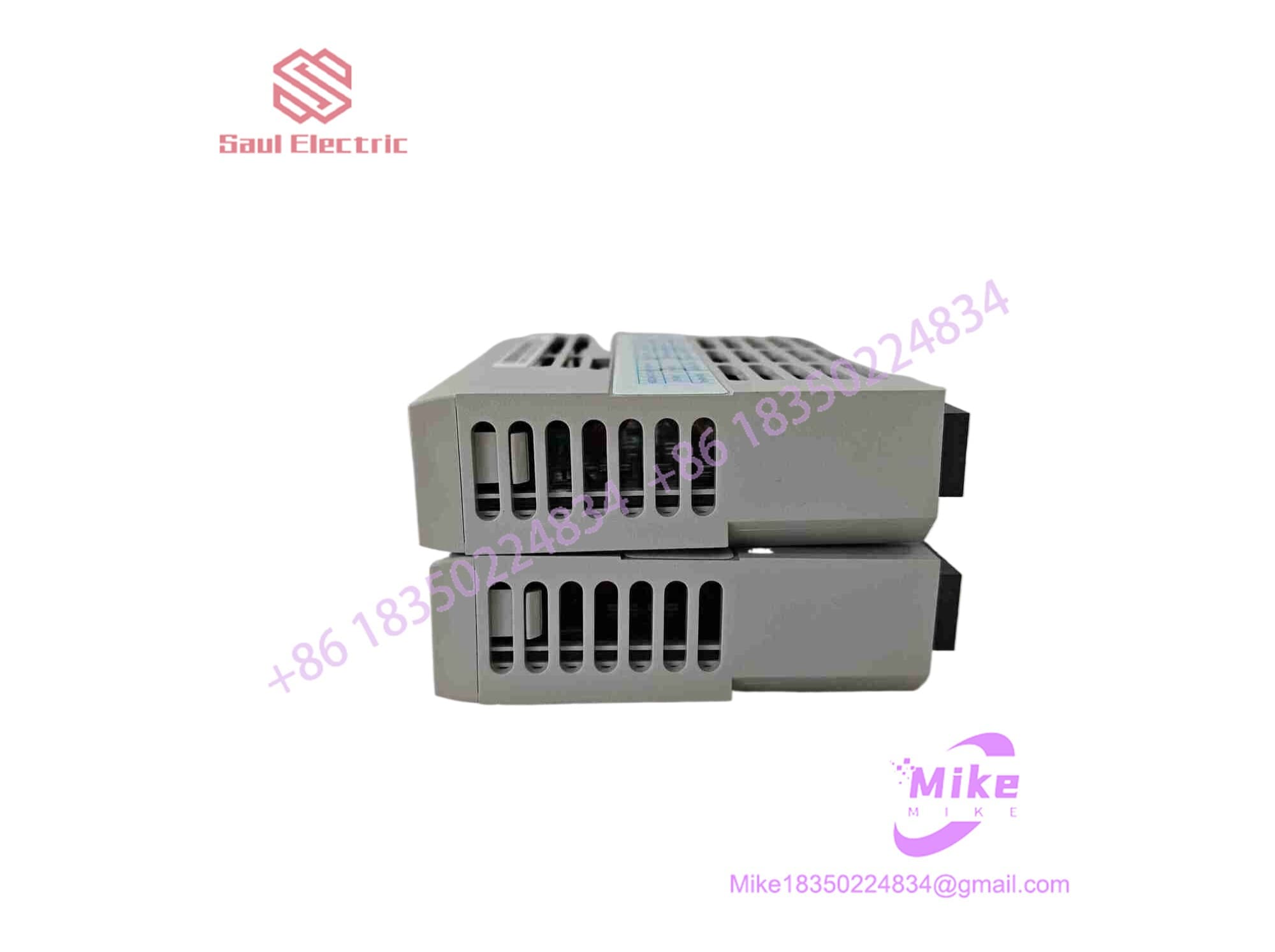

1C31197G01

Key Technical Specifications

Application Scenarios & Pain Points

• Field Anecdote: A peaker plant in Indiana faced erratic steam valve feedback during seasonal restarts due to severe terminal pad oxidation on an old interface card. Dropping in a clean 1C31197G01 personality module eliminated high-resistance contact points instantly, allowing the turbine governor system to pass full-stroke valve testing on the first try.
• With vs. Without Contrast:
  • Without 1C31197G01: Field wiring ties directly into active processor boards, forcing technicians to disconnect 20+ field leads and risk rewiring errors every time a processor card needs maintenance.
  • With 1C31197G01: Field wiring remains permanently landed on the base; the personality module maintains solid pin contacts so main active cards swap out in under two minutes.
• Blunt Technical Conditions:
  • High-Humidity Turbine Decks: Heavy conformal coating prevents moisture bridging across fine-pitch backplane connector pins.
  • High EMI/RFI Environments: Dedicated grounding trace planes prevent high-frequency noise from corrupting delicate AC LVDT feedback loops.

QA & Live Testing SOP (Trust Signal)

Every 1C31197G01 undergoes physical and electrical validation steps before reaching warehouse shelves:

• Microscopic Pin & Trace Audit: Inspection under stereo magnification to verify zero connector pin deformation, cold solder joints, or trace hairline fractures.
• Continuity & Impedance Matrix: We map out every trace pathway using a Fluke DMM to verify low resistance (<0.2Ω) and guarantee zero cross-channel leakage or insulation shorts.
• Mechanical Seat & Fit Verification: Inserted into a standard Ovation base frame to confirm exact alignment of guide rails and zero-stress mating on female header connectors.
• ESD-Safe Packaging: Sealed inside static-shielding bags with fresh moisture desiccant, packed in custom double-wall foam boxes.

Field Engineer’s Pitfall Guide

• ❗ Match Electronics to Personality G-Group: Do not pair a G01 personality card with an incompatible electronics module revision without checking the Ovation I/O manual. Wiring trace assignments differ between group revisions—mixing them up will cause lost LVDT excitation or open-loop servo faults.
• ❗ Inspect Header Pins Before Insertion: Check the male header pins on the back of the base unit before pressing the 1C31197G01 into place. A bent pin will buckle inside the socket, leading to intermittent feedback drops that look like a failing transducer.
• ❗ Field Terminal Screw Torque: When landing heavy field wiring on the terminal block, torque screws to recommended specs (4.5 in-lbs). Over-torquing can flex the underlying baseboard, stressing the surface-mount connectors on the personality card.

Intent-Driven FAQ

What is the exact difference between the active module (e.g., 1C31194G03) and this 1C31197G01 personality board?

The active module contains the microprocessors, A/D converters, and software logic execution hardware. The 1C31197G01 is a dedicated passive interface board that dictates the physical signal routing between field wiring terminals and the active module’s backplane pins.

Does the 1C31197G01 require software or firmware flashing?

No. Because the 1C31197G01 is a passive hardware routing interface, it carries no onboard firmware or programmable memory. It works out of the box once plugged into the matching base assembly.

Can I hot-swap the personality board while field power is applied?

While Ovation electronics cards support hot-swapping, you should disconnect external field power (especially valve excitation supply voltage) before pulling or inserting the personality module to avoid arcing across small interface header pins.

Are these units brand new or reconditioned surplus?

We supply both New Surplus in original packaging and fully reconditioned surplus. All units undergo identical continuity, insulation, and mechanical fit testing prior to shipment.

What causes a personality module to fail if it has no active IC chips?

Thermal cycling, corrosive industrial atmospheres (like airborne hydrogen sulfide), mechanical vibration, and field over-voltage surges can degrade physical trace connections, corrode connector pins, or bridge adjacent traces.

What warranty comes with this 1C31197G01 module?

We back this unit with a full 1-year replacement warranty covering trace continuity, connector integrity, and overall mechanical performance.
