Emerson 1C31122G01 | Ovation 16-Channel DO Electronics Module

Description

Emerson 1C31122G01 | Ovation 16-Channel DO Electronics Module

Product Introduction

When a high-speed interlock command trips on your steam turbine or chemical dosing skid, logic speed is only half the battle. The Emerson 1C31122G01 is not a lazy mechanical relay board; it is a high-density, 16-channel solid-state Digital Output Electronics Module (EMOD) built for high-availability Ovation DCS racks. It translates low-voltage controller logic into real-world switching actions—driving solenoid valves, motor starter coils, and status indication lamps across a broad 5 to 60 VDC operating range.

Plugging directly into standard Ovation I/O base assemblies, this module eliminates mechanical contact bounce and relay arcing. With response times clocked under 1 millisecond and channel-to-channel optical isolation, the 1C31122G01 keeps dirty field transients from backing up into your controller bus. Whether you are managing emergency shutdown (ESD) loops or fast-cycling batching operations, maintaining a verified 1C31122G01 on your spare parts rack ensures a single blown driver transistor won’t paralyze an entire production line.

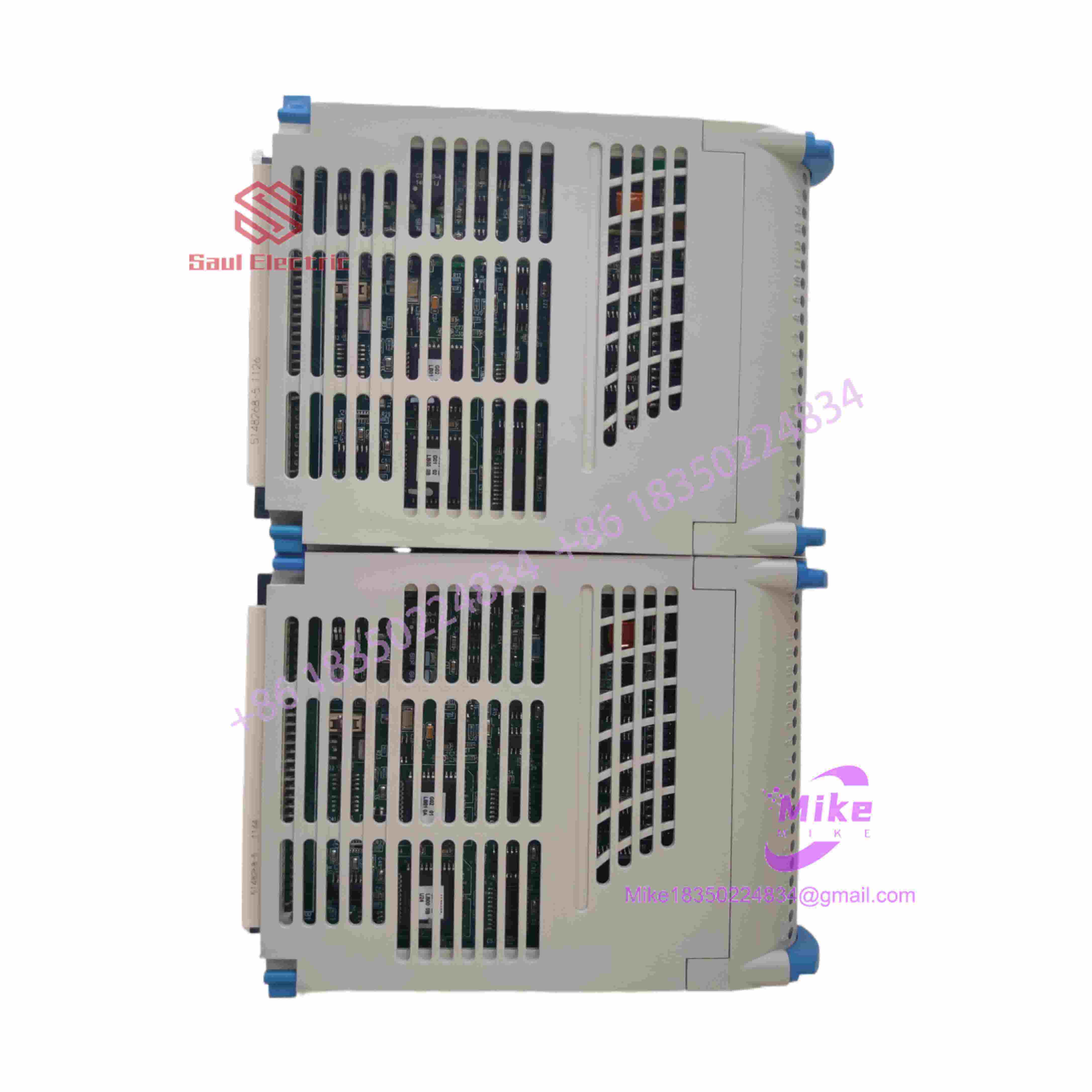

1C31122G01

Key Technical Specifications

Application Scenarios & Pain Points

Scenario 1: Field Diary – Combined-Cycle Tripping Issue

A peak-load gas plant in Texas experienced intermittent false trips on its auxiliary lube oil pump control loop. The root cause was an aging mechanical relay card on a legacy rack that welded its contacts shut under inductive kickback. Swapping the mechanical card out for a solid-state Emerson 1C31122G01 eliminated the inductive arc welding entirely, dropping channel switching times down to sub-millisecond ranges and restoring rock-solid pump staging during fast starts.

Scenario 2: With vs. Without Solid-State Output Cards

• Without 1C31122G01: Electro-mechanical relay modules suffer from contact erosion, mechanical wear, slower response times (>15 ms), and physical contact bounce—frequently triggering nuisance alarms on high-speed monitoring systems.
• With 1C31122G01: Solid-state switching provides unlimited actuation cycles with zero mechanical wear. Fast <1 ms switching times ensure high-speed solenoid actuation and precise sequence-of-events logging.

Scenario 3: Heavy-Duty Industrial Applications

• High-Duty Cycle Valve Actuation: Water treatment plants running fast-cycling backwash valves every few minutes where standard relay coils burn out every 6 months.
• Noisy Electrical Switchgear Rooms: Installations exposed to heavy electromagnetic interference (EMI). The onboard optical isolation of the 1C31122G01 prevents field noise spikes from resetting the Ovation controller drop.

QA & Live Testing SOP (Trust Signal)

Every 1C31122G01 module undergoes strict quality control before being approved for critical process deployment:

1. Visual & Board-Level Audit: We inspect all SMD components, optical isolators, and gold-plated edge connectors under stereoscopic magnification to verify no trace lifted, solder bridging, or thermal discolouration.
2. Channel-by-Channel Load Testing: Using a custom automated test fixture, we load all 16 channels to their maximum rated VDC/ampere thresholds to verify solid-state switching, thermal dissipation, and individual channel LED functionality.
3. Live Ovation Rack Handshake: The module is snapped into an active Ovation base unit on a test rack. We send rapid ON/OFF pulse sequences from the controller to confirm zero channel cross-talk, sub-millisecond response, and instant diagnostic reporting.
4. ESD Safe Shielding: Cleared modules are sealed in static-shielding bags and packed in heavy-duty custom foam blocks for safe transport.

Field Engineer’s Pitfall Guide

❗ WARNING 1: Suppress Inductive Kickback at the Load

When switching inductive loads (such as large solenoid valves or DC interposer relay coils), always install a flyback diode directly across the field device terminals. Failure to suppress back-EMF at the load can send high-voltage spikes back to the 1C31122G01, eventually breaking down the channel’s solid-state driver MOSFET.

❗ WARNING 2: Mind Total Base Current Limits

While individual channels can handle short surge currents, running all 16 channels simultaneously at maximum load will exceed the thermal dissipation rating of the module and the backplane power supply. Derate total continuous current per module according to ambient cabinet temperatures!

❗ WARNING 3: Verify Grounding and Power Polarity

The 5–60 VDC field power supply must share a proper reference ground. Reversing the field supply polarity across the field terminal block will cause the internal anti-parallel protection diodes to conduct continuously, blowing fuses or tripping upstream circuit breakers.

Intent-Driven FAQ

Q: Can I hot-swap the 1C31122G01 module while the Ovation drop is running?

A: Yes, in supported Ovation base configurations, the electronic module (EMOD) supports hot-swapping. However, make sure you inhibit logic execution for those 16 output channels first—pulling the module while outputs are energized will immediately de-energize all connected field devices!

Q: Does this module support AC output voltages?

A: No. The 1C31122G01 is strictly rated for 5 to 60 VDC operation. Attempting to switch 120 VAC or 230 VAC line voltages through this card will instantly destroy the solid-state output drivers and pose a severe hazard.

Q: What is the difference between an EMOD like this and a PMOD?

A: The 1C31122G01 is the top Electronic Module (EMOD) housing the active processing micro-circuitry, status LEDs, and bus drivers. The Personality Module (PMOD) sits directly underneath on the base unit and routes the physical wiring and field fuse protection.

Q: What does a red channel LED indicate on the front faceplate?

A: A red LED indicates a channel fault condition—typically caused by a field wiring open-circuit, an over-current trip, or a blown channel fuse on the underlying terminal personality module.

Q: What warranty coverage do you offer on this module?

A: Every 1C31122G01 module carries our standard 12-month full replacement warranty. If any channel fails testing or drops offline during initial commissioning, we replace it immediately from our ready-to-ship stock.
