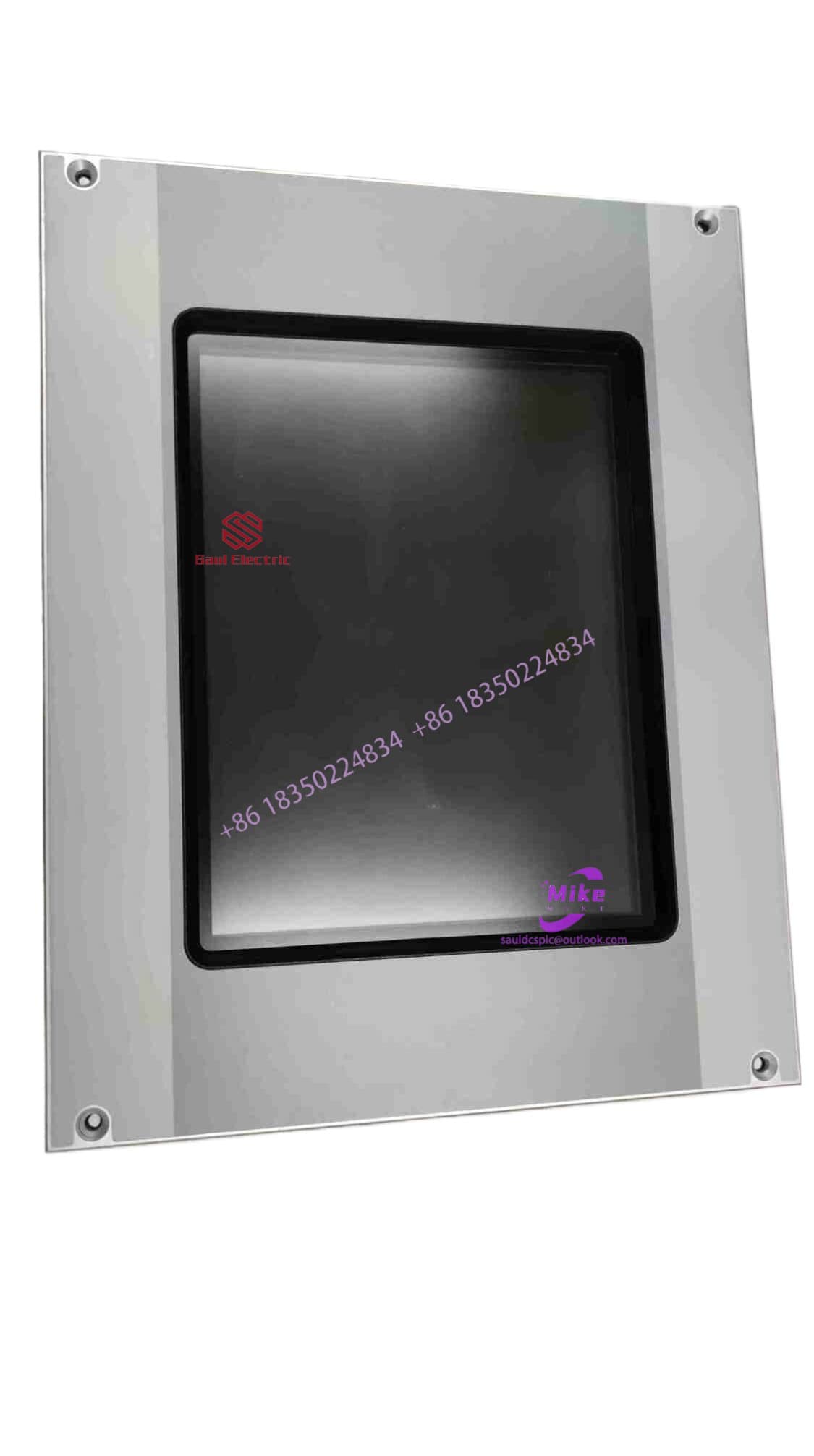

XV-440-10TVB-1-20 EATON XV series touch screen
XV-440-10TVB-1-20 is a 10.4-inch stainless steel panel industrial touch screen human-machine interface (HMI) in the Eaton XV150 series (MICRO PANEL XV400), designed specifically for explosive hazardous environments. It is a configuration variant of the XV-440-10TVB-1-10 in the same series.
XV-440-10TVB-1-20 EATON XV series touch screen
The display screen adopts a 10.4-inch TFT LCD with a resolution of 800 × 600 pixels, supporting multiple display modes such as full screen, split screen, and picture in picture, with clear images and rich colors. The touch mode supports both capacitive and resistive methods, supports multi touch, allows multiple fingers to operate simultaneously, and improves operation efficiency. Built in buttons, input boxes, images, and other rich interface elements facilitate human-computer interaction.
The biggest feature of this model is the use of a stainless steel front panel (TVB logo), designed specifically for explosive environments in Zone 1 and Zone 2. It must be installed in a pressurized enclosure with Ex px EC certification and comply with Class IIIC explosive environment standards. It is suitable for explosion-proof areas in industries such as chemical, pharmaceutical, food, and refining. The working temperature range is from 0 ° C to+50 ° C, with a maximum surface temperature of 70 ° C in the front and 110 ° C for electronic devices. The protection level is IP65, and it is dustproof and waterproof. The device is equipped with sealing strips and eight fixed brackets, designed for embedded installation in control cabinets, control panels, or consoles. 10.4-inch devices can be installed horizontally or vertically.
The communication interface configuration is complete, with standard Ethernet (10/100Mbps), serial port (RS232/RS485), USB host port, supporting multiple industrial protocols such as Modbus and EtherCAT, and can run up to four different network protocols simultaneously. It has protocol conversion and data centralization functions. The power supply voltage is 24V DC, the power consumption is about 220W, the weight is about 4.5kg, and the external dimensions are about 350 × 250 × 450mm. It has built-in security functions such as password protection and access control, and provides a friendly human-machine interface and diagnostic function for easy maintenance and debugging. Passed CE certification, meets Level 2 pollution standards, must be powered by SELV power supply and connected to protective grounding.
Compared with the same series XV-440-10TVB-1-10, the hardware platform and explosion-proof design of the two are completely identical. The main difference is that the suffixes “1-20” and “1-10” represent different communication interfaces or functional configuration combinations. The specific differences need to be confirmed by referring to Eaton’s official model comparison table. There are also options available in the same series, such as XV-440-12TVB-1-20 (12.1-inch version).
Typical applications include production line monitoring in explosion-proof areas such as chemical, pharmaceutical, and food industries, as well as industrial scenarios such as power plants, steel mills, cement plants, building automation, packaging machinery, and robot control that have clear requirements for environmental adaptability and operational experience.
In summary, XV-440-10TVB-1-20 is a 10.4-inch stainless steel panel IP65 explosion-proof industrial HMI in Eaton’s XV400 series. It features an 800 × 600 TFT screen, capacitor/resistor dual touch, stainless steel Ex px EC explosion-proof front panel, and multi protocol communication as its core. It is a mature solution that balances operational experience and environmental reliability in hazardous areas such as chemical and pharmaceutical industries.
