Eaton XV-440-12TSB-1-10 | 12.1″ HMI Touch Panel In-Stock
Dynamic Product Introduction
Few failure modes trigger more immediate chaos in a control room than a large-format operator screen going completely dark or freezing up during a continuous process run. The Eaton XV-440-12TSB-1-10 functions as a high-visibility visualization window, pairing a spacious 12.1-inch SVGA display matrix with responsive onboard signal execution. Built specifically for high-density cabinet doors, it processes simultaneous operator inputs, multi-trend graphic rendering, and continuous network heartbeats without introducing display latency or dropping bus frames.
When an operational screen suffers backlight degradation, touch surface dead zones, or port transceiver damage mid-shift, sourcing a direct-fit Eaton XV-440-12TSB-1-10 module keeps facility maintenance schedules strictly on track. Installing a fully bench-tested replacement unit allows automation technicians to drop a working display straight into existing cabinet cutouts without altering panel cutouts or modifying field wiring harnesses. Swapping out a degraded terminal instantly brings back sharp display clarity, precise touch feedback, and steady network node communications.

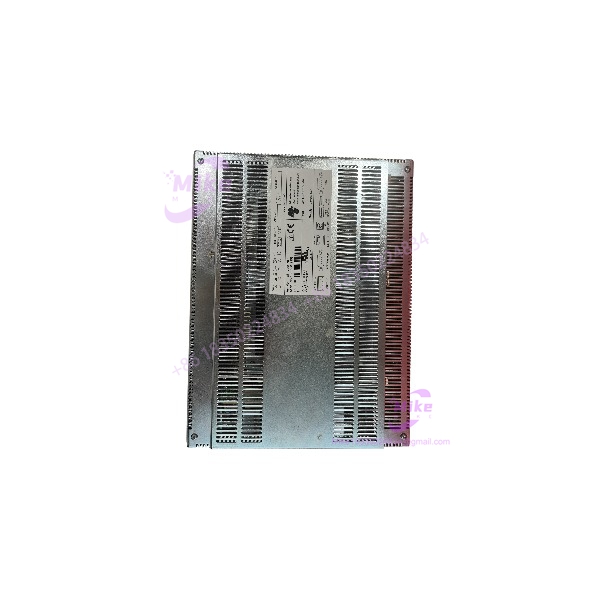

XV-440-12TSB-1-10
Key Technical Specifications
- Model Designation: XV-440-12TSB-1-10
- Manufacturer: Eaton / Moeller
- Display Size: 12.1-inch diagonal
- Display Technology: SVGA TFT high-contrast color LCD
- Touch Technology: Analog resistive touch layer
- Supply Voltage Rating: 24 VDC (±20% operational tolerance)
- Onboard Communication Ports: RS-232, Ethernet, USB host/device, multi-fieldbus interfaces
- Processing Core: 32-bit industrial RISC processor
- Front Bezel Protection: IP65 / NEMA 4X (indoor enclosure rating)
- Operating Temperature Range: 0°C to +50°C (32°F to 122°F)
- Storage Temperature Range: -20°C to +60°C (-4°F to 140°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring replacement HMI display hardware like the Eaton XV-440-12TSB-1-10 requires strict bench diagnostic screening to verify touch layer calibration, backlighting longevity, and communication transceivers. Every incoming module passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Serial numbers and build hardware revision tags are verified against original Eaton manufacturing databases. Technicians carefully examine the front membrane for micro-cracks or gasket degradation, and inspect rear terminal connections for thermal fatigue.
- Live Simulation: The Eaton XV-440-12TSB-1-10 is mounted into a diagnostic test stand powered by a regulated 24 VDC industrial power supply.
- Diagnostics: Technicians perform multi-point touch grid calibration routines to verify zero actuation drift across all display quadrants. Onboard communication interfaces undergo active packet-transfer testing against a target controller. The panel then completes a 24-hour thermal soak inside an environmental test chamber to rule out display flickering or backlight output decay under operational heat.
- Final Prep: Internal runtime memory is wiped back to factory baseline states, terminal block screws are torque-verified, protective film is applied over the display glass, and the panel is sealed inside anti-static ESD shielding prior to freight transit.
The Field Engineer’s Pitfall Guide
- ❗ Communication Driver and IP Configuration Mismatches: —though you might expect the unit to auto-negotiate upon power-up, failing to align the network IP subnet or PLC communication drivers on the Eaton XV-440-12TSB-1-10 with your existing PLC network will trigger an immediate communication timeout error on startup.
- ❗ Over-Torquing Cabinet Retaining Clips: Unevenly cranking down on outer mounting clamps will twist the large 12.1-inch plastic enclosure. I’ve seen plant technicians distort the front sealing gasket and induce permanent touch registration errors simply by using an electric driver instead of tightening clips evenly by hand.
- ❗ Strain and Flex Damage on Interface Cables: Allowing heavy communication and power cables to hang unsupported off the rear ports of the Eaton XV-440-12TSB-1-10 will stress internal circuit board solder joints over time. Always secure proper strain-relief brackets inside the control enclosure.
Intent-Driven FAQ
Will swapping out an Eaton XV-440-12TSB-1-10 require re-downloading the application project file?
Yes. Pre-owned and surplus panels arrive with cleared factory baseline memory. You must transfer your compiled runtime application project (screen layouts, tag mapping, and PLC driver configurations) using Galileo or the appropriate programming software via a USB, network, or serial connection.
How do I correct touch input points that register offset from on-screen action buttons?
If screen taps become misaligned, enter the system configuration menu during the initial boot sequence. Access the integrated touch calibration utility and follow the screen crosshair prompts to re-index the analog resistive touch matrix layer.
Can this panel be powered directly from an unregulated 24V DC power supply?
No. Unregulated DC power lines frequently carry transient voltage spikes that exceed the operational limits of the internal power board. Always feed the unit from a filtered, regulated 24 VDC industrial power supply.
What causes a dark screen when the power status LED lights up green?
A green status LED combined with an unlit display panel typically points to a failed backlight inverter board or an expired backlight bulb inside the unit. The internal logic processing board is operational, but the LCD matrix lacks backlighting output.
What warranty protection comes with pre-inspected replacement panels?
All verified Eaton XV-440-12TSB-1-10 panels come backed by a comprehensive 1-year replacement warranty. If the unit experiences screen backlighting failure, touch layer loss, or communication port faults under standard operating parameters within 12 months, it is swapped directly from available warehouse inventory stock.
