Schneider Electric 416NHM30030A | Direct Drop-In Modbus Adapter
Dynamic Product Introduction
Upgrading or maintaining industrial HMIs and SCADA server racks without disturbing legacy Modicon PLC networks often runs into a hardware wall: modern PC operating systems struggle to talk directly to legacy field buses. The Schneider Electric / Modicon 416NHM30030A (PCI-85) network interface card bridges host PC applications straight into Modicon Modbus communication architectures.
Plugging directly into a standard 32-bit PCI slot, this specialized interface card offloads serial protocol processing from the computer’s CPU, managing real-time register polling and network arbitration via onboard firmware. Installing a bench-tested 416NHM30030A restores fast database updates to SCADA suites (like Wonderware or Citect), eliminates driver timing timeouts, and keeps critical legacy PLC networks fully visible without requiring total control system overhauls.

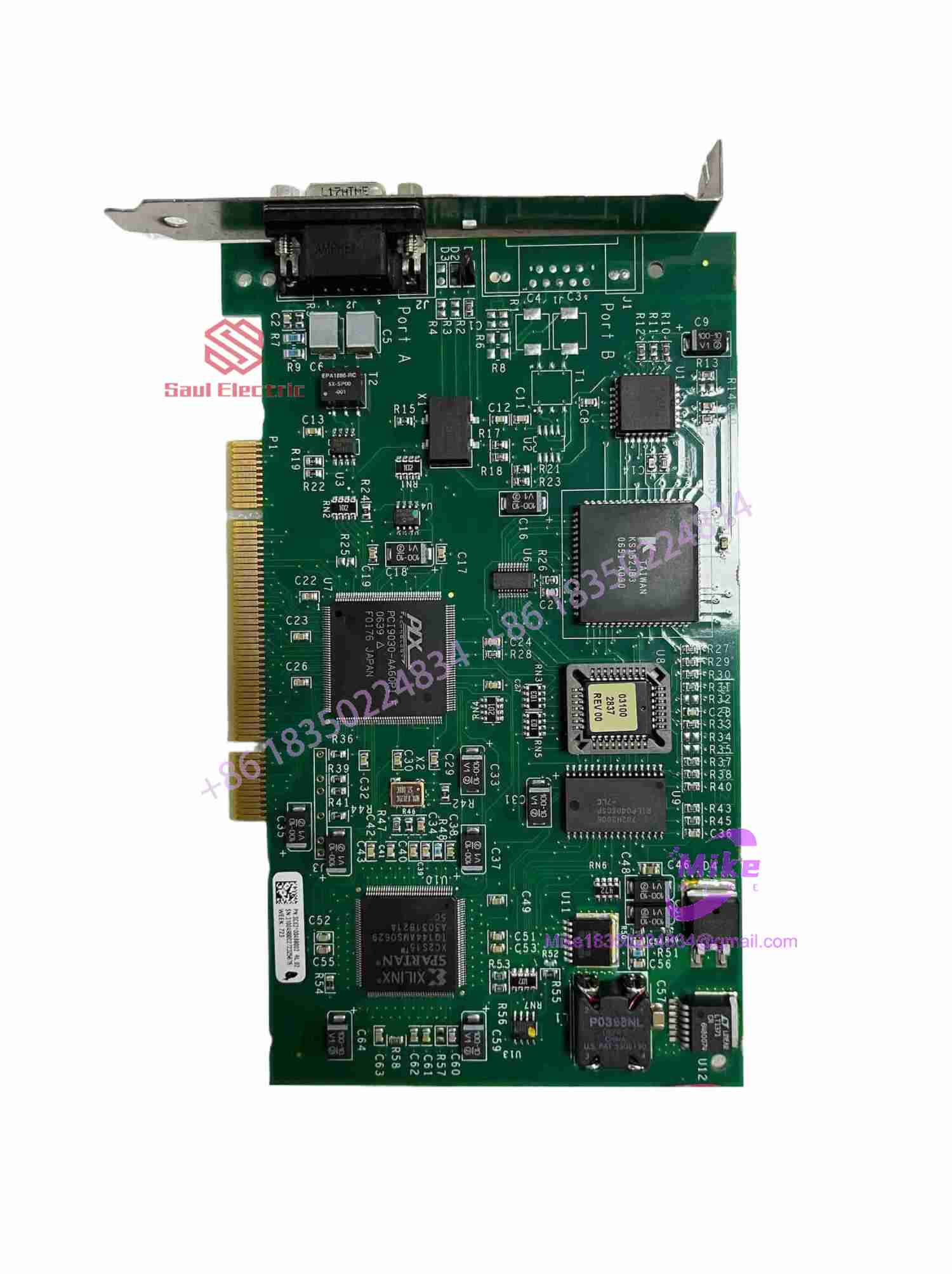

416NHM30030A
Key Technical Specifications
| Parameter | Specification Detail |
| Model / Part Number | 416NHM30030A (PCI-85) |
| OEM Brand | Schneider Electric / Modicon |
| Bus Type | Standard 32-bit PCI local bus slot |
| Protocol Support | Modbus RTU / ASCII (PCI-85 variant dependent) |
| Physical Interface | 9-pin D-subminiature (DB9) female connector |
| Baud Rates | Programmable up to 19.2 kbps / 38.4 kbps |
| Onboard Memory | Dual-port RAM for zero-wait state host CPU data exchange |
| LED Diagnostics | Front bracket Activity/Status LED indicator |
| Power Consumption | Drawn directly from PC PCI expansion bus (+5 VDC) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
Global Sourcing & Live-Test SOP (Transparency Core)
Surplus and replacement PC-bus industrial communication cards face ESD damage, edge connector wear, and driver compatibility issues. Here is our multi-step bench verification process for every incoming 416NHM30030A module:
Inbound Verification
- High-magnification optical audit of gold edge-connector contacts, bracket alignment, and surface-mount components to detect corrosion or trace fractures.
- Verification of board silk-screen markings (
416NHM30030A) and revision tags against OEM Schneider Electric catalogs.
Live PC Simulation & Driver Handshake
- The 416NHM30030A card is seated into an industrial PC chassis equipped with an authentic PCI backplane.
- Installed inside a dedicated diagnostic environment (Windows XP / Windows 7 32-bit with Schneider’s Modlink / MBPLUS drivers) to confirm PCI interrupt assignment and memory address mapping.
Network Diagnostics & Data Stress Run
- Connected via a DB9 cable to a live Modicon Quantum or Compact PLC rack running active I/O logic.
- Continuous cyclic register polling is executed for 12 hours while monitoring for packet drops, frame errors, or buffer overruns using a serial bus analyzer.
Final Prep
- PCI card-edge contacts are solvent-cleaned and coated with a protective anti-oxidation preserver.
- Card is sealed inside a static-shielding ESD bag with low-profile and standard height brackets included where applicable.
The Field Engineer’s Pitfall Guide
❗ PCI Slot Compatibility (3.3V vs. 5V Keying):
The 416NHM30030A uses legacy PCI edge keying. Attempting to force this card into a modern PCI Express (PCIe) slot—even with mechanical adapters—or into a 3.3V-only PCI-X slot can physically crack the connector or short out the PC’s motherboard power rails. Always verify that your host industrial PC features an authentic, 5V-keyed 32-bit PCI slot.
❗ Operating System Driver Compatibility Walls:
Legacy Modicon PCI cards rely on specific 32-bit driver stacks (such as Modicon’s Virtual MBX driver). Installing this card into a modern 64-bit OS (like Windows 10/11 64-bit) without specialized virtual machine wrappers or legacy driver patches will result in “Device Cannot Start (Code 10)” hardware errors in Device Manager—honestly, I’ve seen plant engineers waste days troubleshooting what they thought was a dead card simply because 64-bit Windows refused to load the legacy driver kernel.
❗ DB9 Pinout Mismatches:
The DB9 port on the 416NHM30030A does not follow standard RS-232 computer COM port pinouts for all operating modes. Connecting a standard straight-through DB9 serial cable directly to a 4-wire RS-485 network can short out transmit/receive lines and freeze the entire serial segment.
Intent-Driven FAQ
What is the main difference between a PCI-85 card and a Modbus Plus (SA85/PCI-85 MB+) card?
The standard PCI-85 (416NHM30030A) is configured primarily for Modbus serial communication protocols, whereas Modbus Plus variants incorporate dedicated token-passing network coprocessors designed to interface with high-speed Modbus Plus (1 Mb/s) local area networks.
Can I run multiple 416NHM30030A cards in a single PC chassis?
Yes, provided your host PC motherboard has sufficient available PCI slots and your SCADA software (or Modicon MBX Driver Manager) supports assigning unique memory base addresses and IRQ channels to each card.
Does this card require external power supplies?
No. All required operating voltages (+5 VDC) are drawn directly from the host computer motherboard via the PCI edge bus.
Where do I find software drivers for this legacy PCI card?
Drivers are included in Schneider Electric’s Modsoft, ProWORX 32, or the standalone Modicon MBX Driver Suite. For modern SCADA integration, 32-bit OPC servers (such as Kepware KepServerEX with Modbus Serial drivers) are commonly utilized.
What warranty is provided with surplus or refurbished units?
Every 416NHM30030A card shipped after passing our live-bench SOP includes a 1-year replacement warranty covering PCI bus communications, onboard dual-port RAM function, and DB9 serial port signal integrity.
