Schneider Electric 140CHS11000 | Factory Sealed & In-Stock Automation Module
Dynamic Product Introduction
System downtime, unexpected processor halts, and loss of communication sync in critical industrial applications can lead to catastrophic process shutdowns. On legacy Schneider Electric Modicon Quantum high-availability architectures, maintaining continuous uptime relies entirely on robust hot standby synchronization. When an aging redundancy module begins throwing communication errors or failing to maintain reliable primary-to-secondary handshakes, tweaking software configurations cannot resolve underlying hardware degradation. Deploying the Schneider Electric Modicon Quantum 140CHS11000 resolves this vulnerability directly, swapping in an OEM-spec hot standby module engineered to restore exact failover timing and dual-rack coordination.
In mission-critical plant maintenance scenarios, installing this exact replacement module re-establishes redundant system integrity without requiring a full-scale control architecture overhaul. (Though verifying fiber optic link continuity, rack address switches, and software version compatibility prior to energization remains essential.) It handles demanding continuous-duty plant environments reliably, keeping high-availability automation infrastructure fully protected.

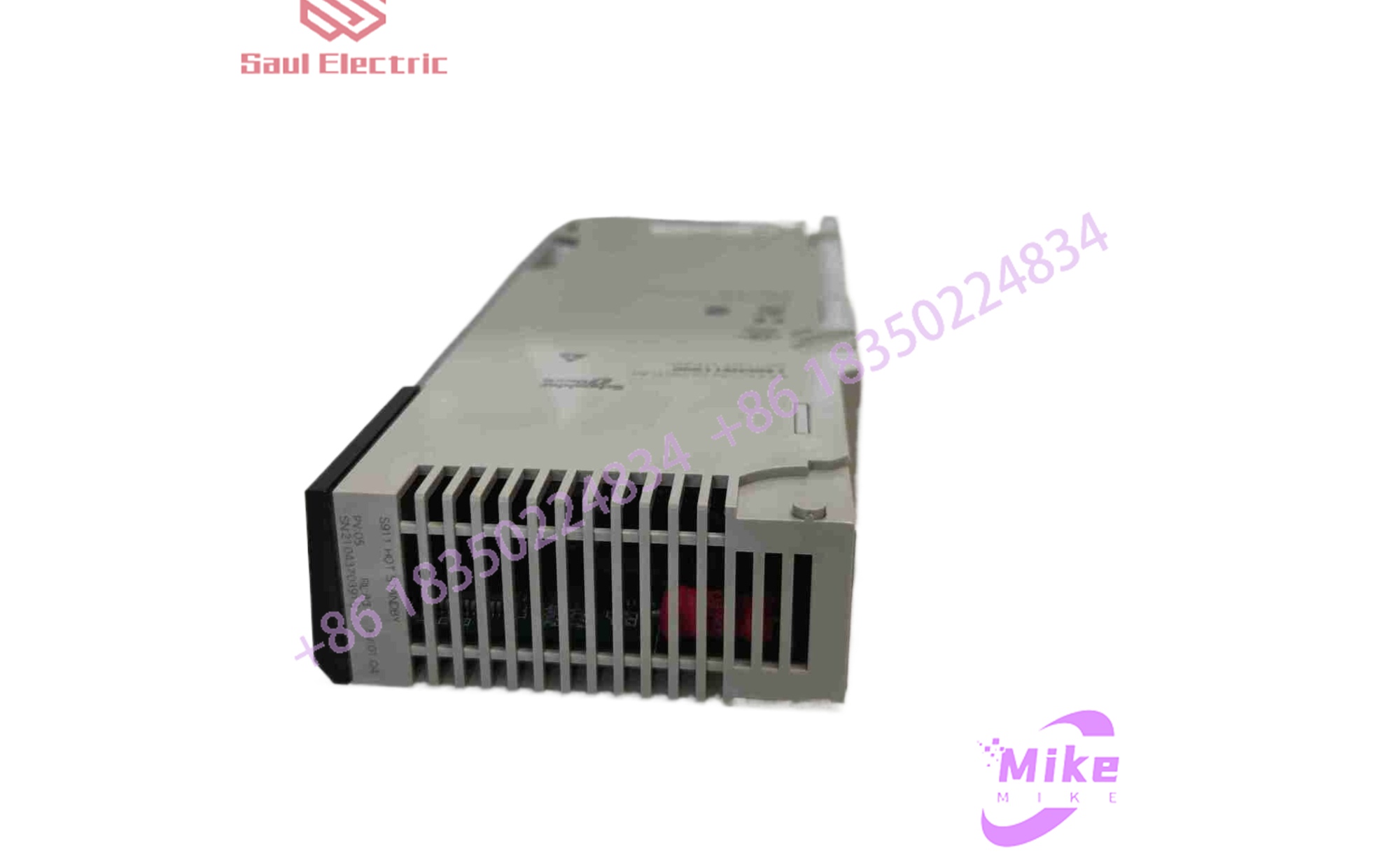

140CHS11000
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | Hot Standby (CHS) Redundancy Module |
| Series Compatibility | Schneider Electric Modicon Quantum PAC Platform |
| Transmission Rate | 10 Mbit/s |
| Communication Medium | Fiber optic (RJ45 connectors for receiver/transmitter) |
| Switching / Failover Time | 13 to 48 milliseconds |
| Bus Current Required | 700 mA |
| Software Compatibility | Concept \ge V2.0, ProWORX 32 NxT V2.0 |
| Operating Temperature | 0^\circC to 60^\circC |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring critical high-availability redundancy hardware demands rigorous communication testing and static validation to guarantee absolute failover security upon installation.
- Inbound Verification: Incoming hot standby modules undergo comprehensive serial tracking, OEM label authentication, and anti-counterfeit batch audits against historical manufacturing records.
- Live Simulation: Qualified cards are mounted onto a dual-rack Quantum test bench to evaluate fiber-optic packet transmission, register mirroring accuracy, and switchover response times.
- Diagnostics: Technicians execute simulated primary-rack power drops, link interruption tests, and bus current stabilization sweeps to isolate latent component failure risks.
- Final Prep: Fiber optic ports and backplane connector pins are cleaned to remove micro-oxidation, and the module is sealed inside heavy-duty multi-layer anti-static barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Fiber Optic Polarity Reversal: Reversing the transmit (TX) and receive (RX) fiber connections between primary and secondary racks will break synchronization loops and prevent system handshakes. Always verify optical port mapping.
❗ Firmware and Software Version Mismatches: Operating hot standby modules with mismatched executive firmware versions or incompatible Concept/ProWORX project configurations can cause fatal fault trips during switchover. Always verify version parity.
❗ Hot-Swapping Restrictions: Replacing a critical hot standby module requires strict adherence to system redundancy procedures. Unauthorized extraction on active single-point racks can result in unexpected control loss; always follow designated offline or synchronized replacement protocols.
Intent-Driven FAQ
Will this 140CHS11000 module integrate directly into my existing Modicon Quantum backplane?
Yes, it is designed as a direct slot-in module compatible with standard Quantum backplane architectures used in high-availability redundant configurations.
Are these legacy modules factory sealed or certified surplus stock?
We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your plant’s compliance needs.
What medium is used for rack-to-rack communication?
The module utilizes high-speed fiber optic communication lines connected via dedicated RJ45-style optical transceivers to ensure noise-immune data exchange between racks.
What kind of warranty coverage is included with this replacement part?
Every unit is backed by our comprehensive operational warranty, covering electrical component health, communication interface stability, and functional performance from day one.
