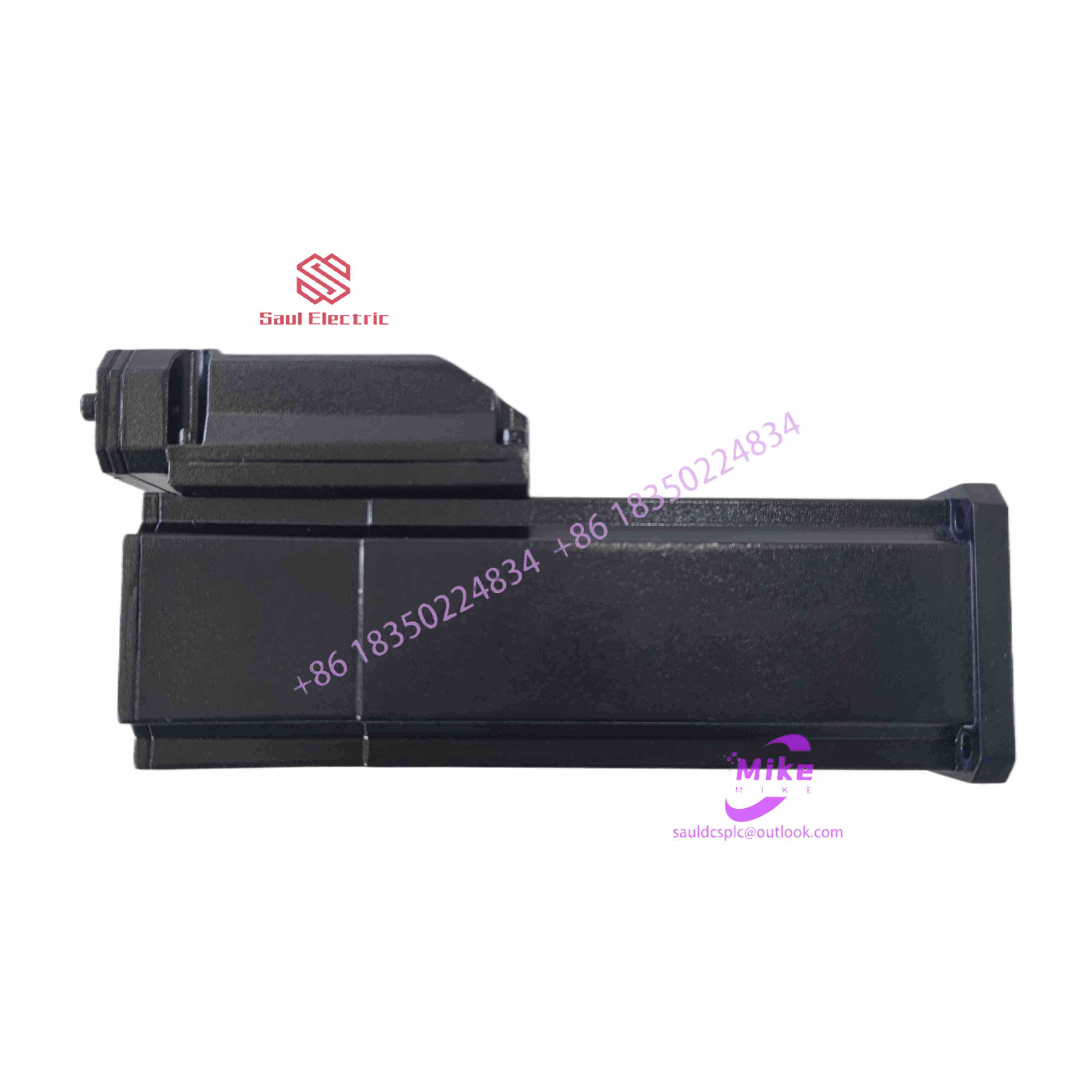

Schneider Elau SM070-60-010-P0-45-S1-B0 AC Servo Motor
SM070-60-010-P0-45-S1-B0 is a compact AC permanent magnet synchronous servo motor launched by ELAU (now Schneider Electric) in Germany. It belongs to the PacDrive intelligent servo product line and is designed for high-precision positioning and high dynamic response scenarios in industrial automation.
Schneider Elau SM070-60-010-P0-45-S1-B0 AC Servo Motor
Interpretation of models paragraph by paragraph: SM represents the servo motor series; 070 represents the flange size 70mm series (B5 installation, hole spacing 85mm); 60 represents the rated speed of 6000rpm; 010 represents the motor length code, corresponding to the torque level of this specification; P0 represents a protection level of IP65, suitable for harsh industrial environments such as dust and splash proof; 45 represents peak torque of 4.5Nm; S1 represents continuous operation working system, B5 flange installation method; S1 also refers to a continuous working mode of operation; B0 represents no built-in brake.
Core parameters: Rated power of approximately 0.4kW (4000rpm operating condition), continuous torque of approximately 2.0Nm, peak torque of 4.5Nm (approximately 2.25 times overload), rated speed of 4000rpm, maximum mechanical speed of 6000rpm, rated current of approximately 2.0A RMS, peak current of approximately 6.0A RMS, torque constant of approximately 0.85Nm/A (20 ℃), rotor moment of inertia of approximately 0.42kg · cm ², belonging to low inertia design, suitable for high dynamic applications. The working temperature range is -20 ℃ to+40 ℃ (some data nominal 0 ℃ to+100 ℃), the insulation level is F (155 ℃), the built-in PTC thermal protection, and the operating temperature is 130 ℃. The motor weighs about 6.0kg, the flange outer diameter is about 70mm, the shaft is a 14mm flat key shaft, the shaft length is about 30mm, and the overall length of the machine is about 190mm (excluding shaft extension).
The encoder is configured as an incremental encoder with magnetic pole signals, high resolution, positioning accuracy of micrometer level, supports instantaneous zeroing, frequency response of up to 300kHz, and achieves millisecond level start stop and high-speed control. The interface is a power and feedback integrated aviation plug, compatible with ELAU MAX-4 series drivers, and supports multiple industrial protocols such as Hiperface, SERCOS fiber optic, CANopen, Modbus, Profibus, EtherCAT, etc. It can be seamlessly integrated with PacDrive C400/C600 controllers.
Product features: High precision closed-loop control, position known upon power on, no need to return to zero; High dynamic response, frequency response of 300kHz, fast start stop without jitter; Compact structure, easy to integrate with flange installation; Modular design, encoder and brake can be optionally replaced, with low maintenance costs; Low operating temperature, high energy efficiency, and support for energy recovery.
Typical applications cover scenarios with clear requirements for accuracy and dynamic response, such as robot joint drive, automated production lines, logistics conveying systems, packaging machinery, CNC machine tool feed axes, electronic manufacturing equipment, etc.
Summary in one sentence: SM070-60-010-P0-45-S1-B0 is ELAU’s 0.4kW class, 4.5Nm peak torque, 6000rpm, IP65 protection, and brake free B5 flange compact servo motor. With an incremental magnetic pole encoder, 300kHz high-frequency response, and deep compatibility with the PacDrive system as its core, it is a mature solution in industrial automation that balances high dynamics and high precision.
