Schneider Electric 140AVI03000 | Factory Sealed & In-Stock PLC Module
Dynamic Product Introduction
Signal inaccuracies, conversion bit-dropouts, and channel-to-channel drift on legacy Schneider Electric Modicon Quantum automation architecture frequently originate from aging analog input circuitry rather than central controller errors. When an older process rack fails to process sensitive bipolar loops or starts throwing conversion alarms, attempting to correct the issue via software scaling edits rarely fixes core hardware aging. Deploying the Schneider Electric Modicon Quantum 140AVI03000 resolves this performance bottleneck directly, swapping in an OEM-spec high-resolution module engineered to restore exact signal measurement and rapid scan timing.
In critical plant maintenance windows, installing this exact replacement I/O module re-establishes normal loop feedback without requiring an expensive, full-scale system or backplane conversion. (Though verifying terminal block wiring, input range jumper mapping, and backplane bus power allocation prior to energization remains essential.) It handles demanding continuous-duty heavy industrial environments reliably, keeping legacy automation infrastructure fully operational.

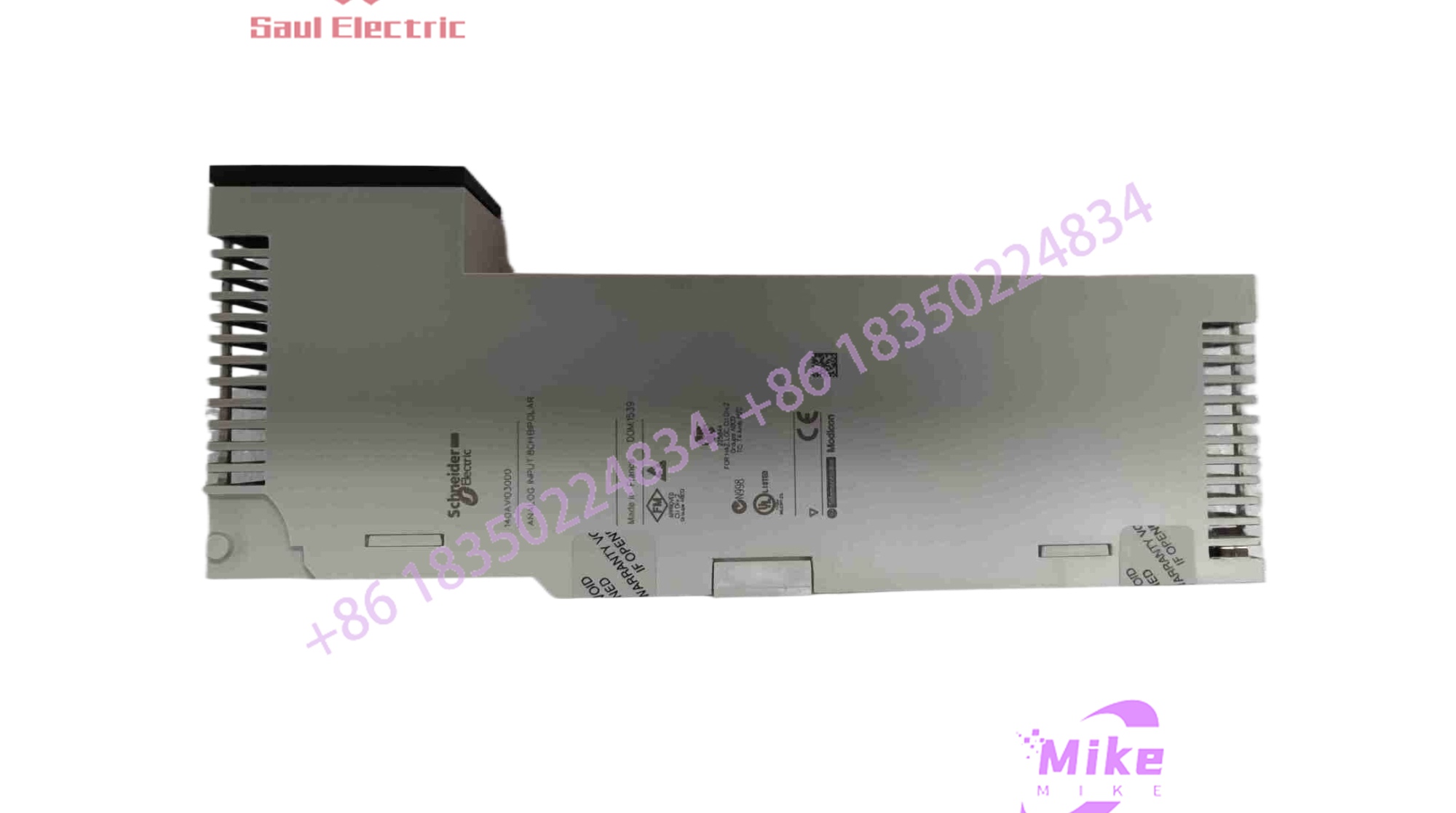

140AVI03000
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | Multirange Analog Input Module |
| Series Compatibility | Schneider Electric Modicon Quantum PAC Platform |
| Number of Inputs | 8 Differential Analog Inputs |
| Input Signal Ranges | Unipolar/Bipolar Voltage (\pm 5V, \pm 10V, 0–5V, 0–10V); Current (0–20mA, \pm 20mA) |
| Resolution | 16 Bits |
| Addressing Requirement | 9 Input Words |
| Bus Current Required | 280 mA |
| Isolation (Channel-to-Bus) | 500 Vrms AC for 60 seconds / 750 VDC |
| Update Time | 10 ms |
| Operating Temperature | 0^\circC to 60^\circC |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring critical PLC and PAC control hardware demands rigorous static protection and bench validation to guarantee absolute measurement precision upon installation.
- Inbound Verification: Incoming multirange analog modules undergo comprehensive serial tracking, OEM label authentication, and anti-counterfeit batch audits against historical manufacturing records.
- Live Simulation: Qualified cards are mounted onto a controlled Quantum test rack to evaluate channel-to-channel linearity, analog-to-digital conversion accuracy across all unipolar/bipolar spans, and backplane register polling.
- Diagnostics: Technicians execute broken-wire loop checks (4–20 mA), over-range voltage sweeps, and thermal soak evaluations to isolate latent component failure risks.
- Final Prep: Removable terminal strip interfaces are chemically cleaned to remove micro-oxidation, and the module is sealed inside heavy-duty multi-layer anti-static barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Input Range Misconfiguration: Mixing up software configuration settings with physical hardware configurations for unipolar versus bipolar voltage/current loops will cause severe scaling errors or reading distortion. Always verify range profiles.
❗ Hot-Swapping Power Protocols: While Quantum I/O modules are designed for hot-swapping under backplane power, failing to isolate live external loop signals prior to unplugging the removable terminal block can cause voltage transients and damage input channels.
❗ Addressing Overlaps: Ensure the input word allocation and rack register map match your Unity Pro or Concept software project structure precisely to prevent communication timeouts and data mapping errors.
Intent-Driven FAQ
Will this 140AVI03000 module integrate directly into my existing Modicon Quantum backplane?
Yes, it is designed as a direct slot-in replacement module compatible with standard Quantum backplanes (2, 3, 4, 6, 10, or 16 slot versions).
Are these legacy modules factory sealed or certified surplus stock?
We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your plant’s compliance needs.
What special diagnostic features are built into this module?
The module features automatic channel status tracking, including broken wire detection for current loops, scale-overtaking alerts, and distinct red/green LED indicators for channel health and bus communication.
What kind of warranty coverage is included with this replacement part?
Every unit is backed by our comprehensive operational warranty, covering electrical component health, conversion accuracy, and functional performance from day one.
