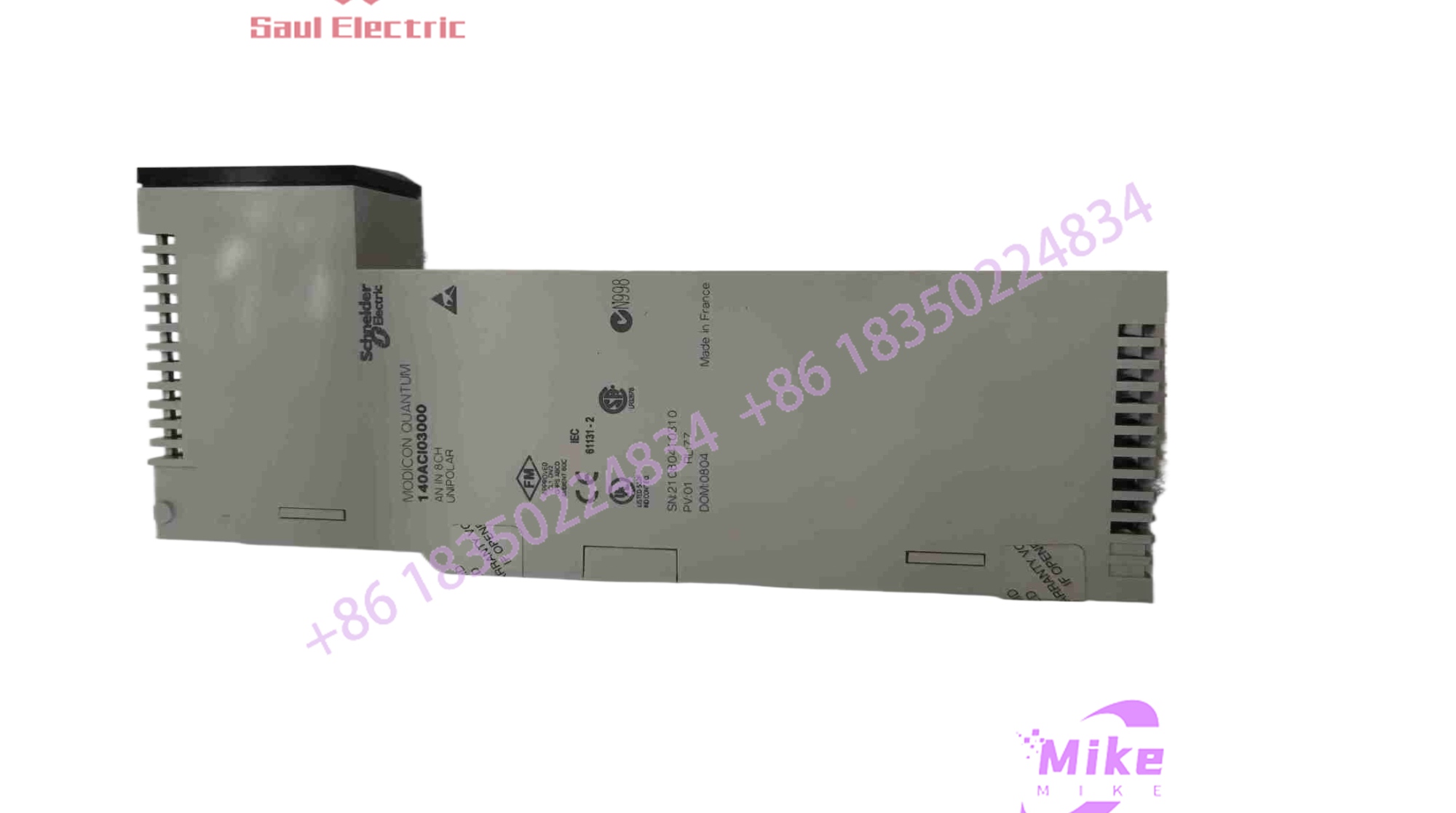

Modicon Quantum 140ACI03000 | Multirange Analog Input Board
Dynamic Product Introduction
Signal drift, channel failure, and unexpected conversion errors on legacy Schneider Electric Modicon Quantum automation systems frequently stem from aging analog input modules rather than central processing faults. When an older process control rack starts throwing conversion alarms, failing to register loop power, or losing signal accuracy across multiple channels, tweaking software configuration parameters rarely resolves underlying component-level hardware aging. Deploying the Schneider Electric Modicon Quantum 140ACI03000 resolves this reliability constraint directly, swapping in an OEM-spec analog card engineered to restore exact measurement precision and scan timing.
In critical industrial maintenance scenarios, installing this exact replacement I/O module re-establishes normal loop monitoring without requiring an expensive, full-scale control system or backplane migration. (Though verifying terminal block wiring, current/voltage jumper mapping, and bus current allocation prior to energization remains essential.) It handles demanding continuous-duty plant environments reliably, keeping legacy automation infrastructure operational.
140ACI03000
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | Multirange Analog Input Module |
| Series Compatibility | Schneider Electric Modicon Quantum PAC Platform |
| Number of Inputs | 8 Differential Analog Inputs |
| Input Signal Ranges | 1 to 5 VDC, 4 to 20 mA |
| Resolution | 12 Bits |
| Input Impedance | > 20 MΩ (Voltage), 250 Ω (Current) |
| Update Time | 5 ms (all channels) |
| Addressing Requirement | 9 Input Words |
| Bus Current Required | 240 mA |
| Isolation (Channel-to-Bus) | 1000 VDC (3000 Vpp for 60 seconds) |
| Operating Temperature | 0^\circC to 60^\circC |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring critical PLC and PAC control hardware demands rigorous static protection and bench validation to guarantee absolute loop accuracy upon installation.
- Inbound Verification: Incoming analog input modules undergo comprehensive serial tracking, OEM label authentication, and anti-counterfeit batch audits against historical manufacturing records.
- Live Simulation: Qualified cards are mounted onto a controlled Quantum test rack to evaluate channel-to-channel linearity, analog-to-digital conversion accuracy, and backplane register polling.
- Diagnostics: Technicians execute current loop fault simulations (broken wire detection), voltage drop sweeps, and thermal soak evaluations to isolate latent component failure risks.
- Final Prep: Removable terminal strip interfaces are cleaned to remove micro-oxidation, and the module is sealed inside heavy-duty multi-layer anti-static barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Incorrect Field Wiring Scaling: Mixing up voltage (1-5V) and current (4-20mA) field wiring loops without aligning configuration parameters will cause inaccurate readings or sensor over-range faults. Always verify loop scale settings against field devices.
❗ Hot-Swapping Power Protocols: While Quantum I/O modules are designed for hot-swapping under backplane power, failing to isolate live external loop power (24VDC loop supplies) prior to unplugging the removable terminal block can cause voltage spikes and damage input channels.
❗ Addressing Overlaps: Ensure the drop allocation and rack register configuration match your Unity Pro or Concept software project structure to prevent communication timeouts and data mapping errors.
Intent-Driven FAQ
Will this 140ACI03000 module integrate directly into my existing Modicon Quantum backplane?
Yes, it is designed as a direct slot-in replacement module compatible with standard Quantum backplanes (2, 3, 4, 6, 10, or 16 slot versions).
Are these legacy modules factory sealed or certified surplus stock?
We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your plant’s compliance needs.
What special diagnostic features are built into this module?
The module features automatic diagnostic monitoring, including broken wire detection for 4–20 mA current loops and undervoltage range detection for 1–5 VDC voltage loops.
What kind of warranty coverage is included with this replacement part?
Every unit is backed by our comprehensive operational warranty, covering electrical component health, conversion accuracy, and functional performance from day one.
