Schneider Electric 140CPU11303 | Factory Sealed & In-Stock PLC CPU
Dynamic Product Introduction
Processor faults, memory checksum errors, and communication lockups on legacy Schneider Electric Modicon Quantum automation architectures frequently stem from aging central processing units or exhausted onboard lithium backup batteries. When an older control rack starts dropping program memory or failing to execute scan cycles reliably, attempting a software reload rarely addresses foundational hardware aging. Deploying the Schneider Electric Modicon Quantum 140CPU11303 resolves this reliability limitation directly, swapping in an OEM-spec processor engineered to restore exact instruction execution timing and network connectivity.
In critical plant maintenance scenarios, installing this exact replacement CPU re-establishes normal rack control without requiring an expensive, full-scale system migration or complete hardware rewrite. (Though verifying executive firmware versions, backup memory configurations, and communication port dipswitches prior to energization remains essential.) It handles demanding legacy industrial environments reliably, keeping older Modicon manufacturing infrastructure fully operational.

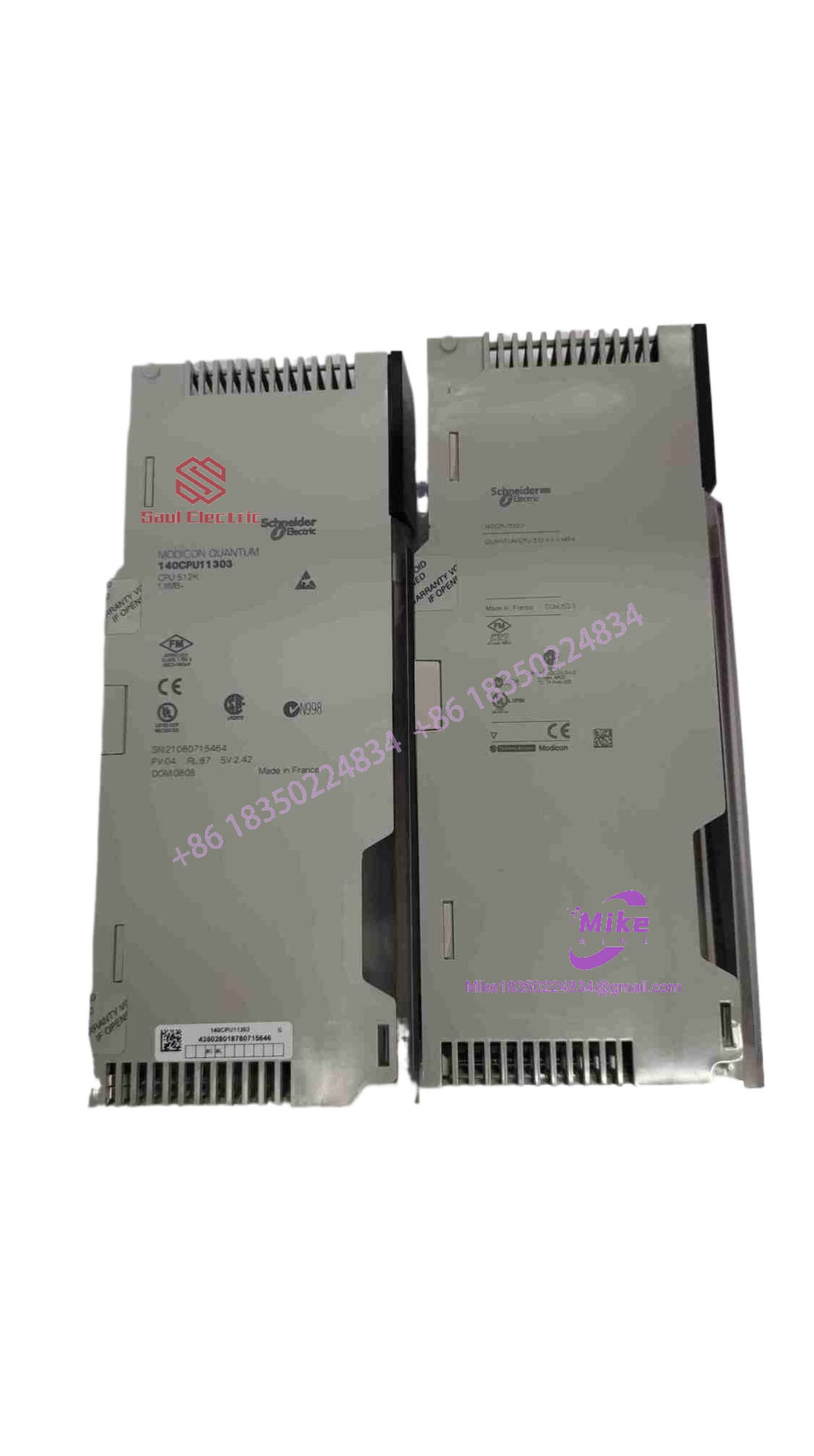

140CPU11303
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | Central Processing Unit (CPU) Module |
| Series Compatibility | Schneider Electric Modicon Quantum PAC Platform |
| Microprocessor Type | Intel 80186 (20 MHz clock frequency) |
| Supported Software | Concept / ProWORX 32 |
| Internal RAM Memory | 368 kB |
| Execution Speed | 0.3 to 1.4 ms per 1K instructions (LL984) |
| Communication Ports | 1x Modbus RS232, 1x Modbus Plus |
| Bus Current Required | 790 mA |
| Battery Backing | Lithium cell (1.2 Ah capacity, ~10-year life) |
| Operating Temperature | 0^\circC to 60^\circC (32^\circF to 140^\circF) |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring critical legacy control hardware demands rigorous communication testing and memory validation to guarantee absolute system stability upon installation.
- Inbound Verification: Incoming CPU modules undergo comprehensive serial tracking, OEM label authentication, and anti-counterfeit batch audits against historical manufacturing ledgers.
- Live Simulation: Qualified processors are mounted onto a controlled Quantum test rack to evaluate backplane register polling, instruction execution speed, and logic scanning integrity.
- Diagnostics: Technicians execute communication port stress tests (Modbus and Modbus Plus), memory retention checks, and watchdog timer verification sweeps to isolate latent component failure risks.
- Final Prep: Connector pins and communication ports are cleaned to remove micro-oxidation, and the module is sealed inside heavy-duty multi-layer anti-static barrier packaging alongside a fresh backup battery state check.
The Field Engineer’s Pitfall Guide
❗ Hot-Swapping Rack Restrictions: Extracting or inserting a CPU module while the Quantum rack backplane is energized risks severe hardware damage, logic corruption, or unexpected plant trips. Always drop main system power before handling.
❗ Program Loss on Battery Failure: If the onboard lithium backup battery is dead or has been removed for an extended period without auxiliary power, stored user logic and register values will be lost. Always upload a backup image prior to module replacement.
❗ Software Platform Dependency: The 140CPU11303 is explicitly designed for legacy Concept or ProWORX 32 application configurations. Attempting to target this processor using newer EcoStruxure Control Expert (Unity Pro) software environments will result in compatibility blocks.
Intent-Driven FAQ
Will this 140CPU11303 module integrate directly into my existing Modicon Quantum backplane?
Yes, it is designed as a direct slot-in CPU module compatible with the primary processor slots on standard Quantum backplanes.
Are these legacy processors factory sealed or certified surplus stock?
We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your plant’s compliance needs.
What communication networks are supported natively on the front panel?
The processor features dedicated physical connections for local serial management via Modbus RS232 and plant-wide industrial networking via Modbus Plus.
What kind of warranty coverage is included with this replacement part?
Every unit is backed by our comprehensive operational warranty, covering electrical component health, communication interface stability, and functional performance from day one.
