Modicon AS-B836-016 | 16-Point Discrete Output Module 12-250VDC
Product Introduction
When a continuous process line drops offline unexpectedly, hunting for obsolete hardware variants can paralyze plant operations. The AS-B836-016 is not a standard generic relay card; it is a heavy-duty, isolated discrete output powerhouse built specifically for legacy Modicon 800-series racks. Designed to slot directly into established architectures without requiring cabinet rewiring, it bridges the operational gap between vintage control logic and demanding field loads.
Managing up to 16 discrete points with an expansive 12 to 250 VDC span, this module delivers a typical ON-state current handling capability ranging from 0.75A at 250VDC up to 1.5A at 48VDC. It features a rapid response time profile (1ms OFF-to-ON, 5ms ON-to-OFF) designed to maintain tight logic execution loops—though your system response may vary depending on backplane loading and cabinet ambient temperature.

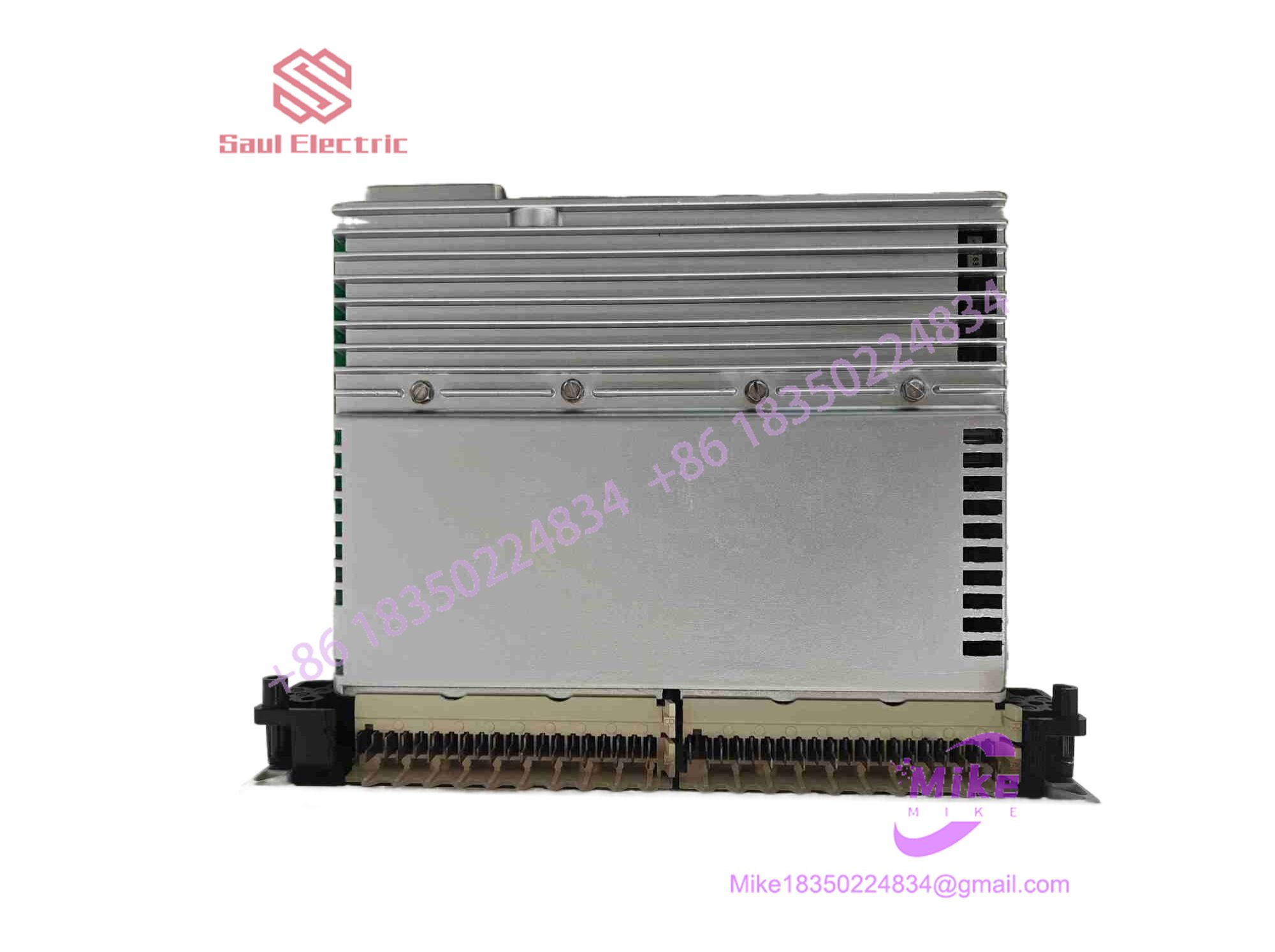

AS-B836-016
Key Technical Specifications
| Parameter | Specification Metric |
| Module Type | Discrete Output (Isolated) |
| Number of Points | 16 discrete channels |
| Operating Voltage | 12 to 250 VDC |
| Groups / Commons | 16 groups (1 point per common) |
| Max ON Current | 0.75A @ 250VDC / 1A @ 125VDC / 1.5A @ 48VDC |
| Surge Current Rating | 5A for 10ms (1 sec repetition rate) |
| Off-State Leakage | 1 mA max @ 12 VDC |
| Switching Speed | 1 ms (OFF-to-ON) / 5 ms (ON-to-OFF) |
| Backplane Power Draw | +5V: 50mA, +4.3V: 603mA |
| Physical Footprint | Single rack slot (~1.16 kg) |
Application Scenarios & Pain Points
- High-Vibration Heavy Industrial Skids: In gas compression packages where constant mechanical resonance destroys standard commercial-grade terminals, the robust isolation boundaries of the AS-B836-016 prevent cross-channel noise and phantom switching.
- Legacy Power Generation Interlocks: A coastal power station kept experiencing nuisance trips on their legacy excitation control loop due to common-mode ground shifts; dropping in this fully isolated 16-point module eliminated ground loop bleed entirely.
- Mixed-Voltage Distributed Panels: When a facility needs a single rack slot to control mixed field actuators ranging from low-level 24VDC solenoids up to heavy 125VDC control valves, the per-point isolation framework handles the varying potentials safely.
QA & Live Testing SOP (Trust Signal)
We treat surplus automation hardware with rigorous engineering scrutiny. Before an AS-B836-016 clears our facility, it goes through an exhaustive bench validation protocol:
- Visual & Optical Inspection: Verified OEM seals, backplane connector pin integrity, and zero signs of conformal coating micro-cracks or capacitor leakage.
- Dynamic Live-Rack Execution: Powered on a dedicated Modicon test rack, subjected to full communication handshakes, and cycled through all 16 channels simultaneously.
- Metrology & Load Check: We place outputs under real resistive loads, verifying voltage drop consistency using calibrated Fluke meters and testing optical isolation barriers against high-pot thresholds.
- ESD Packaging: Sealed in anti-static shielding bags with moisture barrier protection prior to box staging.
Field Engineer’s Pitfall Guide
- ❗ Backplane Power Limits: Do not overlook the +4.3V backplane current draw (approx. 603mA). Populating too many high-draw legacy modules on a single rack power supply will cause rack voltage sag and random watchdog faults.
- ❗ Terminal Block Mismatch: This card relies on precise heavy-duty swing-arm terminal blocks (such as the AS-8535 series). Force-seating an misaligned cable harness will bend gold-plated pins on the module interface.
- ❗ Common Isolation Confusion: Even though there are 16 points, each output features an independent common structure. Jumpering external supplies incorrectly across non-isolated commons will instantly compromise channel isolation.
Intent-Driven FAQ
Can I hot-swap this module into a live Modicon 800-series rack?
No. Older Modicon backplanes and 800-series hardware architectures do not support safe live insertion. Always cut rack power before removing or seating this module to prevent bus driver corruption or arc flash.
Is this unit an original OEM part or a reverse-engineered clone?
This is a genuine legacy Modicon / Schneider Electric module. We source verified surplus and test every unit thoroughly, ensuring absolute hardware register compatibility with your existing program code.
What terminal block model number interfaces with this card?
The AS-B836-016 typically pairs with the standard AS-8535 wiring connector block. Ensure your field termination cables match this footprint before installation.
How does channel isolation protect my control system?
Because each of the 16 outputs features an isolated path with 1 point per common, a high-voltage transient or short circuit on a single field actuator is contained locally, protecting your central processor rack from catastrophic damage.
