ProSoft MVI46-MCM | Modbus Network Interface Module, In Stock
Architect’s Product Breakdown
The ProSoft Technology MVI46-MCM communication model acts as a robust serial gateway engineered to integrate Modbus-enabled field instrumentation, variable frequency drives, and legacy analyzers directly into Allen-Bradley SLC 500 automation architectures. Residing directly in the local or extended 1746 chassis, this hardware handles asynchronous data transfers across the backplane without taxing the main processor with complex serial polling overhead.
Deploying this hardware model into a legacy control panel requires careful attention to backplane power consumption, slot limitations, and physical serial layer wiring. Because industrial environments subject serial communication lines to heavy electrical noise, system architects must verify that all RS-232, RS-422, or RS-485 cables are properly shielded and grounded at one end to prevent packet corruption and data timeouts.

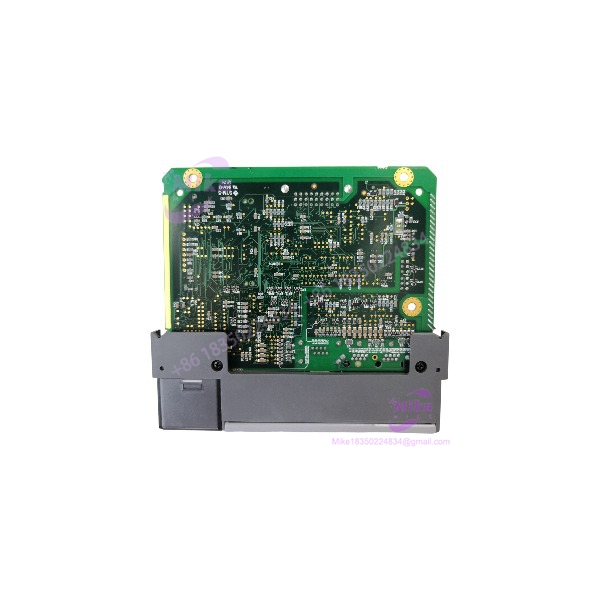

MVI46-MCM
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | ProSoft Technology |
| Model Designation | MVI46-MCM |
| System Compatibility | Rockwell Automation SLC 500 (1746 Backplane, local or extended racks) |
| Backplane Current Load | 800 mA at 5.1 V DC |
| Communication Ports | 1 x RJ45 (RS-232 only) Debug/Config port; 2 x RJ45 RS-232/422/485 Application ports |
| Protocols Supported | Modbus RTU, Modbus ASCII (Master and/or Slave configurations) |
| Data Memory | Up to 5,000 registers |
| Ambient Operating Temperature | 0°C to 60°C |
| Enclosure Rating | IP20 Open-style industrial module |
Field Engineer’s Pitfall Guide
- WARNING: Backplane Slot Power Limitations. Never insert this module into a heavily populated chassis without verifying available 5V DC backplane capacity. Overloading the rack power supply will cause intermittent reboots and fault out the processor.
- WARNING: Serial Port Jumper and Wiring Mismatches. Double-check the physical layer configuration (RS-232, RS-422, or RS-485) before landing field wiring. Connecting high-voltage differential lines to an improperly configured port will burn out onboard transceivers.
- WARNING: Extended vs. Remote Rack Restrictions. Ensure the module is installed only in a local or extended rack configuration; this specific model does not support placement in remote I/O chassis loops.
QA & Testing SOP
- Visual & Origin Verification: Inspect the molded circuit board housing for physical defects, verify factory serial tracking labels, and check backplane connector pins for oxidation or bending.
- Chassis Seating Test: Mount the replacement model into an isolated SLC 500 test bench rack and power up the backplane to verify normal LED status initialization.
- Port & Loopback Verification: Connect a serial loopback tool to communication ports to test packet integrity and confirm error-free Modbus command execution.
- Packaging: Seal in heavy-duty anti-static shielding material and pack with dense anti-static foam inside a rigid outer carton.
Technical FAQ
Can both application ports act as Modbus Masters simultaneously?
Yes. Each of the dual application ports on this communication model can be configured independently as either a Modbus Master or a Modbus Slave.
Does the MVI46-MCM require ladder logic programming for basic operation?
Yes, ladder logic data transfer blocks are required within the SLC processor program to move data back and forth between the module memory registers and processor data tables.
What software is required to configure the module parameters?
Configuration files are typically set up via terminal emulation software or ProSoft configuration utilities downloaded through the dedicated debug/configuration port.
Can this module be used with ControlLogix or CompactLogix systems?
No. The MVI46-MCM is specifically designed for the 1746 backplane (SLC 500 family); different module series (such as MVI56 or MVI68) are required for ControlLogix or CompactLogix architectures.
