ProSoft 4301-MBP-DFCM | Modbus Plus to DF1 Master/Slave Gateway
Product Introduction
When legacy industrial architecture requires bridging high-speed Modbus Plus networks with serial DF1 devices, trying to write custom PLC routines can create severe data bottlenecks and configuration errors. The ProSoft 4301-MBP-DFCM is not a standard rack-mounted I/O card; it is a dedicated standalone protocol gateway built on the reliable ProLinx communication platform. It acts as an intelligent translator to move register data cleanly between isolated automation networks.
Built into a compact modular housing format designed for standard industrial deployment, this unit handles complex multi-port serial routing without taxing the host PLC processor. It operates reliably under harsh ambient conditions—withstanding standard industrial panel temperatures up to 50^\circC—while maintaining stable data synchronization. If you are expanding legacy control networks or integrating foreign serial hardware into a Modbus Plus architecture, this gateway drops right into your communication loop.

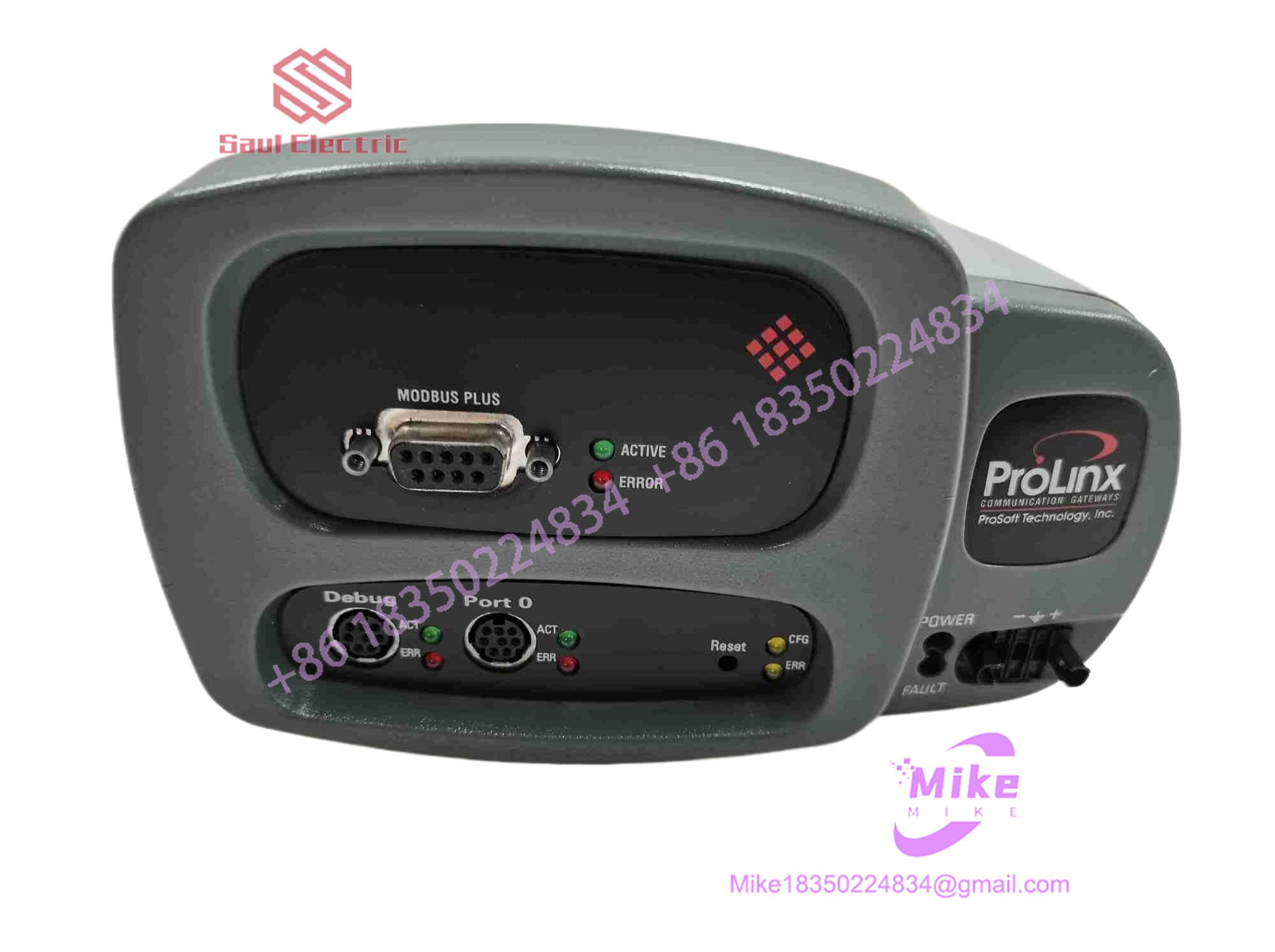

4301-MBP-DFCM
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | Standalone Protocol Gateway Module |
| Product Series | ProSoft ProLinx Communication Family |
| Primary Network Port | Modbus Plus (DB-9 Female connection) |
| Serial Communication Ports | Configurable DF1 Master/Slave serial interfaces |
| Supported Protocols | Modbus Plus, DF1 Full-Duplex / Half-Duplex |
| Enclosure / Mounting | Industrial modular packaging for backplate or DIN rail installation |
| Diagnostic Indicators | Front-panel LED status array for power, network, and port health |
| Operating Temperature | 0^\circC to +50^\circC standard industrial range |
Application Scenarios & Pain Points
- Legacy Oil & Gas Pipeline SCADA Integration: Older telemetry stations rely heavily on Modbus Plus backbones that must pull live data from serial DF1 flow computers and RTUs. The 4301-MBP-DFCM handles protocol conversion independently, keeping the main control processor free from polling overhead.
- Petrochemical Plant Drive Interfacing: Connecting third-party variable speed drives using DF1 serial protocols to a legacy Modbus Plus control network often exposes communication incompatibility. This gateway maps registers transparently between both networks.
- Power Generation Auxiliary System Updates: Upgrading balance-of-plant skids requires reliable data concentration across disparate serial instruments. This standalone module provides a robust bridge without requiring a complete control system rip-and-replace.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse legacy communication gateways without verifying port and translation integrity; every 4301-MBP-DFCM unit goes through our rigorous bench protocol:
- Visual & Port Audit: Inspected under magnification for pin stability on the DB-9 Modbus Plus connector, serial port health, and complete absence of housing stress or internal component wear.
- Dynamic Network Loop Verification: Connected to a live communication test rig to verify that the Modbus Plus node handshakes correctly and that data packets map cleanly across the DF1 serial channels.
- Protocol Translation Stress Test: Subjected to continuous polling simulations to ensure zero packet drop, buffer overflow, or register mismatch during high-traffic execution.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier bags and packed with high-density structural foam to prevent transit vibration damage.
Field Engineer’s Pitfall Guide
- ❗ Modbus Plus Cable Termination: Ensure your Modbus Plus trunk line features proper active terminators at both physical ends; un-terminated or poorly shielded twinax cable will introduce severe network token-passing errors.
- ❗ DF1 Handshaking and Baud Mismatches: Verify that your serial port configurations (baud rate, parity, stop bits, and DF1 node address) match the connected field device precisely before powering up the link.
- ❗ Power Supply Voltage Stability: Fluctuating 24VDC auxiliary power rails can cause intermittent gateway reboots, dropping network tokens and triggering system-wide communication alarms.
Intent-Driven FAQ
Is the ProSoft 4301-MBP-DFCM a direct replacement for 5301 series gateways?
While sharing similar ProLinx protocol translation capabilities, form factors and specific backplane or power configurations can vary between series generations. Always check your exact part number and manual requirements before swapping units.
Does this gateway require specialized software for configuration?
Yes, ProLinx modules typically utilize ProSoft Configuration Builder (PCB) software alongside a serial configuration cable to map internal database registers between the Modbus Plus and DF1 networks.
What causes a persistent network fault LED on startup?
A lit fault indicator usually indicates an incorrect Modbus Plus node address conflict on the network, an unassigned database data map, or a failed serial handshake parameter configuration.
Can the serial ports operate simultaneously in Master and Slave modes?
Yes. The gateway’s independent serial ports can be configured separately to act as DF1 masters querying downstream devices or as slaves responding to external polling requests.
What kind of warranty covers this surplus communication gateway?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to verify hardware communication stability.
