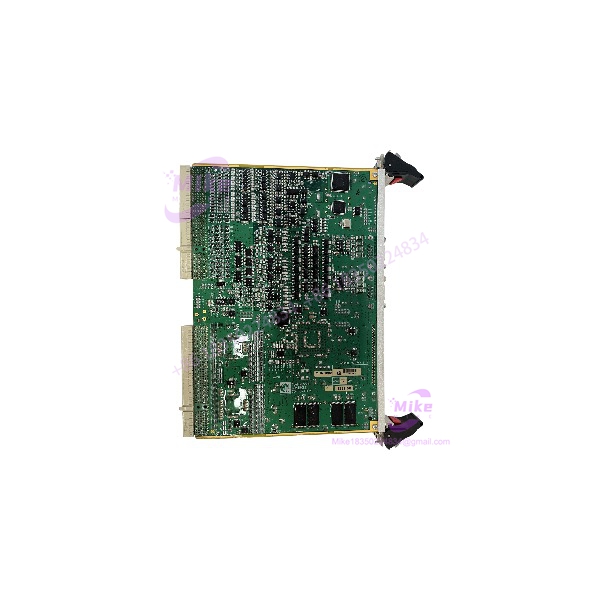

Compressor Controls IOC-555-D | Series 5 I/O Processor Card
Product Introduction
A replacement card for a legacy compressor control system is not just another circuit-board purchase. The part must match the installed architecture, interface correctly with the field wiring, and operate within the system’s established configuration.
The COMPRESSOR CONTROLS CORP IOC-555-D is identified as an I/O processor card used in CCC Series 5 Vanguard duplex applications. Published procurement documentation lists its I/O limits as 22 analog inputs, 6 analog outputs, 16 digital inputs, 14 digital outputs, and 6 frequency inputs. These limits provide a useful starting point for spare-part qualification, but they should not be interpreted as a guarantee that every channel is available or configured identically in every installed system.
For maintenance teams supporting installed CCC equipment, matching the complete model and revision is essential. Confirm the card’s nameplate, hardware revision, and associated transition hardware against the site documentation before approving it as a drop-in replacement.
IOC-555-D
Key Technical Specifications
- Manufacturer: Compressor Controls Corporation (CCC)
- Model: IOC-555-D
- Product Classification: I/O processor card
- Control Platform: Series 5 Vanguard
- Application Configuration: Duplex applications
- Analog Input Limit: 22 AI
- Analog Output Limit: 6 AO
- Digital Input Limit: 16 DI
- Digital Output Limit: 14 DO
- Frequency Input Limit: 6 FI
- Associated Part Number Reference: 17-550555-001; confirm against the actual nameplate and revision.
- Installation Interface: Verify chassis slot, transition card, and field termination arrangement against the site-specific CCC documentation.
- Power Requirements: Exact card-level requirements require confirmation from the applicable CCC documentation.
- Firmware/Configuration Requirements: Confirm compatibility with the installed Series 5 system and site configuration.
- Operating Temperature: Not independently verified for this exact card revision.
- Dimensions and Weight: Confirm from the actual unit or applicable CCC drawing.
The I/O values above represent documented limits, not a promise of a specific configured channel allocation or universal interchangeability. Do not use unverified supplier specifications as a substitute for the original CCC technical documentation.
Global Sourcing & Live-Test SOP
For a legacy control-system card such as the IOC-555-D, incoming inspection and traceability are central to responsible procurement. The following is a recommended qualification procedure—not a claim that this particular unit has already been tested.
Incoming Verification
- Confirm the complete IOC-555-D model designation and any additional part number on the nameplate.
- Record the serial number, hardware revision, and visible manufacturing identifiers.
- Inspect the PCB, connectors, edge contacts, components, and mounting features for damage, corrosion, contamination, or prior repair.
- Compare the received card against approved reference photographs or the removed unit.
Authenticity and Traceability
- Record the supplier, purchase order, date received, and stated condition.
- Photograph the nameplate and both sides of the card.
- Review any available chain-of-custody, service, or refurbishment records.
- Flag inconsistent labels, altered markings, or unexplained revision differences for engineering review.
Functional Qualification
- Test only in an approved CCC-compatible test setup or under an authorized maintenance procedure.
- Verify card recognition and diagnostic status using the applicable system tools.
- Where supported, validate I/O behavior against the approved test plan and known-good interface hardware.
- Do not connect field outputs to operating equipment during bench qualification unless the test procedure specifically authorizes it.
Extended Run and Diagnostics
- Where suitable test equipment and procedures are available, perform an extended operating run under controlled conditions.
- Record diagnostic results, observed faults, test duration, and environmental conditions.
- A 24-hour heat run may be included in the qualification plan when appropriate; it is not a substitute for system-level validation.
Configuration and Packaging
- Record firmware or configuration identifiers when accessible and applicable.
- Document any deviations from the reference unit.
- Protect the card using ESD-safe packaging and suitable mechanical protection.
- Include inspection and test records with the shipment when those services have actually been completed.
Field Engineer’s Pitfall Guide
- ❗ Do not assume every IOC-555-D is configured identically. Confirm hardware revision, firmware compatibility, and the site’s approved replacement criteria before installation.
- ❗ Do not treat the published I/O limits as a field-wiring map. Verify signal types, channel assignments, transition hardware, and terminal references against the applicable CCC drawings.
- ❗ Do not assume hot-swap capability. Before removing or inserting the , follow the system-specific maintenance procedure and establish the required shutdown, isolation, and redundancy conditions.
Intent-Driven FAQ
Q1: What is the COMPRESSOR CONTROLS CORP ?
The is an I/O processor card identified for CCC Series 5 Vanguard duplex applications.
Q2: Is the suitable for a Series 5 Vanguard replacement?
It is associated with that platform, but suitability for a specific installation depends on hardware revision, system configuration, and the approved replacement documentation.
Q3: What I/O capacity is associated with the ?
Published procurement documentation lists limits of 22 analog inputs, 6 analog outputs, 16 digital inputs, 14 digital outputs, and 6 frequency inputs. Confirm the installed configuration before relying on these limits for application planning.
Q4: Is the hot-swappable?
Do not assume so. Follow the applicable CCC maintenance procedure and site safety requirements before removing or inserting the card.
Q5: Does the require specific firmware or configuration?
Compatibility should be verified against the installed Series 5 system. Confirm applicable firmware, configuration, and hardware revision requirements with the site documentation or CCC support.
Q6: Is this part obsolete?
Its association with a legacy Series 5 Vanguard platform makes lifecycle and support status important procurement checks. Current OEM availability and support status should be confirmed directly with CCC.
Q7: Does the listing guarantee a tested or warrantied unit?
No. Testing, warranty coverage, and supplied accessories must be confirmed from the actual seller’s terms and the specific unit’s inspection records. Do not infer these from the model number alone.
