SUPCON Module COM741-S01

Description

The SUPCON (Zhejiang University SUPCON) COM741-S01 is an 8-channel serial communication master station module designed for the ECS-700 system, featuring multi-protocol support, high device-loading capacity, redundant design, and industrial-grade protection. It is widely used in industrial automation for equipment integration and monitoring. Below is a detailed introduction:

I. Core Functions

1. Multi-Protocol Master Station Support
   • Primarily functions as a Modbus RTU master station, enabling connectivity with intelligent instruments, frequency converters, PLCs, and other devices that support the standard Modbus RTU protocol.
   • Each of the 4 serial ports can be independently configured as RS-232 or RS-485 via base jumper settings or software configuration, accommodating diverse device requirements.

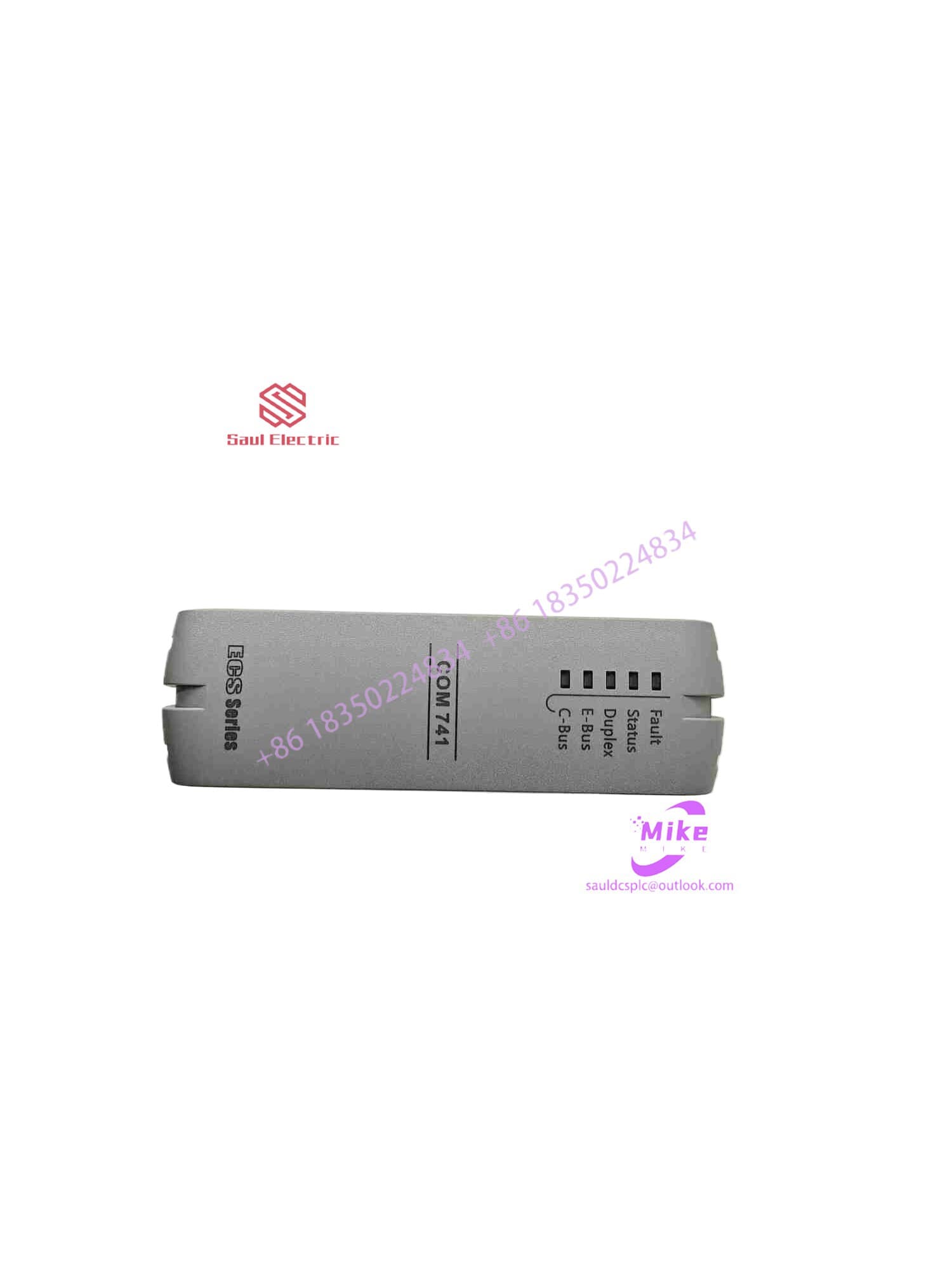

SUPCON Module COM741-S01

1. High Device-Loading Capacity
   • A single module supports up to 64 slave devices (achieved through extended I/O bus integration), meeting the demands of large-scale equipment networks.
   • Each serial port can independently connect up to 32 slave devices, facilitating complex system integration.
2. Redundancy and Fault Tolerance
   • Dual-Network Redundancy: Equipped with dual E-Bus Ethernet interfaces for automatic failover in case of a single-network failure, ensuring uninterrupted communication.
   • Hot-Standby Redundancy: Supports 1:1 module-level redundancy with millisecond-level seamless switching, enhancing system reliability.
   • Self-Diagnostic Capabilities: Real-time status monitoring via LED indicators (e.g., Fault, Status, Duplex) for quick identification of issues.
3. Industrial-Grade Protection
   • Channel Isolation: Electrical isolation between serial ports for strong anti-interference performance.
   • Surge Protection: Safeguards against voltage surges to prevent equipment damage.
   • Wide Temperature Range: Operates in environments from -20°C to 70°C, suitable for harsh industrial conditions.
   • EMC Compliance: Meets Industrial Class III electromagnetic compatibility standards for stable operation.

II. Technical Specifications

• Interface Types: 4 x RS-232/RS-485 configurable serial ports (via base jumper or software).
• Communication Protocols: Modbus RTU (master mode), with support for custom protocol extensions.
• Device-Loading Capacity: Up to 32 slave devices per serial port (total 64 via extended I/O bus).
• Redundancy Modes: Dual E-Bus Ethernet + 1:1 module hot-standby.
• Status Indicators: Fault (red), Status (green), Duplex (green), E-Bus (green), C-Bus (green) LEDs.
• Operating Temperature: -20°C to 70°C (industrial-grade wide temperature).
• Protection Features: Channel isolation, surge protection, Industrial Class III EMC compliance.

III. Application Scenarios

1. Process Industry Integration
   • Connects Modbus-compatible instruments, frequency converters, and PLCs in sectors like chemicals, power generation, and metallurgy for data acquisition and control.
2. Legacy System Upgrades
   • Facilitates cost-effective modernization by retaining existing serial devices while integrating them into the ECS-700 system.
3. Unified Monitoring of Multi-Vendor Equipment
   • Enables protocol conversion and centralized access for devices from different manufacturers, simplifying system architecture.

IV. Product Advantages

1. High Reliability
   • Redundant design (network + module) and industrial-grade protection ensure long-term stable operation.
2. Scalable Flexibility
   • Independently configurable serial ports (RS-232/RS-485) adapt to diverse device interfaces.
3. User-Friendly Operation
   • Simplified parameter setup, command configuration, and compilation via the ECS-700 system’s configuration software.
4. Cost Efficiency
   • High device-loading capacity reduces the number of modules required, lowering total system costs.
