NI PXI-6052E | 16-Bit 333 kS/s PXI Multifunction DAQ Module
Dynamic Product Introduction
Automated test benches, laboratory data logging rigs, and process control validation platforms often require simultaneous acquisition of analog sensor voltages, generation of control stimuli, and digital handshaking. Using separate discrete instruments for each task consumes excessive rack space and creates complex timing synchronization hurdles. The National Instruments PXI-6052E multifunction DAQ module solves this integration challenge by packing high-resolution analog and digital input/output subsystems into a single standard 3U PXI slot.
Engineered around NI’s robust E-Series architecture, the PXI-6052E delivers 16-bit analog-to-digital conversion across 16 channels at sampling rates up to 333 kS/s, supported by onboard NI-PGIA (programmable gain instrumentation amplifier) signal conditioning. (Honestly, having onboard calibration and flexible software-selectable voltage ranges makes interfacing thermocouples, pressure transducers, and tachometers straightforward.) Featuring integrated timing, triggering, and RTSI bus connectivity for multi-module synchronization, the PXI-6052E remains a reliable workhorse for general-purpose testing—though long-term measurement accuracy depends entirely on regular calibration maintenance.

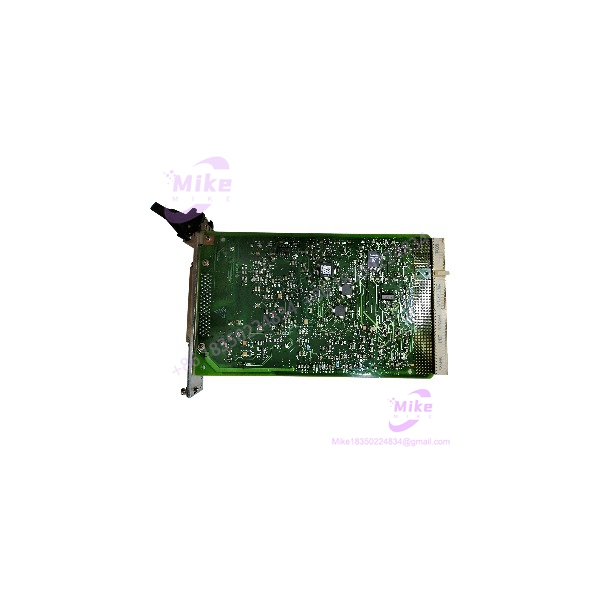

PXI-6052E
Key Technical Specifications
- Manufacturer & System Platform: National Instruments (NI) / PXI E-Series DAQ Architecture
- Module Part Number: PXI-6052E / 778668-01 / 183675F-01
- Analog Inputs: 16 single-ended or 8 differential channels
- ADC Resolution: 16 bits (Successive Approximation Register ADC)
- Maximum Sampling Rate: 333 kS/s aggregate
- Analog Input Ranges: Software-selectable ranges from \pm 0.05 V to \pm 10 V
- Analog Outputs: 2 channels, 16-bit resolution, 1 kS/s update rate, \pm 10 V output range
- Digital I/O: 8 TTL/CMOS digital I/O lines
- Counter/Timers: Two 24-bit, 20 MHz general-purpose counter/timers
- Front Panel Connectors: 68-pin high-density SCSI-type connector
- Operating Ambient Temperature: 0°C to +55°C (32°F to 131°F) continuous operational envelope
- Dimensions & Weight: Standard 3U PXI single-slot module, approximately 0.23 kg (0.51 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market or surplus DAQ hardware requires rigorous electrical and functional verification before integrating units into active test cells. Every NI PXI-6052E module entering our inventory undergoes a strict five-stage bench qualification process:
- Inbound Visual & Connector Inspection: Serial numbers and PCB revision stamps are cross-referenced against NI manufacturing databases. We inspect the 68-pin front SCSI connector for bent or pushed-in pins and check board edge connectors for gold-plating wear.
- Live PXI Rack Simulation: The PXI-6052E module is inserted into an NI PXI-1033 or PXIe-1082 test chassis connected to a development PC running NI-DAQmx and LabVIEW.
- Analog & Digital Calibration Sweep: Using a precision calibrator (such as a Fluke 5500A) connected via a shielded 68-pin cable and terminal block, we inject known DC and AC voltages across all input channels. We verify ADC linearity, offset stability, and programmable gain accuracy across all range settings.
- Output & Counter Validation: Analog output channels are verified for voltage swing stability (\pm 10 V), and counter/timer pins are tested for frequency generation and edge counting.
- Final Prep: Non-volatile calibration EEPROM data is verified against factory baselines, protective connector caps are fitted, and the PXI-6052E module is sealed inside heavy-duty anti-static moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Exceeding Maximum Working Voltage Limits on Analog Inputs: Never apply voltages exceeding the maximum rated common-mode or channel-to-earth voltage limits (typically \pm 11 V powered on) to the analog input terminals. Over-voltage conditions can damage the multiplexer and input amplifier staging, corrupting adjacent channel readings.
❗ Failing to Match Signal Ground References (Single-Ended vs. Differential): When wiring single-ended analog inputs, ensure your signal sources share a common ground reference with the DAQ chassis. Using single-ended mode with floating signal sources introduces severe ground loop noise and pickup; switch to differential measurement mode when dealing with ungrounded sensors.
❗ Unsecured 68-Pin Shielded Cabling Causing Intermittent Errors: Always fully tighten the retaining thumbscrews on the 68-pin front connector cable assembly. Micro-vibrations in industrial test environments will cause loose connectors to lose pin contact, resulting in intermittent open-circuit readings and missing data packets in DAQmx.
Intent-Driven FAQ
Q: Can the PXI-6052E acquire analog inputs and update analog outputs simultaneously? Yes. The PXI-6052E is a true multifunction DAQ module featuring independent hardware subsystems for analog inputs, analog outputs, digital I/O, and counters, allowing simultaneous execution of measurement and control tasks.
Q: What cable and terminal block do I need to connect field signals to the PXI-6052E? Because the PXI-6052E utilizes a 68-pin SCSI front connector, you typically use an NI SH68-68-EIA shielded cable paired with a screw terminal accessory like the NI CB-68LP or SCB-68 to break out signals cleanly.
Q: What software driver is required to operate the PXI-6052E in a modern operating system? The PXI-6052E is controlled using the NI-DAQmx driver software. It provides full API support for development environments including LabVIEW, LabWindows/CVI, C#, Python, and MATLAB.
Q: Is the PXI-6052E compatible with hybrid PXI Express (PXIe) chassis slots? Yes. Like most 3U E-Series PXI modules, the PXI-6052E is electrically and mechanically forward-compatible with hybrid PXIe chassis slots, ensuring seamless operation in both legacy PXI and modern PXIe test racks.
Q: What indicates a hardware failure during an NI-DAQmx self-test? If an NI-DAQmx self-test fails, it typically points to an onboard reference voltage drift, an EEPROM communication error, or damage to the analog input multiplexer resulting from an over-voltage transient in the field.
