NI cFP-AIO-600 | 4-Channel Analog Input & 4-Channel Analog Output Quantified Spec
Dynamic Product Introduction
Traditional multi-card drop configurations often waste precious rack space when applications demand an even split of control loops and measurement points. The cFP-AIO-600 bypasses this constraint by packing four analog inputs and four analog outputs into a single, highly dense footprint. By performing onboard scaling and linearization, the cFP-AIO-600 unloads raw math processing from the master controller while directly translating voltage and current streams into clean engineering units.
Maintaining legacy process loops without redesigning control panels relies heavily on dropping in hardware like the cFP-AIO-600 to interface smoothly with older terminal bases. Whether tracking 4-20 mA current loops from pressure transmitters or adjusting proportional valve positions, this cFP-AIO-600 unit delivers deterministic throughput with minimal conversion jitter.

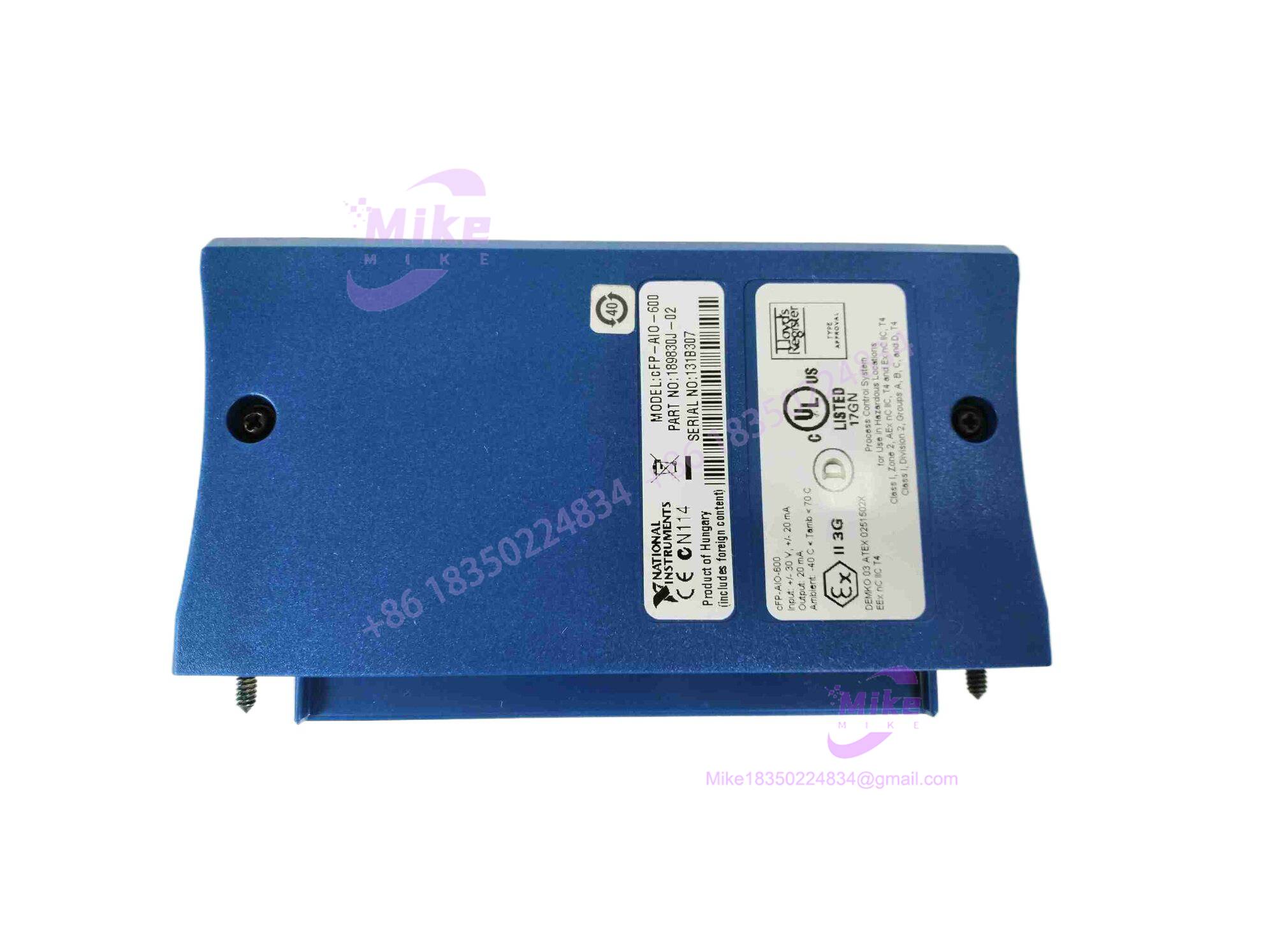

CFP-AIO-600
Key Technical Specifications
| Core Parameter | Technical Specification |
| Analog Inputs | 4 channels (0 to 30 V, 0 to 20 mA, or 4 to 20 mA) |
| Analog Outputs | 4 channels (0 to 20 mA or 4 to 20 mA current loops) |
| Converter Resolution | 12-bit DAC / ADC |
| Hardware Update Rate | 1.7 kHz aggregate update rate |
| Isolation Voltage | 2,300 Vrms optical bank isolation |
| Power Requirements | 600 mW from backplane; external 10 to 30 VDC for output loops |
| Diagnostic Features | Onboard open current loop detection with LED indicators |
| Operating Temperature | -40 °C to 70 °C |
| Vibration & Shock | 5 grms random vibration, 50 g half-sine shock |
| Part Number | 777318-600 |
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing aging or surplus industrial hardware demands rigorous verification to prevent unexpected field failures. Every secondary-market cFP-AIO-600 module passes through a strict testing workflow:
- Inbound Verification: Inspectors check anti-static packaging, examine laser-etched serial numbers against factory databases, and confirm the absence of pin corrosion on the backplane connector interface.
- Live Simulation: The is slotted onto an active Compact FieldPoint backplane test rig powered by a regulated 24 VDC industrial supply.
- Diagnostics: Technicians inject calibrated millivolt and milliamp signals into the input channels while monitoring output current sinks with a high-precision multimeter. Open-loop error flags and hardware update speeds are verified under a 24-hour thermal soak cycle.
- Final Prep: Units are cleared of transient register errors, assigned an updated QC tracking tag, and heat-sealed in moisture-barrier ESD bags.
The Field Engineer’s Pitfall Guide
- ❗ Current Loop Power Misunderstandings: Failing to supply an adequate external 10 to 30 VDC power source to the output circuit will cause output channels to collapse under load. (—though the internal diagnostics will flag an open loop immediately.) I’ve seen plant technicians spend hours troubleshooting software scaling when the actual root cause was a tripped auxiliary fuse on the loop power supply.
- ❗ Terminal Base Keying Errors: Forcing the onto an incorrectly keyed terminal block can bend backplane pins. Always verify mechanical key positions before applying torque to the mounting screws.
- ❗ Common-Mode Isolation Limits: Assuming absolute channel-to-channel isolation between inputs and outputs on the invites ground loop disasters. Remember that while the bank features robust optical isolation from the system bus, the four output channels share a common return path.
Intent-Driven FAQ
Will swapping a faulty cFP- module require recompiling my LabVIEW project?
No. Because configuration data and channel assignments are handled via the host system’s Measurement & Automation Explorer (MAX) and project environment, replacing a physical module with an identical part number requires no logic code modifications.
How does the cFP- indicate a broken field wire or open current loop?
Each output channel on the incorporates dedicated monitoring circuitry linked to front-panel LED indicators and software status flags, allowing control systems to instantly detect open 4-20 mA loops.
Can I mix voltage measurements and current loops simultaneously across the four input channels?
Yes. The input channels on the are individually configurable through software, allowing you to run voltage transmitters on some channels while reading 4-20 mA loops on others.
What is the advantage of sourcing a surplus cFP- over upgrading the entire rack architecture?
Retaining the legacy Compact FieldPoint chassis by utilizing a verified surplus saves thousands in engineering overhead, rewiring costs, and costly plant downtime associated with full-system migrations.
What kind of warranty accompanies a pre-owned or surplus cFP- unit?
Reputable industrial automation distributors typically back verified surplus modules with a comprehensive 1-year or 2-year operational warranty covering component integrity.
