National Instruments PCI-6229 | 32-Channel 16-Bit M-Series DAQ Specs
Architect’s Product Breakdown
The National Instruments PCI-6229 serves as a high-density workhorse within the M-Series multifunction DAQ family, designed for PCI-based industrial automation and automated test equipment (ATE) systems that demand high I/O channel density. Integrating 32 single-ended (16 differential) analog inputs alongside 4 analog outputs and 48 digital I/O lines, this hardware model enables complex signal routing across a single expansion card. Driven by NI-STC2 system timing control and NI-MCal onboard self-calibration technology, the module delivers tight synchronization and high temperature stability across varying factory ambient conditions.
Deploying or replacing this model in an industrial rackmount PC requires careful attention to connector pinout topologies and software driver mappings. Because the board features dual 68-pin VHDCI connectors (Connector 0 and Connector 1), engineers must ensure that signal line harnesses are properly mapped in the NI-DAQmx environment to match physical terminal block assignments. Omitting proper cable shielding on high-density analog runs or confusing connector assignments between ports can introduce cross-talk noise and signal degradation across high-speed acquisition tasks.

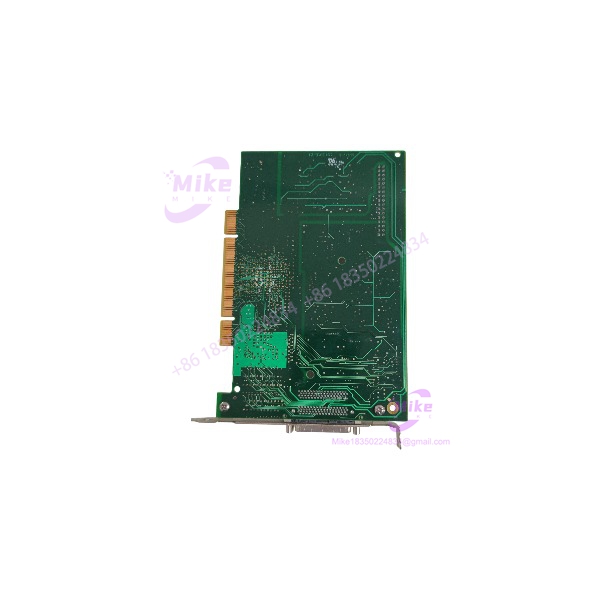

PCI-6229
Key Technical Specifications
- Manufacturer: National Instruments (NI)
- Product Category: High-Density Multifunction Data Acquisition (DAQ) Board
- Part Number / Catalog No.: PCI-6229 (779054-01 / 191300x-02)
- Analog Inputs: 32 Single-Ended / 16 Differential channels
- ADC Resolution: 16-bit
- Maximum Sampling Rate: 250 kS/s (single channel or aggregate)
- Input Voltage Ranges: Software-selectable from \pm 0.2 V to \pm 10 V
- Analog Outputs: 4 channels (16-bit resolution, up to 833 kS/s)
- Digital I/O Lines: 48 TTL/CMOS-compatible bidirectional lines (up to 1 MHz clocked DIO)
- Counter/Timers: 2 x 32-bit counters (up to 80 MHz clock source)
- Bus Architecture: Standard PCI 32-bit bus interface (5V/3.3V universal keying)
- I/O Connectors: Dual 68-pin female VHDCI connectors (Connector 0 and Connector 1)
- Operating Temperature Range: 0°C to +55°C
- Weight: Approximately 125 g (0.28 lb)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCI-6229 card while the host computer is powered on. Live hot-plugging in standard PCI expansion slots risks shorting +5V and +12V power rails, causing fatal damage to the host motherboard and board-level multiplexer ICs.
- Mismatched VHDCI Connector Cabling: This high-density model utilizes dual 68-pin VHDCI connectors. Reversing cable connections between Connector 0 (carrying primary AI/AO signals) and Connector 1 (carrying secondary DIO/AI signals) will result in missing channels or signal mapping errors in NI-DAQmx.
- Grounding Loops on High-Channel-Count Runs: Running 32 single-ended channels across long unshielded cable harnesses in electrically noisy environments creates common-mode ground loops. Use differential terminal configurations or shielded twisted-pair cables (such as SHC68-68-EPM) to maintain clean 16-bit signal resolution.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm clean gold-finger edge connectors, undamaged surface-mount capacitors/resistors, intact PCB traces, and authentic OEM labeling.
- Live Test Bench Environment: Measurement cards are seated in a dedicated industrial PCI test chassis running validated NI-DAQmx driver suites and NI Measurement & Automation Explorer (MAX) to perform self-tests and verify bus register integrity.
- Multi-Channel Loopback & Calibration Diagnostics: Technicians route analog outputs across all 32 analog input channels, verifying full-scale sweeps (\pm 10 V), 16-bit conversion accuracy, digital line bit toggling across all 48 DIO channels, and counter timing functions.
- Anti-Static Packaging: Post-testing units are sealed inside conductive ESD shielding bags and cushioned with high-density protective foam to prevent electrostatic discharge during transport.
Technical FAQ
Can I hot-swap the PCI-6229 card while the host computer is energized?
No. Standard PCI expansion slots do not support live hot-swapping. Always power down the host computer completely before installing or servicing this board.
Why does this model feature two 68-pin VHDCI connectors?
Due to the high channel count (32 analog inputs, 4 analog outputs, and 48 digital I/O lines), the I/O signals are divided across two 68-pin connectors (Connector 0 and Connector 1) to fit standard PCI bracket dimensions.
What terminal block accessories are compatible with the PCI-6229?
This model pairs with NI SHC68-68-EPM shielded cables connected to terminal blocks like the SCB-68A, CB-68LP, or BNC-2120. Two cables and terminal blocks are required to access all I/O lines simultaneously.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed measurement modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard laboratory or industrial conditions.
