National Instruments PCI-4462 | Sound and Vibration Data Acquisition Key Specs
Architect’s Product Breakdown
The National Instruments PCI-4462 operates as a precision dynamic signal acquisition card designed for high-fidelity audio, vibration analysis, and acoustic testing applications within standard PCI host computer environments. In demanding engineering test benches or monitoring skids where microvolt-level sensitivity and high dynamic range dictate measurement integrity, this hardware model delivers simultaneous sampling across all four input channels. The integrated delta-sigma converters provide native anti-aliasing protection and exceptional amplitude flatness, ensuring minimal signal distortion during frequency domain analysis.
Deploying or replacing this data acquisition model requires strict adherence to proper grounding guidelines and transducer excitation wiring. When performing maintenance swaps in industrial measurement cabinets, engineers must verify that sensor input connections—whether configured for differential or pseudodifferential modes—match the software channel properties in NI-DAQmx. Omitting proper shielding practices or exceeding the maximum input voltage rating across the analog front-end channels can introduce ground loop noise or permanently damage internal conditioning components.

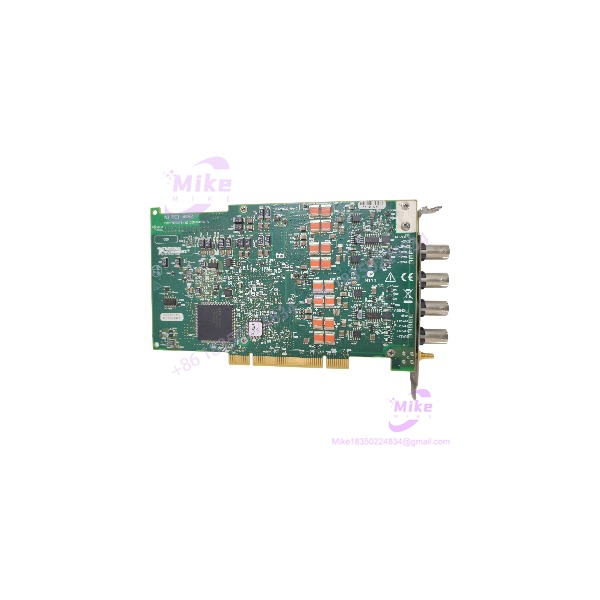

PCI-4462
Key Technical Specifications
- Manufacturer: National Instruments (NI)
- Product Category: Dynamic Signal Acquisition (DSA) PCI Board
- Part Number / Catalog No.: PCI-4462
- Analog Input Channels: 4 simultaneously sampled channels (differential or pseudodifferential)
- ADC Resolution: 24-bit delta-sigma converter
- Maximum Sampling Rate: 204.8 kS/s per channel
- Input Voltage Ranges: Software-selectable full-scale ranges from \pm 316 mV to \pm 42.4 V
- IEPE Excitation Current: Software-selectable (0 mA, 4 mA, or 10 mA)
- Dynamic Range: 118 dB typical
- Bus Architecture: Standard PCI bus master/slave interface
- Operating Temperature Range: 0°C to +50°C (standard industrial threshold)
- Weight: Approximately 227 g (8.0 oz)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCI-4462 measurement card while the host computer is powered on. Doing so risks shorting live PCI bus power rails and permanently frying motherboard circuitry.
- Ignoring IEPE Sensor Power State: Activating IEPE excitation current on a standard non-powered voltage output sensor or active transducer can over-drive and damage the signal source. Always confirm sensor specifications before applying loop power through the software interface.
- Inadequate Shielding on Low-Level Analog Lines: I’ve seen test laboratories struggle with persistent 60Hz baseline noise because technicians failed to maintain continuous shield continuity from the accelerometer cabling all the way to the chassis ground lug.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm clean gold-finger connectors, undamaged surface-mount analog components, and authentic OEM labeling.
- Live Test Bench Environment: Measurement cards are seated in a dedicated industrial test PC running validated NI-DAQmx driver suites to evaluate bus communication stability.
- Signal Calibration & Noise Floor Testing: Technicians inject precision multi-frequency AC waveforms and low-level dc steps across all 4 channels to verify dynamic range, total harmonic distortion (THD), and channel phase alignment.
- Anti-Static Packaging: Post-testing units are sealed inside conductive ESD shielding bags and cushioned with high-density protective foam to prevent electrostatic discharge during transport.
Technical FAQ
Can I hot-swap the PCI-4462 card while the host computer is energized?
No. Standard PCI expansion slots do not support live hot-swapping. Always power down the host computer entirely before installing or removing this module.
What programming environments are compatible with this acquisition device?
The PCI-4462 is fully supported by NI-DAQmx drivers, enabling seamless integration with LabVIEW, LabWindows/CVI, MATLAB, C#, and Python development environments.
What causes an unexpected DC offset or clipped signal reading during vibration testing?
Clipped signals or high DC offsets are typically caused by selecting an input voltage range too small for the peak sensor output, or by utilizing DC coupling when measuring sensors with an inherent bias voltage.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed measurement modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard laboratory or industrial conditions.
