Honeywell 05701-A-0550 Replacement | System 57 Test Plug Accessory

Description

Honeywell 05701-A-0550 Replacement | System 57 Test Plug Accessory

Product Introduction

In industrial facilities utilizing the Honeywell Sieger System 57 gas detection architecture, maintaining accurate sensor calibration is a critical safety requirement. The Honeywell 05701-A-0550 is an authentic System 57 Calibration Plug engineered to interface directly with System 57 control cards during maintenance, loop checks, and routine calibration cycles. It provides technicians with a secure, reliable physical connection point to inject test signals or execute calibration routines without disrupting permanent field wiring.

Built to withstand harsh plant environments, this accessory plug is an essential toolkit item for instrument technicians performing zero and span adjustments on toxic or combustible gas detection loops. Whether you are replacing a lost maintenance tool or outfitting a new calibration kit for your facility’s safety instrumented systems, the 05701-A-0550 ensures seamless compatibility with your existing System 57 hardware infrastructure.

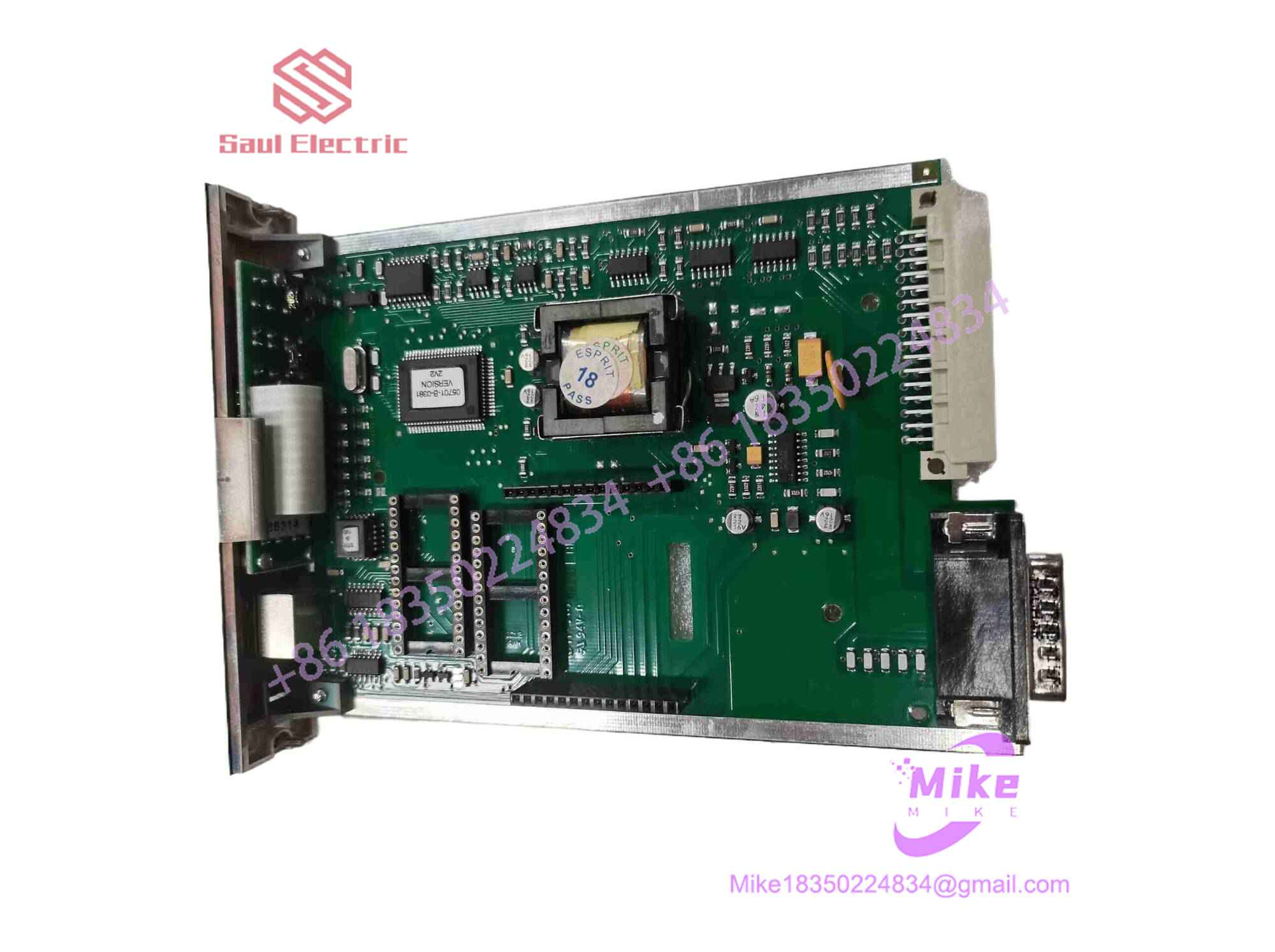

05701-A-0550

Key Technical Specifications

Application Scenarios & Pain Points

• Routine Plant Calibration Rounds: Instrument technicians performing scheduled gas detector calibrations across extensive petrochemical or offshore processing plants rely on proper interface plugs to execute fast, error-free testing.
• Loop Troubleshooting & Maintenance: Isolating channel responses and verifying control card accuracy during diagnostic troubleshooting sessions without tampering with rear backplane terminations.
• Safety System Commissioning: Equipping instrumentation workshops with authentic manufacturer-specified accessories needed to commission new System 57 subracks successfully.

QA & Live Testing SOP (Trust Signal)

We don’t supply maintenance accessories without verifying physical pin integrity and mechanical fit; every 05701-A-0550 unit goes through our rigorous inspection protocol:

1. Visual & Pin Alignment Audit: Inspected under optical magnification to ensure contact pin straightness, housing durability, and complete absence of molding defects or wear.
2. Mechanical Mating Check: Tested for smooth insertion and secure latching against sample System 57 front-panel receptacles to guarantee reliable electrical contact.
3. Protective Packaging: Sealed inside heavy-duty anti-static or protective barrier bags to prevent transit damage and keep the hardware ready for immediate field deployment.

Field Engineer’s Pitfall Guide

• ❗ Verify Correct Port Alignment: Ensure the calibration plug is carefully aligned with the control card’s designated socket before pushing home to avoid bending internal connector pins.
• ❗ Follow Plant Safety Protocols: Always notify the central control room (CCR) before initiating calibration or diagnostic routines on active safety loops to prevent accidental emergency shutdown (ESD) trips.
• ❗ Store in Clean Toolkits: Keep the plug protected from moisture, dirt, and chemical residue by storing it in a clean instrumentation case when not in active use.

Intent-Driven FAQ

What is the primary purpose of the Honeywell 05701-A-0550?

The 05701-A-0550 is a specialized calibration plug designed to interface with Honeywell System 57 control cards to facilitate routine sensor testing and zero/span calibrations.

Is this plug compatible with all System 57 control cards?

Yes, it is built specifically as a standard maintenance accessory for the Honeywell / Sieger System 57 product family.

Can this accessory be used while the system is online?

While it assists with testing and calibration, technicians must adhere to plant management-of-change (MOC) and safety protocols regarding live gas detection loops before inserting test devices.

What kind of warranty covers this calibration accessory?

Every unit is backed by our standard replacement guarantee, verifying structural integrity and out-of-the-box readiness.
