Honeywell 05704-A-0145 | System 57 3U High Multi-Channel 4-20mA Card
Product Introduction
In complex industrial safety architectures where maximizing channel density is essential for monitoring extensive toxic and combustible gas hazards, the Honeywell 05704-A-0145 delivers high-capacity monitoring within a streamlined footprint. Originating from the trusted Sieger product line, this microprocessor-controlled System 5704 Four-Channel Control Card is engineered specifically for 4-20 mA loop-powered transmitters. It packs four complete analog gas detection channels into a single 1-inch (25 mm) wide slide-in card format, significantly increasing the monitoring capacity per subrack foot compared to legacy single-channel cards.
Designed for standard 19-inch System 57 subracks, the 05704-A-0145 features an integrated backlit LCD screen with peak reading, digital alphanumeric readouts, and concentration bar graphs. Dedicated per-channel LED indicators track A1, A2, and A3 alarm levels, system faults, and inhibit states. Whether expanding high-capacity safety instrumented systems in a refinery or executing an exact-match replacement, this module delivers deterministic multi-channel performance across existing system backplanes.

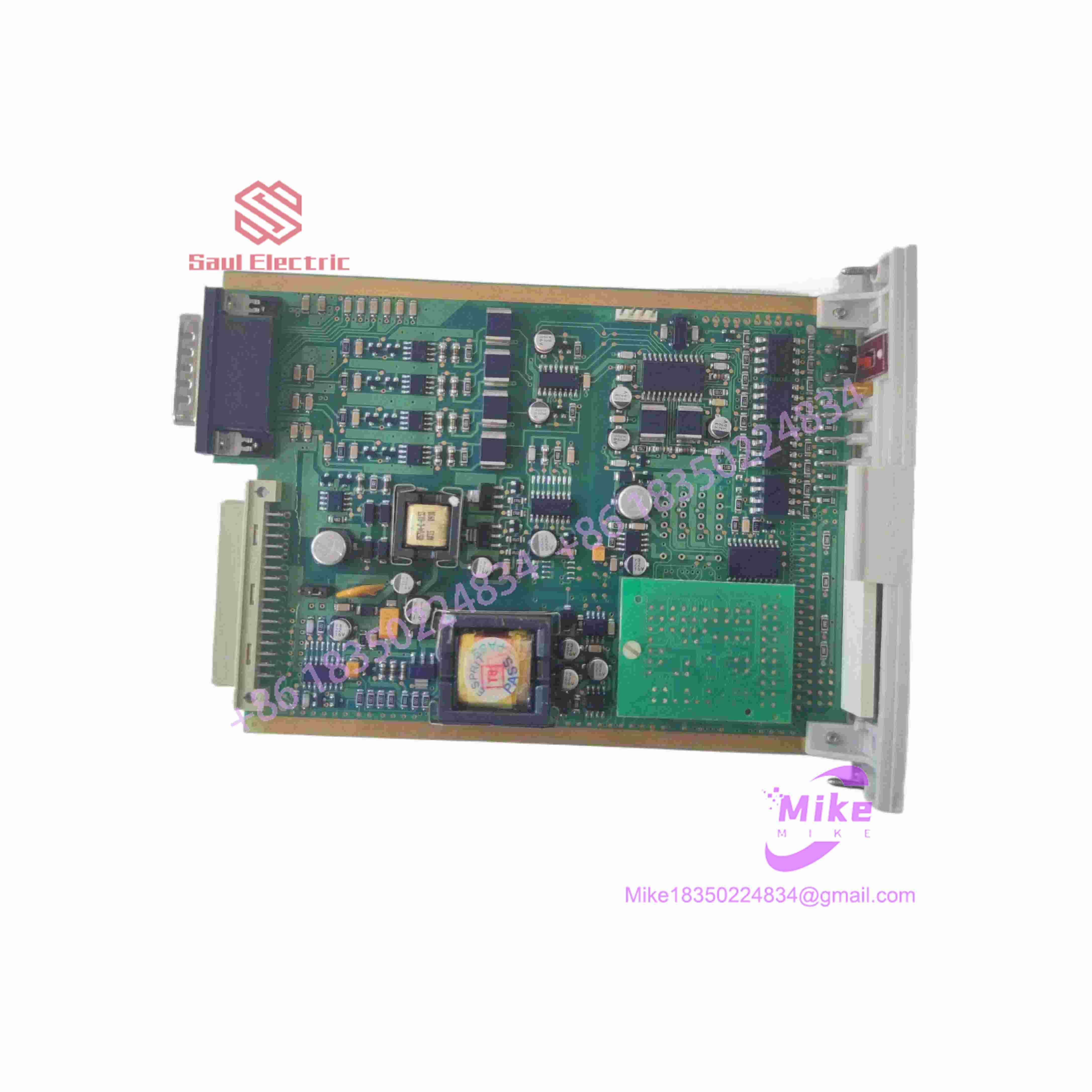

05704-A-0145
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | 4-Channel Gas Detection Control Card (4-20 mA Analog Variant) |
| System Platform | Honeywell / Sieger System 57 Architecture |
| Sensor Input Type | 4-20 mA analog loop transmitters (Sourcing or sinking configurations) |
| Input Signal Range | 0 to 22 mA scale with programmable range and engineering units |
| Display Type | Backlit LCD (Bar graph + peak reading, digital, alphanumeric) |
| Per-Channel Status LEDs | A1, A2, A3 Gas Alarms, Fault, and Inhibit status indicators |
| Operating Voltage | 18V to 32V DC (Powered via rack backplane) |
| Power Consumption | Approx. 4.5 W typical (4-20 mA configuration) |
| Dimensions & Weight | 3U high \times 25 mm (1 inch) wide / Approx. 165 g |
| Operating Temperature | -5^\circC to +55^\circC standard industrial tier |
Application Scenarios & Pain Points
- High-Density Toxic Gas Monitoring: Chemical plants and manufacturing facilities tracking multiple hydrogen sulfide, carbon monoxide, or oxygen deficiency points rely on the 5704 four-channel layout to condense control room cabinet footprints.
- Remote 4-20 mA Loop Consolidation: Integrating various third-party toxic gas transmitters and flame detectors into a unified safety monitoring rack without expanding physical subrack infrastructure.
- Legacy Safety System Upgrades: Servicing established Sieger System 57 safety cabinets seamlessly during scheduled maintenance windows without requiring costly physical wiring re-engineering.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse multi-channel legacy safety cards without verifying microprocessing health, analog loop accuracy, and display integrity; every 05704-A-0145 unit goes through our rigorous bench protocol:
- Visual & Edge-Connector Audit: Inspected under optical magnification for gold-finger trace cleanliness, component soldering solidity, and complete absence of environmental corrosion.
- Dynamic Rack Power-Up: Slotted into an authorized System 57 test chassis to verify clean power rail handshakes, bus communication, and back-lit LCD/LED segment initialization across all four channels.
- 4-20 mA Loop Simulation: Tested using calibrated current loop simulators across all four input channels to validate linear response scaling, bar graph tracking, and A1/A2/A3 trip thresholds.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier bags and cushioned within high-density structural foam to prevent electrostatic and transit shock damage.
Field Engineer’s Pitfall Guide
- ❗ Electrostatic Discharge (ESD) Precaution: Always wear a properly grounded wrist strap when handling or installing this multi-channel control card; direct exposure to static charges can damage sensitive onboard CMOS components.
- ❗ Card Variant Verification: Ensure you are installing the 05704-A-0145 (4-20 mA version) into loops wired for analog transmitters; inserting it into loops wired for catalytic bridge sensors will result in immediate loop hardware faults.
- ❗ Transmitter Power Loop Load: Ensure that external loop power requirements do not exceed subrack channel power limits when driving power-hungry field transmitters.
Intent-Driven FAQ
What is the primary difference between the 05704-A-0144 and 05704-A-0145 cards?
The 05704-A-0145 is engineered specifically for 4-20 mA loop transmitters, whereas the 05704-A-0144 is built for direct catalytic bridge flammable gas sensors.
How many channels does the 05704-A-0145 control card manage?
This single slide-in module independently manages four analog channels of gas detection logic within a compact 1-inch wide footprint.
Can an analog output module be added to this four-channel card?
Yes. Optional analogue output modules can be plugged onto the control card architecture to provide individual remote retransmission signals for each channel.
What causes a card fault light to illuminate on a 5704 display?
A card-level fault typically points to an open or short-circuit in one of the field wiring loops, an out-of-range 4-20 mA signal (below 2 mA or above 22 mA), or an internal diagnostic error.
