Honeywell 05704-A-0144 Replacement | System 57 Four-Channel Control Card
Product Introduction

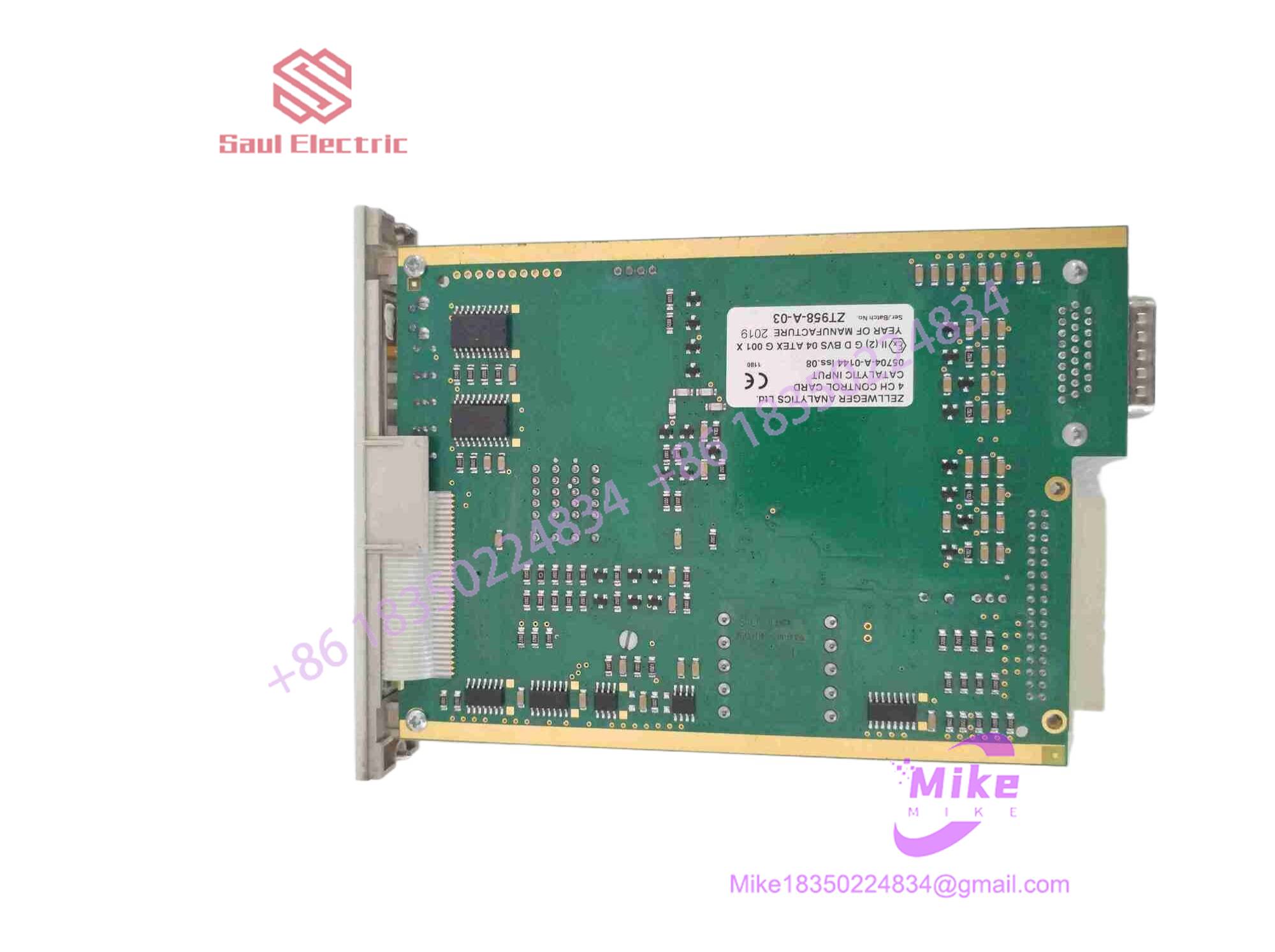

In complex industrial safety architectures, maximizing packing density without sacrificing channel independence is critical for monitoring widespread flammable gas hazards. The Honeywell 05704-A-0144 is the high-density System 5704 Four-Channel Control Card engineered specifically for catalytic bridge-type flammable gas sensors. Originating from the trusted Sieger product line, this microprocessor-controlled module packs four complete gas detection channels into a single 1-inch (25 mm) wide slide-in card format, significantly quadrupling the monitoring capacity per subrack foot compared to single-channel cards.
Designed for standard 19-inch System 57 subracks, the 05704-A-0144 features an integrated backlit LCD screen with peak reading, digital alphanumeric readouts, and concentration bar graphs. Dedicated per-channel LED indicators track A1, A2, and A3 alarm levels, system faults, and inhibit states. Whether expanding high-capacity safety instrumented systems in a refinery or executing an exact-match replacement, this module delivers deterministic multi-channel performance across existing system backplanes.
05704-A-0144
4. Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | 4-Channel Gas Detection Control Card (Catalytic Input) |
| System Platform | Honeywell / Sieger System 57 Architecture |
| Sensor Input Type | Direct catalytic bridge (Constant current drive: 90 mA to 315 mA) |
| Input Signal Range | Full Scale Range: 15 mV to 300 mV; Max Line Resistance: 40\ \Omega at 250 mA |
| Display Type | Backlit LCD (Bar graph + peak reading, digital, alphanumeric) |
| Per-Channel Status LEDs | A1, A2, A3 Gas Alarms, Fault, and Inhibit status indicators |
| Operating Voltage | 18V to 32V DC (Powered via rack backplane) |
| Power Consumption | 12.8 W typical (Catalytic configuration) |
| Dimensions & Weight | 3U high \times 25 mm (1 inch) wide / Approx. 165 g |
| Operating Temperature | -5^\circC to +55^\circC standard industrial tier |
Application Scenarios & Pain Points
- High-Density Combustible Gas Monitoring: Offshore oil platforms, compressor stations, and tank farms requiring dense multi-point LEL monitoring rely on the 5704 four-channel layout to pack up to 64 channels into a single 19-inch subrack.
- Combustible Gas Leak Detection: Continuous tracking of methane, propane, and other flammable hydrocarbons using catalytic bead sensors where fast, reliable bridge excitation is mandatory.
- Legacy Safety System Expansion & Retrofits: Upgrading or servicing established Sieger System 57 safety cabinets without requiring costly physical panel expansions or total rewiring layouts.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse multi-channel legacy safety cards without verifying microprocessing health, constant current drive stability, and display integrity; every 05704-A-0144 unit goes through our rigorous bench protocol:
- Visual & Edge-Connector Audit: Inspected under optical magnification for gold-finger trace cleanliness, component soldering solidity, and complete absence of environmental corrosion.
- Dynamic Rack Power-Up: Slotted into an authorized System 57 test chassis to verify clean power rail handshakes, bus communication, and back-lit LCD/LED segment initialization across all four channels.
- Catalytic Bridge Simulation: Tested using specialized multi-channel bridge circuit simulators across all four inputs to validate zero/span tracking, constant current drive accuracy, and A1/A2/A3 trip thresholds.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier bags and cushioned within high-density structural foam to prevent electrostatic and transit shock damage.
Field Engineer’s Pitfall Guide
- ❗ Electrostatic Discharge (ESD) Precaution: Always wear a properly grounded wrist strap when handling or installing this multi-channel control card; direct exposure to static charges can damage sensitive onboard CMOS components.
- ❗ Card Variant Verification: Ensure you are installing the 05704-A-0144 (catalytic version) into loops wired for catalytic sensors; inserting it into loops intended for 4-20 mA transmitters will cause immediate loop errors (use model 05704-A-0145 for 4-20mA loops).
- ❗ Higher Power Considerations: Note that the four-channel catalytic card draws higher wattage (12.8 W) compared to single-channel cards; ensure subrack power supply budgets are respected during system expansion.
Intent-Driven FAQ
What is the primary difference between the 05704-A-0144 and 05704-A-0145 cards?
The 05704-A-0144 is engineered for catalytic bridge sensors, whereas the 05704-A-0145 is configured for 4-20 mA loop-powered transmitters.
How many channels does the 05704-A-0144 control card manage?
This single slide-in module independently manages four channels of gas detection logic within a compact 1-inch wide footprint.
Can an analog output module be added to this four-channel card?
Yes. Optional analogue output modules can be plugged onto the control card architecture to provide individual remote 0-20mA or 4-20mA retransmission signals for each channel.
What causes a card fault light to illuminate on a 5704 display?
A card-level fault typically points to internal diagnostic errors, power rail discrepancies, a corrupted EEPROM configuration, or communication breakdown along the subrack backplane bus.
What kind of warranty covers this surplus four-channel control card?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to ensure absolute reliability out of the box.
