Honeywell 05704-A-0121 | System 57 4-Channel Relay Interface Module
Product Introduction
In heavy industrial plants, oil and gas facilities, and remote petrochemical sites, safety systems require dependable output channels to drive external horns, beacons, and emergency shutdown (ESD) networks. The Honeywell 05704-A-0121 is a specialized Quad Relay Interface Card designed specifically for the industry-standard Honeywell System 57 architecture (originally developed under the Sieger brand). It acts as a robust output expansion card, providing four dedicated single-pole changeover (SPCO) relay circuits to switch high-capacity external loads based on gas detection and fire monitoring logic.
Engineered as a slide-in modular circuit card for standard System 57 subracks, the 05704-A-0121 integrates smoothly into the backplane communications bus. It translates system-level alarm conditions into hardwired switching actions while maintaining low typical power dissipation (around 1.0 W). Whether you are expanding your safety rack’s output capabilities or replacing a failed relay board during scheduled maintenance, this unit drops seamlessly into your existing subrack framework.

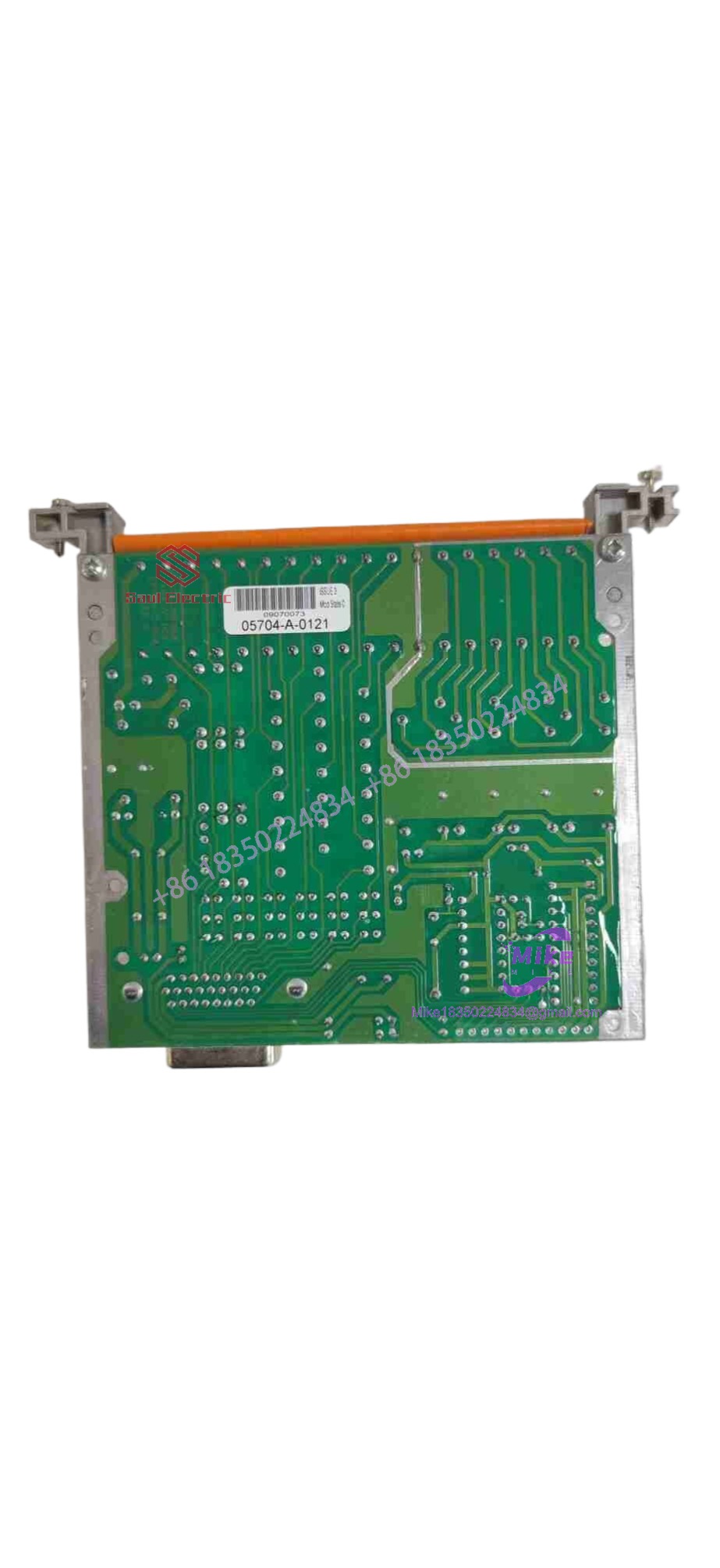

05704-A-0121
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | Quad Relay Interface / Output Module |
| System Platform | Honeywell / Sieger System 57 Architecture |
| Relay Complement | 4 Independent Single-Pole Changeover (SPCO) Relays |
| Power Consumption | 1.0 W typical, 1.7 W maximum |
| Field Terminal Capacity | Up to 2.5 mm^2 (14 AWG) wiring capability |
| Chassis Compatibility | Standard System 57 front-loading subracks and backplanes |
| Enclosure Type | Modular slide-in circuit card format |
| Operating Temperature | Standard industrial tier (-25^\circC to +55^\circC) |
Application Scenarios & Pain Points
- Refinery Alarm & Annunciation Interlocking: Consolidating multiple system warnings to drive localized visual beacons and audible horns when gas concentrations approach critical safety thresholds.
- Emergency Shutdown (ESD) Integration: Routing hardwired volt-free contact closures from safety racks directly to plant safety instrumented systems (SIS) or master logic solvers.
- Legacy Safety System Maintenance: Maintaining older Sieger System 57 installations without executing expensive, full-scale control system overhauls requires exact-match hardware replacement cards.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse legacy safety output cards without verifying relay contact continuity and switching integrity; every 05704-A-0121 unit goes through our rigorous bench protocol:
- Visual & Edge-Connector Audit: Inspected under optical magnification for gold-finger trace cleanliness, relay housing stability, solder joint integrity, and complete absence of corrosion.
- Dynamic Rack Power-Up: Slotted into an authorized System 57 test chassis to verify clean power rail handshakes, bus communication, and processor command tracking.
- Relay Switching & Load Simulation: Tested across all four SPCO relay channels using multi-meter continuity and load simulators to confirm low-resistance closure, proper coil activation, and faultless de-energization.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier bags and cushioned within high-density structural foam to prevent electrostatic and transit shock damage.
Field Engineer’s Pitfall Guide
- ❗ Electrostatic Discharge (ESD) Precaution: Always wear a properly grounded wrist strap when handling or installing this interface card; direct exposure to static charges can damage sensitive onboard components.
- ❗ Relay Contact Ratings: Do not exceed the maximum voltage and current limits specified for the onboard SPCO relay contacts when driving heavy inductive loads (such as large solenoids or motors); use interposing relays if necessary.
- ❗ System Power Isolation: Always de-energize the respective rack power tier before installing or unseating backplane interface cards to prevent accidental relay chatter or voltage transients on live field circuits.
Intent-Driven FAQ
What system platform is the Honeywell 05704-A-0121 designed for?
The 05704-A-0121 is built specifically for the Honeywell Sieger System 57 modular gas and fire detection architecture.
How many relay channels does this module provide?
The card features four independent single-pole changeover (SPCO) relay output channels for custom alarm and fault mapping.
What causes a relay output to fail during plant operations?
Relay contact wear is commonly caused by drawing excessive current past rated thresholds without proper arc suppression when driving heavy inductive loads, or by environmental moisture corrosion on terminal blocks.
Can this interface card be hot-swapped in an active rack?
While System 57 hardware supports modular replacement, standard plant safety guidelines and management-of-change (MOC) protocols for life-safety systems normally require isolating power or disabling associated logic loops prior to card extraction.
What kind of warranty covers this surplus relay module?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to ensure absolute reliability out of the box.
