Honeywell 620-0073C | 24VDC Local Rack Interface Card

Description

Honeywell 620-0073C | 24VDC Local Rack Interface Card

Dynamic Product Introduction

Intermittent signal dropouts across expanding PLC I/O racks are usually caused by ground loops or voltage droops along aging parallel bus backplanes. When an I/O rack suddenly goes dark on a continuous chemical processing or metal stamping line, hunting for bad ribbon cables or failed bus drivers wastes critical production hours. The Honeywell 620-0073C local rack interface module resolves these transmission bottlenecks by buffering and re-driving address/data lines across IPC 620 chassis assemblies.

Replacing legacy passive expansion cards with the 620-0073C prevents memory address corruption and cyclic scan delays that plague larger I/O node layouts. By incorporating opto-isolated bus buffering, this module shields delicate CPU memory banks from high-voltage spikes and electromagnetic noise generated by nearby motor contactors and drive cabinets. For maintenance teams managing legacy Honeywell IPC 620 racks, keeping a bench-verified 620-0073C card in warehouse stock avoids extended plant outages during unexpected rack interface failures.

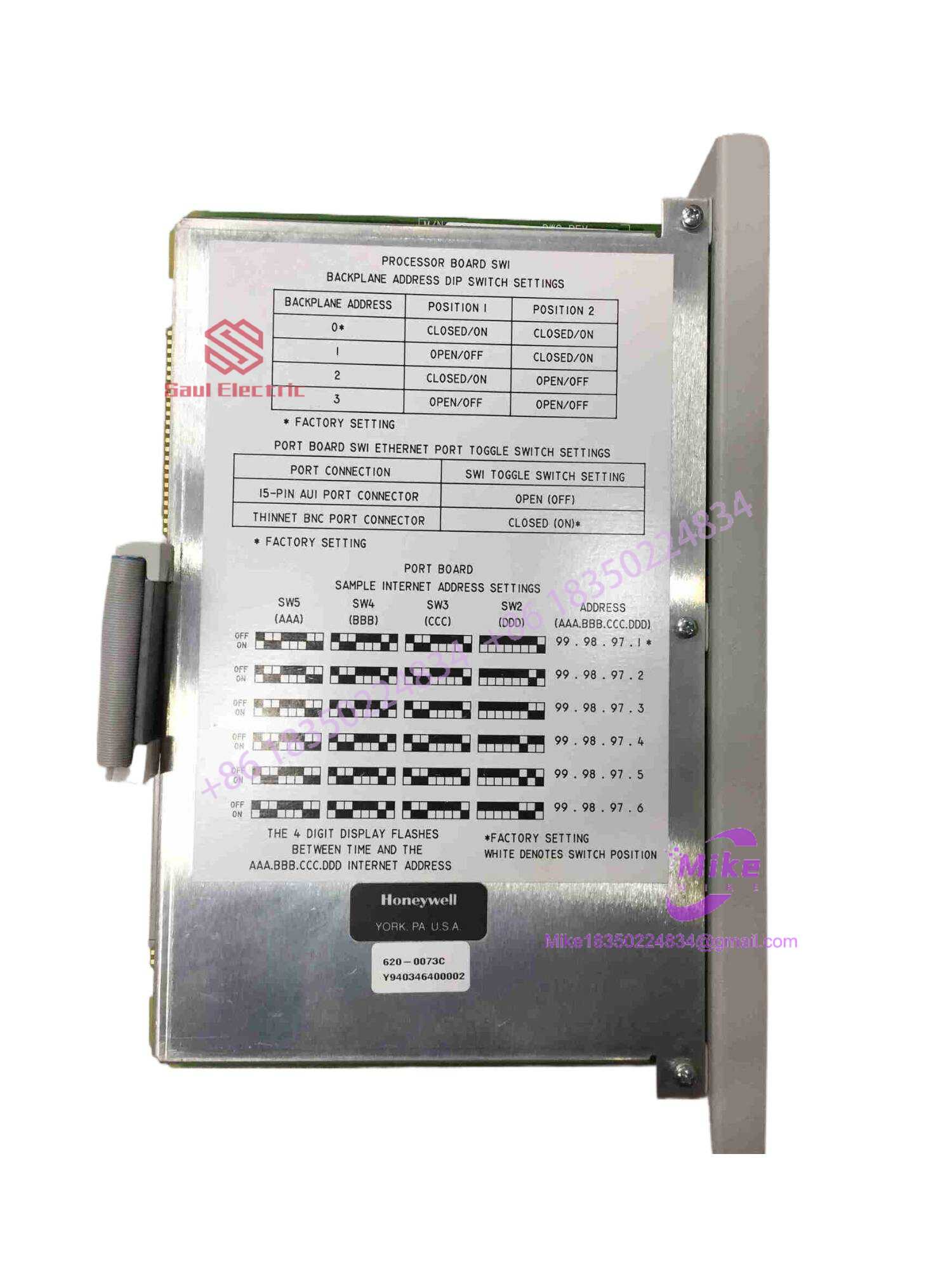

620-0073C

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring legacy Honeywell IPC 620 hardware requires stringent shop-floor verification to guarantee full operational readiness the moment the module hits the control cabinet:

Inbound Verification & Physical Audit

• Traceability & Part Number Checks: Verification of OEM markings, PCB artwork revision codes, and serial tags to filter out counterfeit or unverified stock.
• Component Stress Inspection: High-magnification optical audit of edge connectors, bus driver ICs, and decoupling capacitors to spot trace corrosion, thermal stress, or bent pin headers.

Live Simulation Setup

• Backplane Power Up: The 620-0073C is seated into a calibrated Honeywell IPC 620 chassis powered by a regulated multi-rail power supply to check cold-start current draw.
• Parallel Bus Handshake: Linked via ribbon cable to an active IPC 620 CPU rack to confirm immediate rack recognition and bus synchronization.

Diagnostic & Stress Testing

• Full-Scale I/O Rack Sweep: Driving 64+ discrete input and output channels across the expansion rack while monitoring the bus for dropped scan cycles or parity errors.
• 24-Hour Thermal Run: Operating the chassis inside a 50°C test chamber under full I/O cyclic polling to catch latent semiconductor breakdown prior to inventory packaging.

Final Packaging Preparation

• Configuration Logging: Factory default jumper positions and test results are recorded on the inspection certificate attached to the card.
• ESD Safe Sealing: Double-wrapped in static-shielding film with active desiccant before placement in custom-molded foam shipping containers.

The Field Engineer’s Pitfall Guide

❗ Mismatched Rack Address DIP Switches

When swapping an existing 620-0073C card, technicians frequently fail to mirror the physical DIP switch settings on the replacement unit. If two expansion racks share the same hardware address on the IPC 620 bus, the CPU will fault immediately with an “I/O Configuration Error” or corrupt the memory image of both racks.

(In actual field callouts, I’ve seen an entire assembly line stay down for four hours simply because a maintenance tech assumed the replacement card shipped with the correct rack ID already set).

❗ Hot-Swapping the Ribbon Cable Under Power

Although individual field I/O wiring arms on some legacy racks can be serviced, pulling or inserting the main parallel bus ribbon cable while the 5V logic backplane is energized will arc logic pins, destroying the bus transceiver chips on both the 620-0073C and the CPU board. Always isolate main rack power prior to servicing.

❗ Exceeding Maximum Cable Length Specifications

Attempting to extend local expansion racks beyond the recommended 10-foot parallel cable limit causes high-frequency signal attenuation. This leads to intermittent I/O dropouts that appear randomly during heavy inductive load switching in the plant.

Intent-Driven FAQ

Will swapping the 620-0073C erase my controller’s ladder logic program?

No. The 620-0073C is strictly an interface board for bus communication across racks. Your PLC application program resides safely in the main CPU’s non-volatile memory or battery-backed RAM. However, ensure the replacement board’s rack address switches match the defective unit exactly before powering on.

What causes a solid red BUS_FAULT LED after installing this card?

A solid BUS_FAULT light typically points to an incorrect rack address DIP switch setting, a loose or damaged parallel ribbon cable, a missing terminator on the final rack, or a 5V backplane power dip below operating tolerances.

Can I replace an older “A” or “B” revision board with the 620-0073C?

Yes, the “C” revision is fully backward-compatible with earlier revisions (620-0073A and 620-0073B). It offers improved noise immunity and updated bus transceivers while retaining identical pinouts and form factors.

Does the 620-0073C require separate 24VDC field power wiring?

No, the module derives its operating power directly from the 5 VDC logic bus supplied by the chassis power supply. However, the field I/O modules housed within that rack will still require their respective 24VDC or 120VAC field power connections.

What warranty is provided with certified surplus Honeywell IPC 620 cards?

All fully tested surplus and replacement Honeywell 620-0073C modules include a standard 12-month operational warranty covering component failures, backplane communication stability, and bus driver performance.
