Honeywell Sieger 05701-A-0325 | System 57 DC Input Card
Product Introduction
In safety-critical industrial infrastructure where uninterrupted uptime is mandatory, reliable power distribution across safety instrumented systems is just as important as signal processing. The Honeywell Sieger 05701-A-0325 is the official System 57 DC Input Card designed for the Honeywell Sieger System 57 gas detection platform. This hardware component handles DC power rail distribution and monitoring within the modular subrack chassis, ensuring that control cards and field transmitters receive stable operational voltage.
Engineered as a slide-in modular circuit card designed specifically for System 57 racks, the 05701-A-0325 integrates directly into the chassis backplane layout. Whether performing preventative maintenance, restoring power health to an aging safety rack, or replacing a failed distribution module, this card provides seamless plug-and-play compatibility with existing System 57 enclosures without requiring system redesigns.

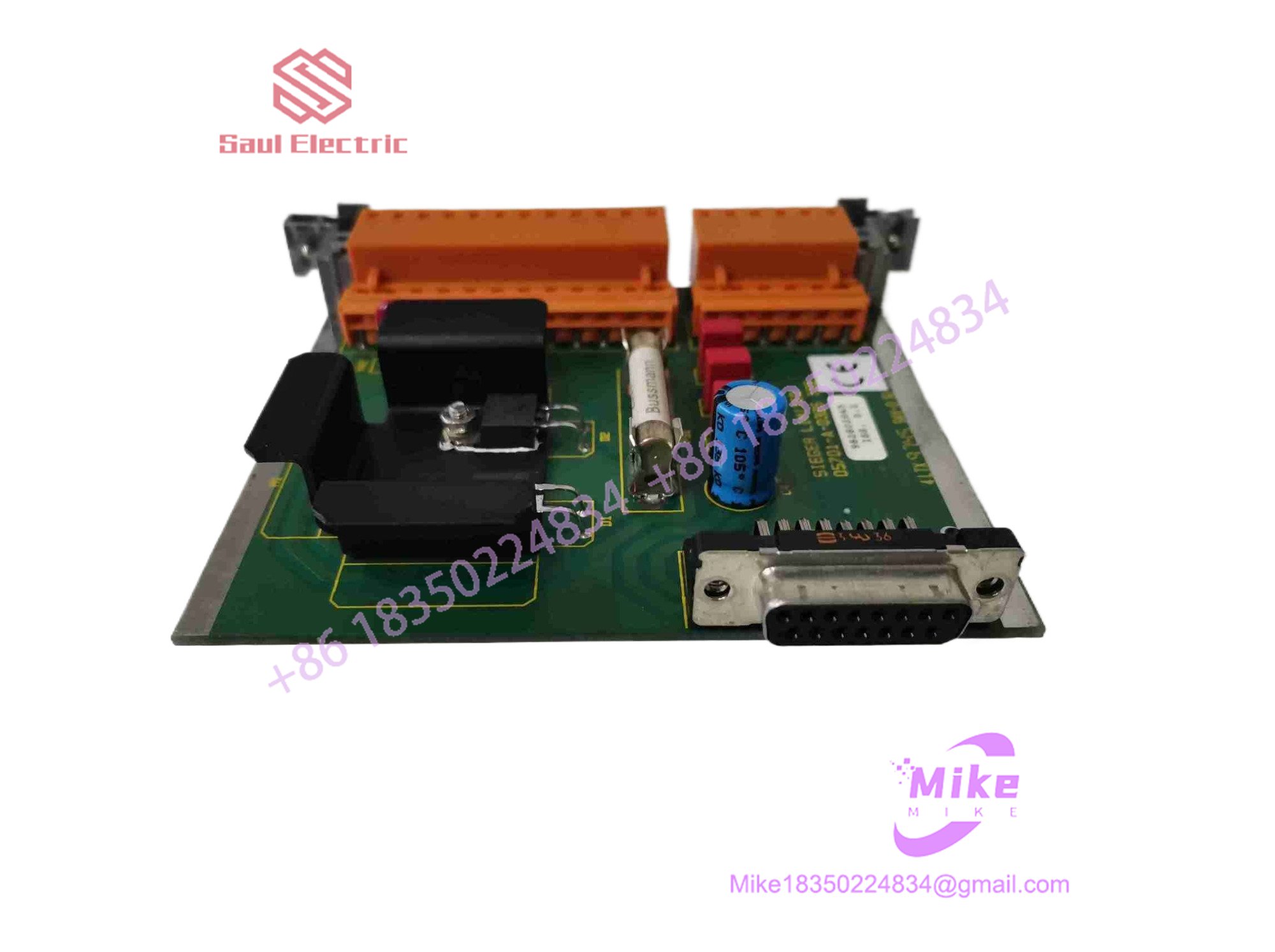

05701-A-0325
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | DC Input / Power Distribution Card |
| System Platform | Honeywell / Sieger System 57 Gas Detection Architecture |
| Chassis Compatibility | Standard System 57 8-way and 16-way subracks |
| Input Type | Low-voltage DC distribution / system power monitoring |
| Mounting Format | Modular slide-in backplane circuit card |
| Operating Temperature | -25^\circC to +55^\circC industrial standard |
| Enclosure Protection | Open-board card format for subrack installation |
Application Scenarios & Pain Points
- Industrial Gas Detection Power Hubs: Ensuring stable DC power delivery to high-density control card racks across multi-channel safety systems in chemical plants and refineries.
- Legacy System Upgrades & Maintenance: Replacing damaged or degraded power distribution components in operational Sieger System 57 racks to maintain continuous plant safety compliance.
- Offshore Skid Safety Panels: Conserving space while sustaining rigid power conditioning requirements in hazardous-area remote instrument enclosures.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse legacy power and control cards without verifying electrical continuity and isolation properties; every 05701-A-0325 unit goes through our rigorous bench protocol:
- Visual & Trace Inspection: Inspected under optical magnification for edge-connector cleanliness, component integrity, and absolute freedom from trace corrosion or thermal stress.
- Backplane Power Simulation: Inserted into an active System 57 test chassis to verify stable low-voltage DC rail distribution and handshake signaling.
- Thermal & Load Verification: Tested under simulated load conditions to ensure voltage stability and zero thermal runaway across onboard components.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier bags and cushioned within high-density structural foam to prevent transit and electrostatic shock.
Field Engineer’s Pitfall Guide
- ❗ Electrostatic Discharge (ESD) Precaution: Always use a calibrated, grounded wrist strap when handling or installing this module to prevent static discharge from damaging sensitive onboard components.
- ❗ Rack Power Isolation: Always de-energize the main rack power supply before inserting or extracting power distribution and DC input cards to prevent arcing or backplane pin damage.
- ❗ Slot Alignment Check: Verify that the card is correctly aligned with the chassis guide rails and fully seated into the backplane connector before powering the subrack back on.
Intent-Driven FAQ
What is the primary function of the Honeywell 05701-A-0325 card?
The 05701-A-0325 is a dedicated DC Input Card built for the System 57 architecture to handle and manage direct current power distribution and monitoring across the rack environment.
Is this card compatible with both front and rear-access System 57 racks?
Yes, it is designed as a standardized system spare compatible with standard System 57 subrack frameworks.
What causes a power rail fault inside a System 57 subrack?
Power faults are commonly triggered by short circuits in field wiring, failing power supply sub-units, or degraded contact points on backplane distribution cards like the 05701-A-0325.
Can this module be hot-swapped during active plant operations?
Standard safety protocols for life-safety systems typically require isolating power to the affected rack tier before replacing power distribution cards to prevent inadvertent system shutdowns.
What kind of warranty covers this surplus module?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to ensure absolute reliability out of the box.
