HIMA X-DO3201 | 32-Channel 24V SIL3 Output Quantified Spec
Dynamic Product Introduction
Securing high-risk process environments against catastrophic failure demands absolute deterministic integrity from every safety-instrumented loop. Integrating the HIMA X-DO3201 directly into the HIMax backplane provides safety engineers with a high-density, fault-tolerant output layer capable of safely de-energizing or energizing critical final elements under strict SIL 3 compliance. Unlike standard commercial automation cards that may mask internal component failures, this safety processor utilizes continuous galvanic self-monitoring and line-fault detection to ensure immediate safe-state transitions when hazards arise.
In field deployments, deploying the X-DO3201 eliminates nuisance trips while guaranteeing that safety interlocks execute without hesitation. The module combines advanced diagnostic coverage with a robust modular footprint, streamlining maintenance routines in high-availability petrochemical or power generation facilities.

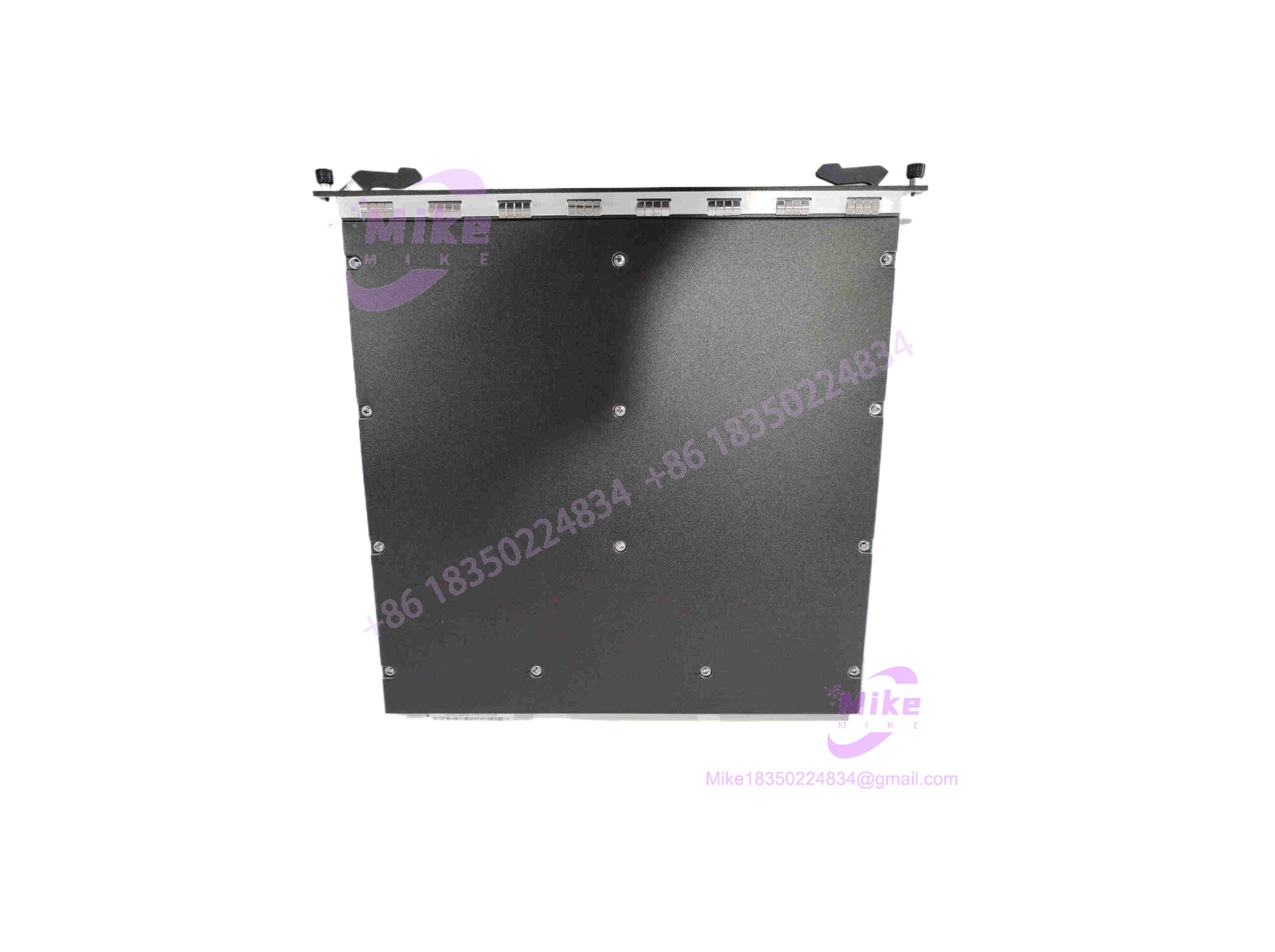

X-DO3201
Key Technical Specifications
| Core Parameter | Technical Specification |
| System Architecture | HIMax Safety-Related Modular Platform |
| Safety Integrity Level | SIL 3 (IEC 61508) / Category 4 / PL e (EN ISO 13849-1) |
| Channel Count | 32 Digital Output Channels |
| Nominal Operating Voltage | 24V DC field supply |
| Output Type | Solid-state, short-circuit proof with line-fault detection |
| Backplane Interface | Dual redundant X-Bus communication |
| Operating Temperature | 0°C to +60°C industrial standard |
| Enclosure Protection | IP20 Open style terminal interface |
| Approximate Weight | ~0.65 kg |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring safety-critical replacement hardware requires exhaustive verification to satisfy plant compliance and insurance standards. Our sourcing and testing workflow follows a rigorous protocol:
- Inbound Verification: Incoming X-DO3201 units undergo strict anti-counterfeit screening, verifying laser-etched serial numbers, firmware version tags, and OEM tamper-evident seals against certified factory distribution logs.
- Live Simulation: Technicians seat the module onto an active HIMax test rack powered by verified dual-redundant safety rails to test backplane handshakes and redundant X-Bus communication.
- Diagnostics: Using high-precision multimeters and specialized safety simulation jigs, engineers test every channel’s response time, verify short-circuit protection thresholds, and check line-fault monitoring loops. A 24-hour thermal burn-in run verifies component stability under load.
- Final Prep: Technicians log the exact hardware and firmware revision markers, wrap the module in ESD-safe shielding material, and seal it inside a moisture-barrier bag for secure transport.
The Field Engineer’s Pitfall Guide
❗ Ignoring Line-Fault Configuration Parameters: Swapping an X-DO3201 module without verifying the software-configured line-fault detection thresholds can trigger false trip alarms on low-current solenoid valves. I’ve seen entire compressor units shut down ungracefully because field resistance profiles didn’t match the new module’s diagnostic baseline.
❗ Hot-Swapping Without Following System Sequence: While HIMax hardware supports hot-swapping by design, failing to unlock the module properly through the engineering software or violating the physical interlock sequence can cause communication timeouts on the redundant safety bus.
❗ Overlooking Terminal Block Keying: Forcing a mismatch between the field connector block and the module backplane pins can bend delicate signal pins, compromising the integrity of the safety loop.
Intent-Driven FAQ
Will swapping the X-DO3201 module erase my safety logic or configuration program?
No. Safety-related application logic and configuration parameters are stored within the central processor and safe-control memory, not on localized input/output modules. However, you must ensure the firmware revision matches system requirements.
Is the X- rated for SIL 3 safety loops?
Yes, the module is certified up to SIL 3 in accordance with IEC 61508 and Category 4 / PL e per EN ISO 13849-1, making it fully qualified for critical emergency shutdown applications.
What kind of warranty is provided with surplus or replacement units?
Verified replacement modules typically include a comprehensive 365-day operational warranty covering internal component failure and manufacturing defects.
How can I verify channel status and diagnostic errors during routine checks?
The module features comprehensive front-panel diagnostic LED indicators displaying operating state, communication health, and individual channel switching status for rapid fault localization.
Can this module be used in non-HIMax HIMA controller racks?
No. The X- is engineered specifically for the HIMax modular safety platform architecture and is physically and electronically incompatible with legacy HIMA F-system racks.
