HIMA F3221 984322102 | HIQuad 16-Channel Digital Input Module
Dynamic Product Introduction
A failed safety input channel is not a normal automation fault. When an emergency stop, pressure switch, or shutdown contact disappears from the safety logic, the plant does not simply lose a measurement — it may lose a validated protection layer.
The HIMA F3221 984322102 is a 16-channel digital input module designed for HIMA HIQuad safety systems. It processes binary field signals from sensors, switches, and protective devices while providing the diagnostic behavior expected in safety instrumented applications.
The F3221 984322102 was engineered for systems such as H41q and H51q architectures where deterministic input handling and fault detection are required. Each input channel is monitored independently, allowing the safety controller to identify abnormal conditions such as wiring faults or signal inconsistencies.
Unlike standard PLC digital input cards, this module is part of a safety-rated control environment. The replacement process involves more than matching voltage and channel count. Engineers must confirm rack compatibility, project configuration, safety validation requirements, and the exact HIMA hardware version.
In field maintenance, I have seen plants lose significant troubleshooting time because a visually identical input module was installed without checking the original safety configuration. The module powered up, but the safety application rejected the replacement.

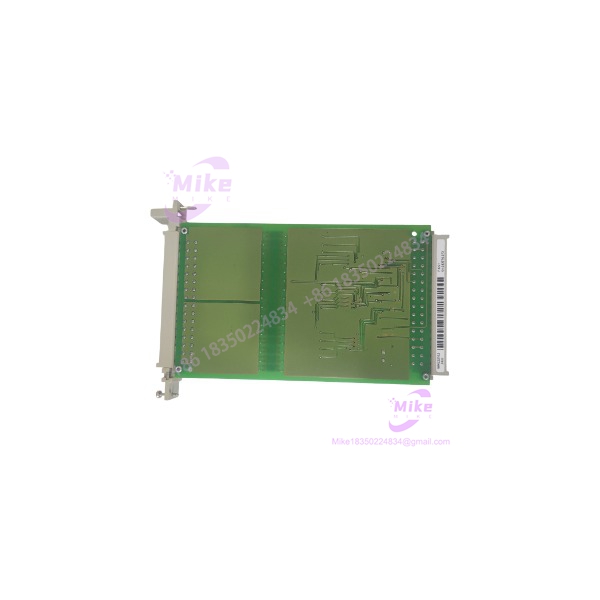

F3221 984322102
Key Technical Specifications
- Model: F3221
- Part Number: 984322102
- Manufacturer: HIMA Paul Hildebrandt
- System Platform: HIQuad H41q / H51q safety systems
- Product Type: Digital Input Module
- Input Channels: 16 digital input channels
- Input Voltage: 24 VDC typical
- Input Signal Type:
- 1-signals
- Mechanical contacts
- Safety field switches
- Isolation Type: Protective separation (ProtecS)
- Safety Capability: SIL 3 applications depending on system design and certification requirements
- Input Current: Approximately 8 mA for 1-signal input configuration
- Switching Time: Approximately 10 ms typical
- Rack Requirement: 4 TE module width
- Power Consumption:
- 5 VDC: approximately 70 mA
- 24 VDC: approximately 130 mA
- Diagnostic Functions:
- Channel monitoring
- Wiring fault detection
- Module fault indication
Global Sourcing & Live-Test SOP (Transparency Core)
For legacy safety hardware like the HIMA F3221 984322102, incoming inspection must be stricter than ordinary PLC spare handling.
A safety input module may appear functional while hidden issues remain inside the diagnostic circuitry, connector interface, or input isolation path.
Inbound Verification
Each incoming F3221 should receive:
- Exact model verification:
- 984322102
- Serial number recording
- Hardware label inspection
- Connector condition inspection
- PCB contamination check
- Storage damage review
Inspection points:
- Rear backplane connector pins
- Front terminal interface
- Module housing condition
- LED indicators
- Signs of previous repair
The replacement must match the original safety architecture. The is not interchangeable with every HIMA digital input module.
Live Simulation
A practical test setup should include:
- Authentic HIMA HIQuad rack
- Compatible power supply
- HIMA CPU/control module
- Simulated 24 VDC field signals
- Safety engineering workstation
Test sequence:
- Install the 984322102 module.
- Verify rack recognition.
- Apply controlled input signals.
- Confirm channel response.
- Check diagnostic reporting.
Simulation should cover:
- Input ON/OFF transitions
- Open-circuit conditions
- Signal loss detection
- Module fault indication
Diagnostics
Recommended equipment:
- Fluke industrial multimeter
- 24 VDC laboratory supply
- Continuity tester
- HIMA engineering tools
Diagnostic checks:
- Input threshold verification
- Channel LED operation
- Backplane communication
- Fault memory review
- Safety controller recognition
A simple voltage check is not enough. Safety input modules must be evaluated inside the actual controller environment.
Final Preparation
Before shipment:
- Record firmware/hardware identification if available.
- Document test results.
- Photograph terminal condition.
- Protect connector surfaces.
- Apply ESD-safe packaging.
- Maintain serial traceability.
For discontinued safety modules, documentation is often as valuable as the hardware itself.
The Field Engineer’s Pitfall Guide
❗ Do not replace 984322102 with another 16-channel module without checking certification and configuration.
A different HIMA input module may physically fit but have different diagnostic behavior, separation characteristics, or safety approval scope. I have seen commissioning delays caused by assuming “16DI is 16DI.”
❗ Do not ignore input wiring differences.
The expects specific field wiring arrangements. Copying terminal assignments from another HIMA module without verification can create false trips or unavailable safety channels.
❗ Do not overlook rack power limits.
Adding replacement modules into older HIQuad systems requires checking 5 VDC and 24 VDC supply capacity. A rack that was acceptable twenty years ago may not tolerate uncontrolled expansion.
Intent-Driven FAQ
What is the HIMA 984322102 used for?
The HIMA 984322102 is a 16-channel digital input module used in HIQuad H41q and H51q safety control systems for collecting safety-related field signals.
Is the a normal PLC input card?
No. The 984322102 is designed for safety automation systems. It includes safety-related diagnostics and protective separation features beyond standard PLC input modules.
Can I directly swap a failed with another unit?
Usually, but verify:
- Exact part number
- Hardware revision
- HIQuad rack compatibility
- Safety project configuration
- Field wiring
A physical replacement alone does not complete the safety validation process.
Does the support SIL 3 applications?
Yes, the is listed as a safety-related digital input module used within HIMA safety systems. The achievable SIL level depends on the complete safety loop design and certification requirements.
Does the have firmware?
The module is not a standalone programmable controller. Firmware handling depends on the overall HIMA system architecture and engineering environment.
Why would a replacement fail after installation?
Common causes include:
- Wrong module variant
- Incorrect terminal wiring
- Configuration mismatch
- Rack communication issue
- Faulty field device wiring
Is the 984322102 still available from OEM production?
The is generally treated as a legacy HIMA HIQuad component, so many facilities source tested surplus inventory or replacement stock for existing installations.
Procurement verdict: The HIMA 984322102 remains a critical spare for existing HIQuad safety systems. It is not simply a 16-channel input card — it is part of a certified safety architecture where correct identification, testing, and documentation directly affect plant availability.
For replacement sourcing, verify 984322102 part number, HIQuad rack compatibility, input wiring design, safety configuration, and validated test results before installation.
