Description
H6200A HIMA Product Introduction
The H6200A is an analog power isolator manufactured by HIMA Paul Hildebrandt GmbH (Germany), specifically designed for industrial automation and process control systems. It offers high precision, safety, and reliability, making it suitable for safety-critical and potentially explosive environments.
Core Functions
- Intrinsically Safe Power Supply
- Provides intrinsically safe power to HART-enabled instruments (e.g., pressure and temperature transmitters) in hazardous areas such as oil and gas plants and chemical facilities, preventing energy transfer that could trigger explosions.
- Signal Isolation and Transmission
- Isolates electrical connections between hazardous and safe areas, avoiding interference from ground potential differences and overvoltages entering the control system.
- Supports transparent transmission of HART digital signals, enabling bidirectional communication of 4-20mA analog signals and HART digital signals for remote configuration and diagnostics.
- High-Precision Signal Processing
- Converts 4-20mA signals from field instruments into data formats recognizable by the control system, ensuring data accuracy and stability..

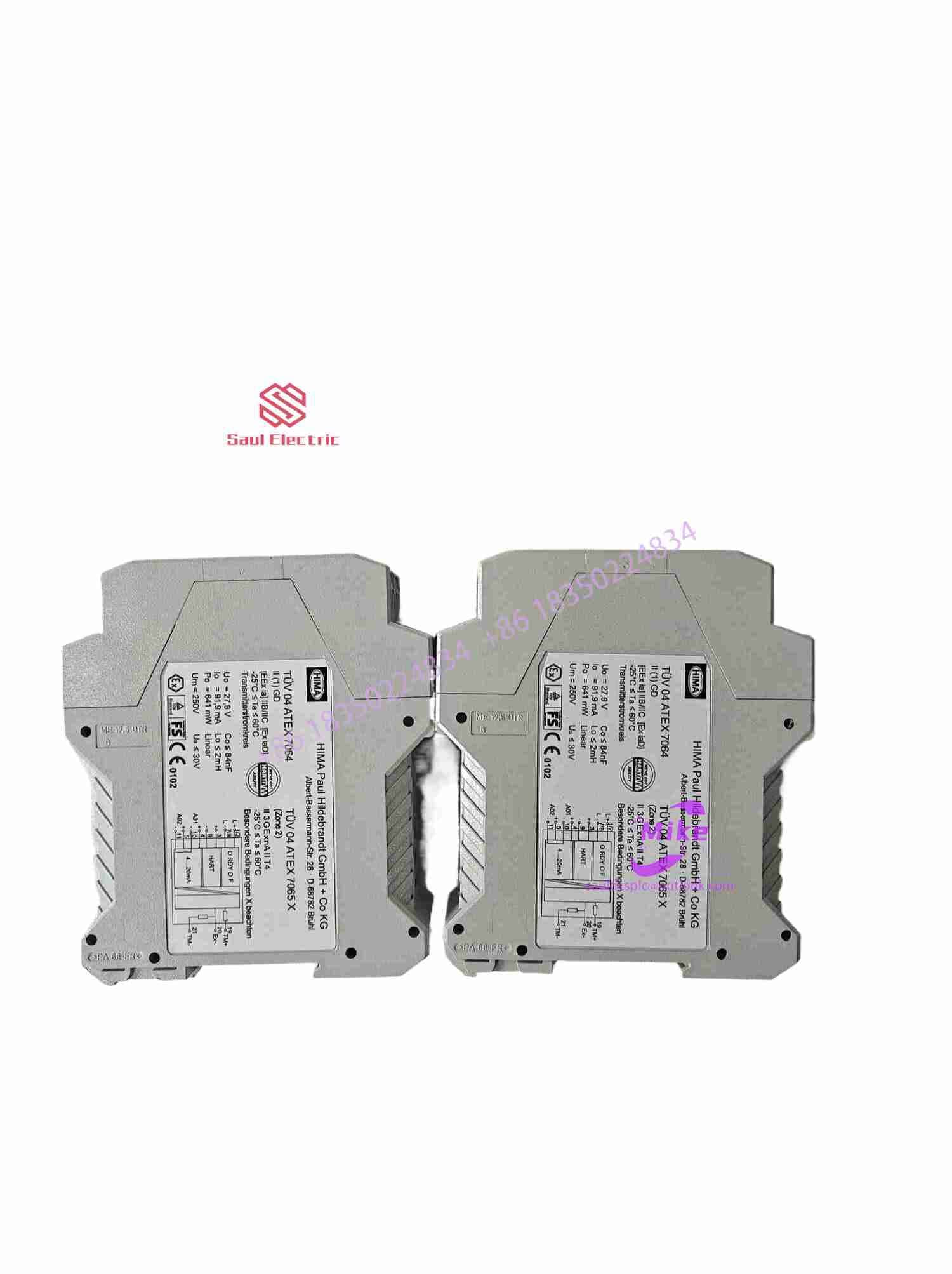

HIMA H6200A Transmitter Circuit 250V 4-20Ma
Technical Specifications
- Product Model: H6200A
- Manufacturer: HIMA Paul Hildebrandt GmbH (Germany)
- Product Category: Analog power isolator with HART output coupling
- Safety Integrity Level (SIL): SIL3 (compliant with IEC 61508 standard)
- Explosion Protection Certification: ATEX (suitable for potentially explosive environments)
- Input Signal: Power and control signals from the safe area
- Output Signal: Intrinsically safe power for HART instruments in hazardous areas, transmitting 4-20mA analog signals and HART digital signals to the safe area
- Isolation Method: Electrical isolation between input, output, and power supply
- Mounting: DIN rail mounting
- Operating Temperature: Refer to the product manual for specific parameters
- Wiring: Plug-in screw terminals
Application Scenarios
- Oil and Gas Industry
- Monitors pressure, temperature, and other parameters in hazardous areas such as offshore platforms and oil pipelines to ensure production safety.
- Chemical and Petrochemical Industry
- Monitors liquid levels, flow rates, and other variables in storage tank areas and reaction vessels in potentially explosive environments, preventing leaks or explosions.
- Energy and Power Industry
- Provides isolated power to safety-critical instruments in power plants and substations, ensuring stable equipment operation.
Innovative Features
- Integrated Design of Intrinsic Safety and Signal Isolation
- Combines power supply and signal isolation functions, simplifying system architecture and reducing installation and maintenance costs.
- HART Transparent Transmission Technology
- Supports HART digital signals superimposed on 4-20mA analog signals, enabling remote configuration and diagnostics and enhancing system intelligence.
- High Safety and Reliability Certifications
- Certified to SIL3 and ATEX standards, meeting stringent safety requirements for extreme industrial environments.
Typical Application Case
In a chemical plant’s storage tank area, multiple HART-enabled liquid level transmitters need to be monitored. Since the storage tank area is a hazardous location, intrinsic safety measures are required. The H6200A is installed in the control cabinet in the safe area, providing intrinsically safe power to HART liquid level transmitters in the hazardous area. It safely transmits 4-20mA liquid level signals and HART digital signals to the PLC control system. Through HART communication, the control system can read liquid level values, access transmitter diagnostic information, and perform remote configuration, ensuring safe and intelligent liquid level monitoring.
