HIMA HIMatrix F60 MI 24 01 | Safety Analog Input Module
Dynamic Product Introduction
A safety system can fail long before the controller stops running. Incorrect transmitter values, unstable proximity signals, or unnoticed wiring faults can silently compromise a protection function.
The HIMA HIMatrix F60 MI 24 01 is a modular safety input module designed for the HIMatrix F60 platform. It provides 24 configurable channels that can process analog current signals or digital/NAMUR-style inputs depending on channel configuration.
Unlike conventional PLC input cards, the F60 MI 24 01 operates inside a TÜV-certified safety architecture. Each channel configuration becomes part of the validated safety application, meaning replacement requires more than matching the physical connector. Engineering configuration, diagnostics, and safety validation all matter.
The module is commonly used where process values and field device states must enter a safety controller, including applications involving transmitters, proximity switches, process monitoring, and protective shutdown functions. The module supports safety-related applications up to SIL 3 according to IEC 61508, IEC 61511, and IEC 62061.
In field maintenance, the common mistake is assuming every 24-channel input module behaves the same. The signal type, input diagnostics, transmitter supply arrangement, and safety logic mapping must match the original installation.

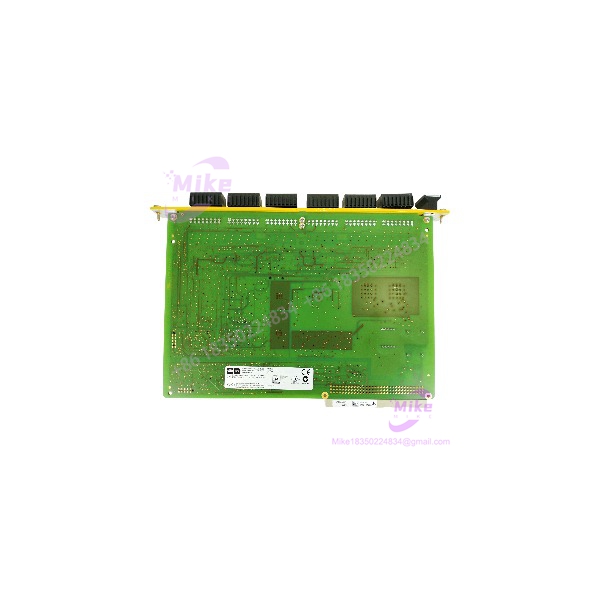

F60 MI 24 01
Key Technical Specifications
- Model: F60 MI 24 01
- Manufacturer: HIMA Paul Hildebrandt GmbH
- System Platform: HIMatrix F60 Modular Safety System
- Module Type: Safety-related mixed input module
- Input Channels: 24 channels
- Analog Input Function:
- 0–20 mA
- 4–20 mA current measurement
- Digital Input Function:
- NAMUR proximity switches
- Safety proximity switches
- Resistor-wired contacts
- Safety Capability: Up to SIL 3
- Input Resolution: 12-bit analog conversion
- Input Resistance: Approximately 200 Ω for analog channels
- Measurement Accuracy: Approximately ±0.2% at 25°C
- Operating Voltage: 24 VDC supply architecture
- Installation Location: F60 rack I/O slots 3–8
- Engineering Tools:
- SILworX
- ELOP II Factory depending on firmware generation
- Operating Temperature: 0°C to +60°C
Global Sourcing & Live-Test SOP (Transparency Core)
For surplus HIMA F60 MI 24 01 inventory, a simple continuity test is not acceptable.
Safety input modules can appear functional while having inaccurate analog conversion, unstable diagnostics, or incorrect configuration memory.
Inbound Verification
Each incoming MI 24 01 should receive:
- Exact model verification
- Hardware revision recording
- Firmware revision capture
- Serial number documentation
- Front connector inspection
- PCB condition inspection
Inspection points:
- Backplane connector condition
- Terminal blocks
- Housing damage
- Storage contamination
- Signs of overheating
The module identity must be confirmed because the F60 platform contains multiple input and output modules with similar mechanical formats.
Live Simulation
A proper validation requires an F60 test rack.
Recommended setup:
- Authentic HIMatrix F60 backplane
- Compatible CPU module
- 24 VDC safety power supply
- SILworX or ELOP II Factory engineering environment
- Precision current simulator
Testing sequence:
- Install MI 24 01 into approved slot.
- Confirm module recognition.
- Verify diagnostic status.
- Configure test channels.
- Apply simulated input signals.
Analog channel testing:
- Apply 4 mA.
- Verify measurement.
- Apply 12 mA.
- Verify scaling.
- Apply 20 mA.
- Confirm full-range response.
Digital/NAMUR testing:
- Simulate switching states.
- Verify channel transitions.
- Check fault detection behavior.
The analog and digital functions are configuration-dependent; they cannot simply be mixed on the same channel without correct parameter setup.
Diagnostics
Recommended equipment:
- Fluke precision multimeter
- Current loop calibrator
- 24 VDC laboratory supply
- HIMA engineering workstation
Diagnostic checks:
- Firmware identification
- Channel status verification
- Open-circuit detection
- Short-circuit monitoring
- Analog scaling accuracy
- Safety application communication
The MI 24 01 includes diagnostic capability for input conditions and supports configurable limit monitoring for analog signals.
Final Preparation
Before shipment:
- Record hardware revision.
- Record firmware information.
- Document tested channels.
- Protect connectors.
- Apply ESD-safe packaging.
- Maintain serial traceability.
For safety system spare parts, test documentation reduces commissioning risk.
The Field Engineer’s Pitfall Guide
❗ Do not replace the MI 24 01 without checking channel configuration.
A channel configured for 4–20 mA measurement cannot simply replace a channel wired for NAMUR switching. I have seen shutdown systems generate unexpected diagnostics because the replacement module was installed without restoring the original configuration.
❗ Do not ignore SIL application validation after replacement.
The hardware may communicate correctly while the safety project checksum, parameter set, or approved configuration does not match. Safety controllers require documented verification after module replacement.
❗ Do not treat analog transmitter wiring like standard PLC analog input wiring.
The MI 24 01 is part of a safety architecture. Shielding, transmitter supply, grounding, and fault monitoring methods affect the final safety function. Incorrect wiring can create measurement drift or diagnostic trips.
Intent-Driven FAQ
What is the HIMA F60 MI 24 01 used for?
The HIMA F60 MI 24 01 is a safety input module for the HIMatrix F60 modular controller system. It processes analog current signals and configurable digital/NAMUR inputs for safety applications.
How many channels does the MI 24 01 provide?
The module provides 24 input channels. Each channel can be configured according to the required input function.
Can the MI 24 01 measure 4–20 mA signals?
Yes. The module supports 0/4–20 mA analog current measurement.
Is the MI 24 01 a normal PLC analog input card?
No. It is a safety-related input module designed for the HIMatrix F60 safety platform.
Can I directly replace an old MI 24 01?
Only after confirming:
- Hardware revision
- Firmware compatibility
- SILworX/ELOP project compatibility
- Channel configuration
- Safety validation requirements
Does the MI 24 01 support NAMUR sensors?
Yes. Configured channels can support NAMUR proximity switches and related safety input devices.
What should be tested before installing a used MI 24 01?
A proper test should include:
- F60 rack communication
- All configured input channels
- 4–20 mA accuracy verification
- NAMUR/digital simulation where applicable
- Diagnostic function testing
- Safety project validation
Procurement verdict: The HIMA HIMatrix F60 MI 24 01 is a specialized safety input module designed for maintaining existing F60 safety architectures. Its value is not only the 24 input channels — it is the ability to integrate measured process values and field device states into a certified safety control environment.
For replacement sourcing, verify the complete application: MI 24 01 model identity, F60 rack compatibility, firmware generation, channel configuration, transmitter wiring, and safety validation records. In safety automation, the correct module is only the first step; the validated system behavior is what matters.
