HIMA F3236 | HIQuad Safety Digital Output Module
Dynamic Product Introduction
A safety controller can make the correct decision and still fail to protect the process if the output stage cannot reliably command the final element.
The HIMA F3236 is a HIQuad-series safety digital output module designed to interface safety logic with field devices such as shutdown valves, solenoids, alarms, and protective actuators. It converts controller decisions into controlled electrical outputs while maintaining the diagnostic behavior expected in safety instrumented systems.
The F3236 is not a conventional PLC output card. Standard PLC modules focus mainly on switching loads. Safety output modules must also consider fault detection, output monitoring, de-energize behavior, and system diagnostics.
In existing HIMA installations, the F3236 is typically maintained as a critical spare because a failed output module can prevent a safety loop from returning to service. Replacing it requires confirmation of rack compatibility, wiring arrangement, safety project configuration, and field load requirements.
Honestly, many troubleshooting delays come from treating safety outputs like ordinary relay cards. The hardware may fit, but the protection function depends on the complete validated architecture.

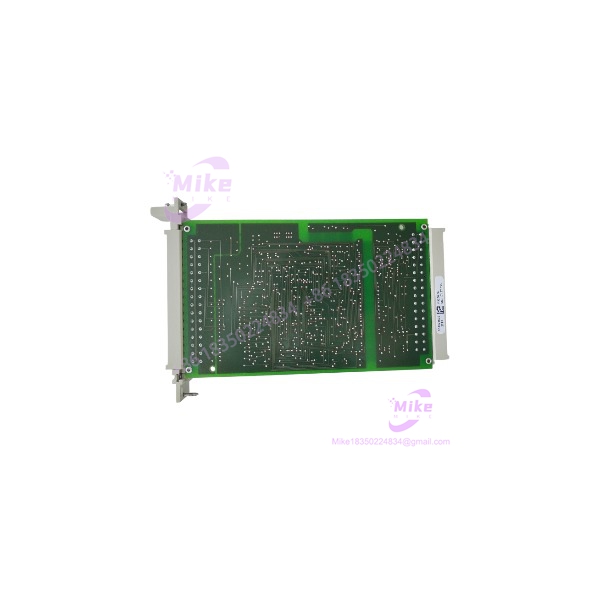

F3236
Key Technical Specifications
- Model: F3236
- Manufacturer: HIMA Paul Hildebrandt
- System Family: HIQuad Safety System
- Module Type: Safety Digital Output Module
- Output Channels: 8 digital output channels
- Output Voltage: 24 VDC nominal
- Application Areas:
- Emergency shutdown systems (ESD)
- Safety instrumented systems (SIS)
- Process shutdown control
- Protective interlocks
- Safety Capability: SIL 3 applications depending on complete system design and validation
- Output Monitoring: Safety-related diagnostic supervision
- Mounting: HIQuad rack-based installation
- Logic Interface: Communication through HIMA safety controller backplane
- Diagnostics:
- Output channel monitoring
- Module fault indication
- System diagnostic reporting
- Field circuit supervision
- Typical Loads:
- Solenoid valves
- Actuator interfaces
- Alarm devices
- Shutdown equipment
Global Sourcing & Live-Test SOP (Transparency Core)
For legacy safety output modules such as the HIMA F3236, procurement inspection must go beyond checking whether the LEDs illuminate.
An output module can appear functional while having degraded switching components, damaged terminals, or inaccurate diagnostic behavior.
Inbound Verification
Each incoming should receive:
- Exact model verification
- Hardware identification recording
- Serial number capture
- Connector inspection
- Housing inspection
- PCB condition evaluation
Inspection points:
- Backplane connector pins
- Front terminal block condition
- Output terminals
- Mechanical locking features
- Signs of overheating or contamination
The replacement must match the original HIQuad system design. Similar-looking HIMA output modules are not automatically interchangeable.
Live Simulation
A practical test setup should include:
- Authentic HIMA HIQuad rack
- Compatible controller hardware
- 24 VDC supply
- Simulated actuator loads
- Engineering workstation
Test sequence:
- Install the module.
- Confirm rack recognition.
- Load the approved test configuration.
- Command output transitions.
- Verify diagnostic response.
Functional testing should include:
- Output ON/OFF switching
- Load simulation
- Fault simulation
- Channel diagnostic verification
For actuator interfaces, a resistive test load or approved simulator is preferred over connecting unknown field equipment directly.
Diagnostics
Recommended equipment:
- Fluke industrial multimeter
- 24 VDC bench supply
- Current measurement equipment
- HIMA engineering tools
Diagnostic checks:
- Output voltage verification
- Channel switching behavior
- Backplane communication
- Fault reporting
- Load response
A simple voltage measurement is not enough. Safety outputs must be checked for correct diagnostic behavior inside the controller system.
Final Preparation
Before shipment:
- Record module identification.
- Document test results.
- Protect connectors.
- Apply ESD-safe packaging.
- Maintain traceability records.
For discontinued safety platforms, a tested spare with clear inspection history reduces restoration time.
The Field Engineer’s Pitfall Guide
❗ Do not install an without confirming actuator load compatibility.
Safety output modules are designed for specific current ranges and load characteristics. I have seen replacement attempts fail because a solenoid valve with excessive inrush current was connected directly without checking the output specifications.
❗ Do not ignore de-energize philosophy.
Many SIS applications use a defined fail-safe state. Changing wiring or output behavior without reviewing the safety design can create an unsafe operating condition.
❗ Do not assume every HIQuad output module uses the same terminal mapping.
The module may physically install into the rack while the field wiring differs. Always verify channel assignments before energizing outputs.
Intent-Driven FAQ
What is the HIMA used for?
The is a safety digital output module used in HIQuad safety systems to control field devices such as shutdown valves, solenoids, and protective actuators.
Is the a standard PLC output card?
No. The is designed for safety automation applications and includes safety-related diagnostics beyond normal PLC switching functions.
Can I directly replace a failed ?
Only after confirming:
- Exact HIMA module type
- Hardware revision
- HIQuad rack compatibility
- Safety project configuration
- Field wiring
- Connected load requirements
Does the support SIL 3 applications?
The HIQuad platform is designed for high-integrity safety applications, including SIL 3 implementations when the complete safety loop is correctly engineered and validated.
Does the contain user logic?
No. The safety controller executes the application logic. The performs the safety output interface function.
Why would an replacement show faults?
Common causes include:
- Incorrect output module variant
- Field load mismatch
- Wiring errors
- Configuration mismatch
- Backplane communication issues
Is the HIMA still available as new OEM stock?
The belongs to the legacy HIQuad generation. Many operating plants maintain availability through tested surplus inventory, refurbished units, or lifecycle replacement programs.
Procurement verdict: The is a critical HIQuad safety output component used where reliable actuator control is required. It should be sourced and tested as a safety-system element, not treated as a standard PLC output card.
Before installation, verify compatibility, output loading, terminal assignment, HIQuad configuration, diagnostic behavior, and documented test results to protect the integrity of the existing SIS architecture.
