HIMA H6200 | HART Analog Repeater Power Supply
Dynamic Product Introduction
The HIMA H6200 should not automatically be treated as a safety PLC CPU. The strongest certification documentation available identifies H6200A specifically as a HART analog repeater power supply. That places the device in the instrumentation interface layer, where it handles the relationship between field transmitters and the safety/control system rather than executing the main safety application itself.
This distinction matters when sourcing obsolete HIMA hardware. Several current reseller pages label H6200A as a central safety CPU, but that description conflicts with the HIMA component classification reproduced in an ABS product-design assessment, where H6200A is explicitly listed as “HART, Analog repeater power supply.”
For procurement, therefore, the safe approach is simple: verify whether the physical unit is marked H6200 or H6200A and obtain the complete HIMA article number before declaring it interchangeable with another HIMA module.

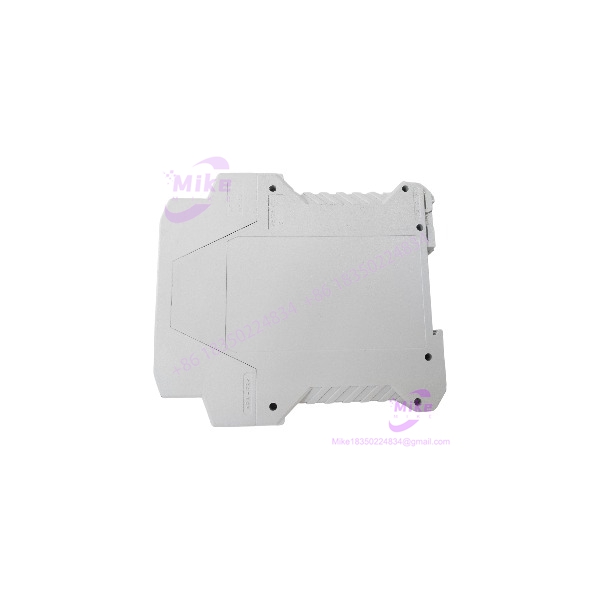

H6200
Key Technical Specifications
- HIMA designation: H6200A in the strongest available technical documentation
- Functional classification: HART analog repeater power supply
- Manufacturer: HIMA Paul Hildebrandt GmbH + Co. KG
- Application: Process instrumentation and safety-related automation systems
- Signal technology: Analog instrumentation with HART communication
- System role: Field instrumentation interface rather than primary safety-logic CPU
- HART function: Supports HART-enabled instrumentation within the applicable system architecture
- Power-supply function: Provides the repeater/transmitter interface function associated with HART analog signals
- Isolation: Verify the exact electrical isolation arrangement from the unit-specific documentation before installation
- Safety application: Used within HIMA safety-system architectures; complete SIL performance belongs to the engineered safety function, not the module in isolation
- Exact electrical ratings: Must be verified from the H6200/ article-specific documentation
- Exact terminal assignment: Verify against the nameplate/manual revision before wiring
The available HIMA/ABS documentation does not provide enough evidence to safely publish detailed voltage, current, terminal, or channel-count figures for a generic “H6200” designation. Those values should not be guessed from similarly named HIMA modules.
Global Sourcing & Live-Test SOP
1. Inbound Verification
- Confirm the complete model marking.
- Determine whether the unit is H6200 or .
- Photograph the HIMA nameplate and article/order number.
- Record serial number and hardware revision.
- Inspect terminal blocks for corrosion, overheating, or previous rework.
- Check the enclosure for cracks or deformation.
- Compare the terminal layout with the customer’s removed unit.
2. Instrumentation Compatibility
- Identify the connected field transmitter.
- Confirm whether the transmitter uses HART communication.
- Verify the required analog signal range from the original engineering documentation.
- Confirm transmitter power requirements.
- Check whether the existing safety system expects the H6200/ interface specifically.
3. Bench Testing
- Do not apply an arbitrary 24 VDC supply until the exact hardware revision and terminal assignment have been verified.
- Check continuity and insulation where appropriate.
- Test the analog signal path using a calibrated current source.
- Verify that the expected analog value reaches the receiving control system.
- If HART communication is required, verify communication using an appropriate HART communicator/test setup.
4. System Simulation
- Simulate normal transmitter output.
- Test low-range and high-range analog values.
- Check the response to an open-circuit transmitter condition.
- Check the response to abnormal signal conditions according to the safety-system design.
- Verify HART communication without disturbing the safety logic.
5. Final Validation
- Compare the replacement’s diagnostic behavior with the original unit.
- Confirm correct transmitter power.
- Verify analog scaling in the engineering configuration.
- Record hardware revision and HART configuration.
- Complete the site’s required proof-test procedure before returning the safety loop to service.
Field Engineer’s Pitfall Guide
❗ Do not confuse with a HIMA safety CPU.
This is the biggest sourcing problem with this part. Some reseller pages currently describe as a central CPU, but HIMA/ABS documentation identifies as a HART analog repeater power supply. Use the physical nameplate and controlled documentation as the deciding evidence.
❗ Do not infer the electrical ratings from another HIMA H6000-series module.
HIMA uses similar-looking numerical designations across different hardware functions. Do not assume the power supply, analog range, terminal assignment, or channel configuration from a different module.
❗ Do not commission the module as an isolated “SIL 3 device.”
A safety integrity claim applies to the complete engineered safety function, including sensors, interface hardware, logic solver, final elements, diagnostics, proof testing, and architecture. The ‘s presence in a HIMA safety system does not by itself establish the SIL achieved by the complete loop.
Intent-Driven FAQ
What is HIMA ?
The available documentation points to as the relevant HIMA designation. It is classified as a HART analog repeater power supply, rather than a general-purpose PLC CPU.
Is a HIMA HIMax CPU?
The strongest certification evidence available says no. It identifies as a HART analog repeater power supply. Some reseller listings make a different CPU claim, but that claim should not be used as the technical basis for procurement without additional HIMA documentation.
What does the do?
Its documented role is to provide the HART analog repeater/power-supply interface used with process instrumentation. It belongs on the instrumentation/interface side of the safety architecture rather than being treated as the primary logic processor.
Does support HART transmitters?
Yes. The HIMA/ABS classification specifically identifies it as a HART analog repeater power supply. The exact transmitter wiring and HART operating arrangement should still be checked against the applicable HIMA documentation.
Can I replace with ?
Do not assume that from the model number alone. First verify the physical marking, complete HIMA article number, hardware revision, terminal arrangement, and system documentation. If the customer’s unit is genuinely marked only , obtain a nameplate photograph before treating as the replacement.
Is still available from HIMA?
The available evidence is not sufficient to establish current OEM availability for a bare designation. HIMA’s current product portfolio focuses on safety controllers and safety solutions, while legacy HIMA hardware remains available through specialist industrial channels.
What should I request before buying a used /?
Request:
- Clear nameplate photograph
- Full HIMA article/order number
- Hardware revision
- Serial number
- Terminal photographs
- HART functionality test, if applicable
- Analog-loop test results
- Physical condition
- Previous service/refurbishment history
- Exact warranty and return terms
Buyer Verification Checklist
Before listing or purchasing this part, verify:
- Exact marking: vs.
- HIMA article number
- Hardware revision
- HART interface function
- Analog signal configuration
- Terminal arrangement
- Transmitter compatibility
- Isolation requirements
- System/rack compatibility
- Functional test evidence
- Firmware/configuration information where applicable
- Warranty condition
For , the model suffix is not a detail to gloss over. The available technical evidence supports as a HART analog repeater power supply, while conflicting reseller descriptions create a real identification risk. A clear nameplate photograph should be treated as the final verification step before publishing exact electrical specifications or claiming replacement compatibility.
