HIMA F3 AIO 8/4 01 | Safety Remote I/O Module
Dynamic Product Introduction
A bad analog channel does not always announce itself with a clean diagnostic alarm. In a safety-related process installation, a drifting transmitter value, incorrect scaling, or a communication fault between the remote I/O and controller can create a much more difficult troubleshooting problem. The HIMA HIMatrix F3 AIO 8/4 01 is designed for precisely this distributed I/O role, combining eight analog inputs and four analog outputs with network communication in a compact remote-I/O enclosure.
The F3 AIO 8/4 01 accepts 0–10 VDC and 0/4–20 mA analog input signals and uses 12-bit conversion. HIMA specifies approximately 45 µs sampling time, while the remote I/O has a specified response time of at least 20 ms. Its four analog outputs are 4–20 mA devices with 12-bit resolution and a maximum load impedance of 600 Ω.
Communication is handled through two RJ-45 10/100Base-T Ethernet ports with an integrated switch, and the remote I/O communicates with its associated controller via HIMA SafeEthernet. This is not a generic PLC analog card that can simply be dropped into an arbitrary rack. The engineering context matters—especially the controller configuration, communication parameters, application program, and safety validation.

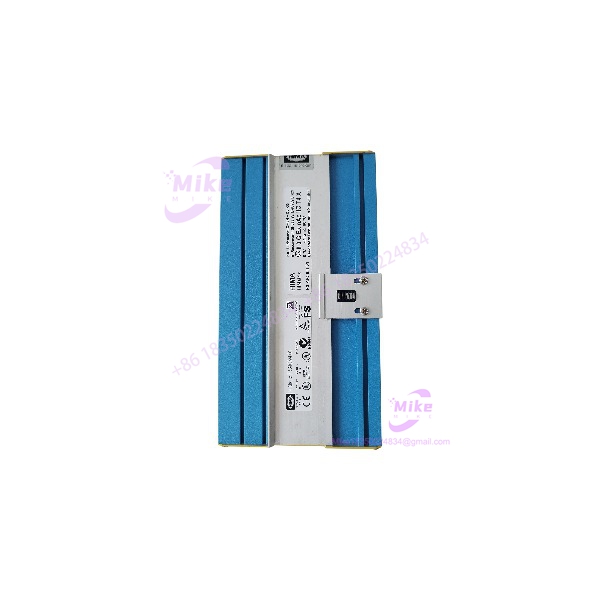

F3 AIO 8/4 01
Key Technical Specifications
- Model: F3 AIO 8/4 01
- System: HIMatrix
- Function: Remote analog I/O
- Analog Inputs: 8
- Input Type: 0–10 VDC; 0/4–20 mA using 500 Ω shunt
- Input Resolution: 12-bit
- Input Sampling Time: Approximately 45 µs
- Analog Outputs: 4
- Output Type: 4–20 mA
- Output Resolution: 12-bit
- Maximum Output Load: 600 Ω
- Ethernet: 2 × RJ-45, 10/100Base-T
- Communication: SafeEthernet
- Operating Voltage: 24 VDC, -15% to +20%
- Maximum Current: Approximately 0.8 A at maximum load
- Idle Current: Approximately 0.4 A at 24 V
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Protection: IP20
- Dimensions: Approximately 207 × 114 × 97 mm
- Weight: Approximately 1 kg
One important distinction: the four analog outputs are explicitly identified as non-safety-related and have a common safe shutdown. The eight analog inputs are non-galvanically separated. That distinction should remain visible in the control-system design documentation rather than being lost during a replacement exercise.
Global Sourcing & Live-Test SOP
For surplus or replacement F3 AIO 8/4 01 inventory, powering up the unit and checking whether its LEDs illuminate is not sufficient QC.
Inbound Verification
- Confirm the enclosure marking reads F3 AIO 8/4 01 rather than a visually similar F3 variant.
- Record serial number and available hardware identification.
- Compare connector arrangement and housing condition against HIMA documentation.
- Inspect Ethernet connectors, terminal connections, enclosure screws, earthing provisions, and signs of moisture or corrosion.
- Verify whether the unit corresponds to an ELOP II or SILworX programming environment before declaring it interchangeable.
- Keep the actual unit identification and configuration records with the procurement file.
HIMA documentation identifies separate ordering variants for ELOP II and SILworX, as well as F3 AIO 8/4 011 and 012 variants for extended-temperature/subsea applications. Do not collapse these variants into one generic “F3 AIO” description.
Live Simulation
A proper test should use a compatible HIMatrix test environment. Apply the specified 24 VDC supply and verify startup behavior, Ethernet link status, communication, and diagnostic indications.
For the eight analog inputs, simulate both voltage and current signals across the specified ranges. Check representative values such as 0%, 25%, 50%, 75%, and 100% of span. For the four outputs, command representative 4–20 mA values and measure the actual loop current using a calibrated multimeter.
Diagnostics
- Verify all 8 analog inputs individually.
- Test 0–10 VDC input behavior.
- Test 0/4–20 mA input behavior.
- Verify the 12-bit scaling response.
- Exercise all 4 analog outputs.
- Apply representative output loads up to the application’s required level, without exceeding the specified 600 Ω maximum.
- Confirm SafeEthernet communication with the appropriate controller/test environment.
- Check Ethernet link negotiation on both RJ-45 ports.
- Record diagnostic behavior during power cycling.
- Perform an extended heat run before release.
The transmitter-supply section also deserves attention. The unit provides eight switchable 8.2 VDC / 26 VDC supply outputs, with current limiting that switches the output off above the specified threshold.
Final Prep
Record hardware identification, configuration information, observed diagnostic status, and test results. Protect the enclosure and connectors during shipment, use ESD-safe handling, and seal the unit only after the test record has been completed.
For safety-related installations, replacement should not be treated as a simple commercial swap. The final acceptance process belongs to the site’s functional-safety and change-management procedure.
The Field Engineer’s Pitfall Guide
❗ Do not confuse the F3 AIO 8/4 01 with the 011 or 012 variants. The standard F3 AIO 8/4 01 is specified for 0–60°C, while the 011 version extends the operating range to -20–60°C, and the 012 version is a subsea variant with different construction. I’ve seen replacement specifications written simply as “F3 AIO 8/4,” which is not enough information for procurement.
❗ Do not assume a programming-tool mismatch is harmless. HIMA documentation identifies F3 AIO 8/4 01 variants associated with ELOP II and SILworX. Before commissioning a replacement, confirm the engineering environment, configuration, IP parameters, system ID, and application expectations. A hardware match without a configuration match can leave you with a perfectly healthy module that the controller does not recognize correctly.
❗ Do not treat the analog channels as interchangeable generic 4–20 mA I/O. The inputs support both voltage and current measurement, use a defined 500 Ω shunt for current operation, and have specific scaling and accuracy limits. The four outputs are non-safety-related and have a 600 Ω maximum load. I’ve seen commissioning teams waste hours chasing “PLC scaling problems” when the real issue was field wiring and loop loading.
Intent-Driven FAQ
Is the HIMA F3 AIO 8/4 01 a safety I/O module?
It is a HIMatrix remote I/O unit used in safety-related systems, but its channels do not all have the same safety classification. HIMA identifies the four analog outputs as non-safety-related, while the analog input section has its own specified safety-related accuracy. The application architecture and certification requirements therefore need to be reviewed before assigning a safety function to a channel.
What signals can the F3 AIO 8/4 01 measure?
The eight analog inputs support 0–10 VDC and 0/4–20 mA signals. For current inputs, the documentation specifies a 500 Ω shunt. The input resolution is 12-bit.
Can I replace an F3 AIO 8/4 01 with an F3 AIO 8/4 011?
Not automatically. The 011 is an extended-temperature variant intended for -20°C to +60°C, while the standard F3 AIO 8/4 01 is specified for 0°C to +60°C. Hardware application, certification, engineering configuration, and environmental requirements all need to agree before substitution.
Does the F3 AIO 8/4 01 use Profibus?
The documented network interface is two 10/100Base-T Ethernet ports, and the unit communicates with its associated controller using SafeEthernet. It should therefore not be purchased as a generic Profibus analog remote I/O replacement.
What happens if I lose the IP configuration?
The unit includes a physical reset key. HIMA documentation describes a reset procedure that can restore default connection parameters and administrator access after a controlled reboot. This should be performed carefully because restoring defaults can affect the unit’s configured IP address and system ID.
Can I connect a large load to the analog outputs?
Stay within the documented 600 Ω maximum load impedance for the four analog outputs. At the same time, remember that these outputs are non-safety-related and have a common safe shutdown. The field loop design—not just the module rating—determines whether the installation is acceptable.
What should I verify before buying a surplus F3 AIO 8/4 01?
At minimum, verify the exact F3 AIO 8/4 01 designation, hardware condition, engineering-tool compatibility, Ethernet communication, all eight analog inputs, all four analog outputs, 24 VDC power behavior, and configuration data.
Procurement verdict: The HIMA HIMatrix F3 AIO 8/4 01 is a specialized remote analog I/O device, not a generic PLC expansion card. Its combination of 8 analog inputs, 4 analog outputs, SafeEthernet, 24 VDC operation, and HIMatrix-specific configuration makes exact model verification mandatory. For a replacement purchase, matching the complete engineering context is more important than matching the enclosure and connector layout alone.
