HIMA F3322 | HIQuad Safety Analog Input Module
Dynamic Product Introduction
A safety system does not fail only when a processor stops. A degraded analog input can be just as dangerous because the controller may receive inaccurate process information while the hardware appears healthy.
The HIMA F3322 is a HIQuad-series safety analog input module designed for acquiring continuous process signals from industrial transmitters and measurement devices. Typical applications include pressure monitoring, temperature supervision, flow protection, and process limit detection inside safety instrumented systems.
Unlike standard PLC analog input cards, the F3322 operates within a safety-rated architecture where diagnostics, signal integrity, and fault handling are part of the design requirement. The module does not simply convert a current value into a number — it supports the safety controller’s decision-making process.
For legacy HIMA installations, the F3322 remains an important lifecycle spare. Replacing a safety analog module requires verification of signal type, channel configuration, hardware compatibility, and the existing safety application.
In field recovery work, I have seen engineers replace analog modules based only on channel count. The cabinet powered up, but the transmitter scaling, diagnostic behavior, or safety validation process prevented a successful restart.

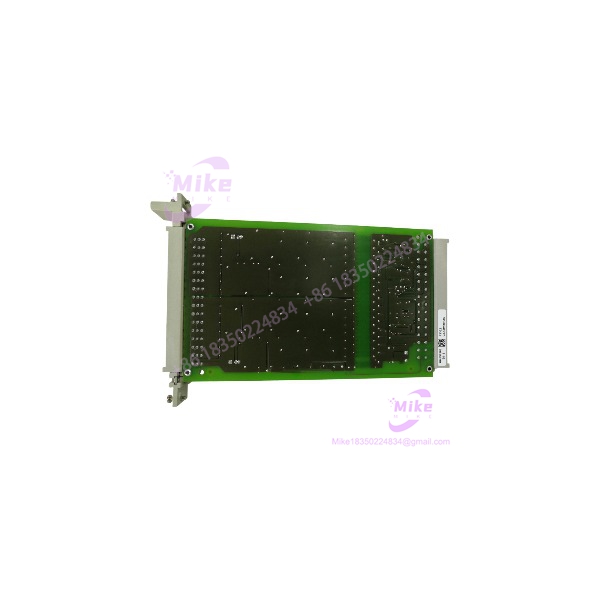

F3322
Key Technical Specifications
- Model: F3322
- Manufacturer: HIMA Paul Hildebrandt
- System Family: HIQuad Safety System
- Module Type: Safety Analog Input Module
- Input Channels: 8 analog input channels
- Signal Type:
- 4–20 mA process signals
- Analog transmitter inputs
- Typical Applications:
- Pressure transmitters
- Temperature transmitters
- Level measurement
- Flow monitoring
- Process safety alarms
- Safety Capability: Suitable for SIL-rated applications depending on complete system design
- Mounting: HIQuad rack installation
- Communication: HIMA backplane interface
- Diagnostics:
- Channel monitoring
- Module fault detection
- Signal range supervision
- System diagnostic reporting
- Engineering Environment: HIMA safety engineering tools
- Application Area:
- Emergency shutdown systems (ESD)
- Safety instrumented systems (SIS)
- Process protection systems
Global Sourcing & Live-Test SOP (Transparency Core)
Safety analog modules require careful evaluation because analog failures are often more difficult to identify than digital failures.
A module can pass a simple power test while producing inaccurate measurements, unstable readings, or incorrect diagnostics.
Inbound Verification
Each incoming HIMA F3322 should receive:
- Exact model verification
- Hardware identification recording
- Serial number capture
- Connector inspection
- Housing inspection
- PCB condition review
Inspection points:
- Backplane connector pins
- Terminal interface
- Analog input terminals
- Signs of overheating
- Moisture or contamination damage
The replacement module must match the original HIQuad configuration. A similar analog input card may not provide the same diagnostic characteristics.
Live Simulation
A proper validation setup should include:
- Authentic HIMA HIQuad rack
- Compatible controller hardware
- Precision current simulator
- Engineering workstation
- Calibrated measurement equipment
Test procedure:
- Install the module.
- Verify controller recognition.
- Apply simulated analog signals.
- Confirm measurement accuracy.
- Review diagnostic status.
Simulation should include:
- 4 mA input check
- 12 mA mid-scale verification
- 20 mA full-scale verification
- Signal interruption testing
- Fault response testing
Diagnostics
Recommended equipment:
- Fluke process calibrator
- Fluke industrial multimeter
- Precision current source
- HIMA engineering tools
Diagnostic checks:
- Analog scaling verification
- Input stability
- Channel response
- Backplane communication
- Fault reporting
A process transmitter loop should always be checked together with the input module. The module may be healthy while the actual fault is in wiring, shielding, or the transmitter.
Final Preparation
Before shipment:
- Record hardware details.
- Document test results.
- Protect terminal connections.
- Apply ESD-safe packaging.
- Maintain traceability records.
For legacy SIS hardware, inspection history helps reduce commissioning uncertainty.
The Field Engineer’s Pitfall Guide
❗ Do not replace the without checking transmitter signal requirements.
A 4–20 mA loop problem is not always caused by the input module. I have seen plants replace expensive safety hardware when the actual issue was a failed transmitter power supply or damaged field cable.
❗ Do not ignore analog scaling differences.
Replacing a module without confirming engineering configuration can create incorrect process values. A transmitter reading 50% may appear as an incorrect safety threshold if scaling parameters are not verified.
❗ Do not overlook shielding and grounding.
Analog safety signals are sensitive to electrical noise. Poor cable shielding, incorrect grounding, or damaged instrumentation wiring can create unstable readings that look like module faults.
Intent-Driven FAQ
What is the HIMA used for?
The is a safety analog input module used in HIQuad systems to process continuous process signals from industrial transmitters.
Is the a normal PLC analog input card?
No. The is designed for HIMA safety automation platforms where diagnostics and safety application requirements are considered.
What type of signals does the handle?
The is typically used for industrial analog measurement signals such as 4–20 mA transmitter inputs.
Can I directly replace an existing ?
Only after verifying:
- Exact module type
- Hardware revision
- HIQuad rack compatibility
- Safety project configuration
- Analog signal requirements
Does the support SIL applications?
The HIMA HIQuad platform supports SIL-rated safety applications when the complete safety lifecycle, system architecture, and validation process meet the required standards.
Does the contain user logic?
No. The HIMA controller executes the safety application logic. The provides analog signal acquisition and diagnostic functions.
Why would an replacement show incorrect values?
Possible causes include:
- Incorrect scaling parameters
- Wrong transmitter range
- Wiring errors
- Shielding problems
- Configuration mismatch
- Faulty field instrument
Procurement verdict: The is a specialized HIQuad safety analog input module intended for maintaining existing SIS installations. It should be evaluated as part of the complete safety measurement chain, not as an ordinary analog card.
Before installation, verify compatibility, transmitter specifications, signal scaling, HIQuad configuration, diagnostics, and documented functional testing to protect the reliability of the existing safety system.
