HIMA F3331 | 16-Channel 24V Safety Output Module
Dynamic Product Introduction
When a shutdown command reaches the controller but never reaches the field device, the output interface becomes the weakest point in the safety chain.
The HIMA F3331 is a HIQuad safety digital output module designed to connect safety logic execution with external process devices such as solenoid valves, relays, alarms, and protective actuators. It provides controlled switching functions inside HIMA’s safety automation environment.
Unlike ordinary PLC output cards, the F3331 is engineered for applications where output reliability, fault detection, and predictable failure behavior are required. The module works as part of a complete safety architecture rather than acting as a simple signal expansion device.
For plants operating older HIMA HIQuad systems, keeping an available F3331 replacement can reduce extended shutdown periods. A failed safety output channel may prevent a plant from completing a safe restart sequence, even when the main controller remains operational.
In field service work, I have seen technicians replace output hardware successfully from a power perspective but fail during functional testing because the actuator wiring, safety configuration, or output assignment was different from the original installation.

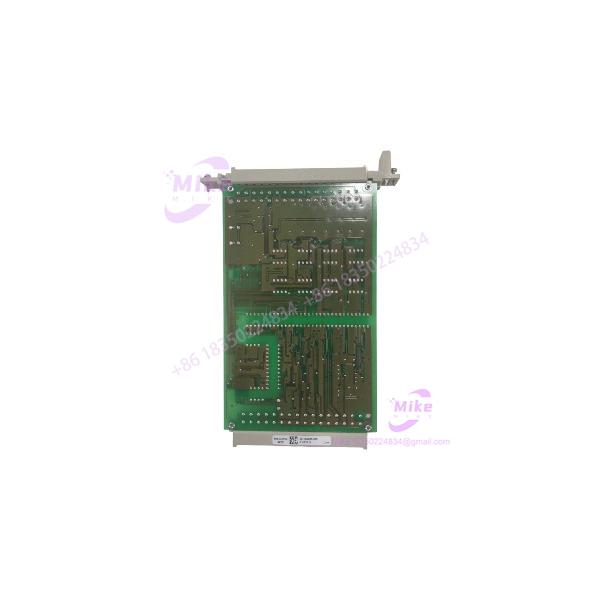

F3331
Key Technical Specifications
- Model: F3331
- Manufacturer: HIMA Paul Hildebrandt
- System Family: HIQuad Safety Controller System
- Module Type: Safety Digital Output Module
- Output Channels: 16 digital output channels
- Output Voltage: 24 VDC nominal
- Application Areas:
- Emergency shutdown systems (ESD)
- Safety instrumented systems (SIS)
- Process protection systems
- Industrial machine safety
- Safety Application: SIL-rated applications depending on complete safety system design
- Installation Type: HIQuad rack-mounted module
- Controller Communication: HIMA safety backplane interface
- Output Functions:
- Safety actuator control
- Shutdown command execution
- Alarm activation
- Diagnostic Functions:
- Channel status monitoring
- Output fault detection
- Module diagnostics
- System communication monitoring
- Typical Connected Loads:
- Solenoid valves
- Contactors
- Safety relays
- Alarm devices
Global Sourcing & Live-Test SOP (Transparency Core)
The HIMA F3331 should be treated as safety-system hardware, not general automation inventory. A unit that powers up is only the first checkpoint.
Output modules can have hidden issues involving switching components, terminal conditions, or diagnostic response.
Inbound Verification
Each incoming should receive:
- Exact model verification
- Hardware marking inspection
- Serial number recording
- Connector examination
- Housing inspection
- PCB condition evaluation
Inspection points:
- Backplane connector pins
- Output terminals
- Front interface condition
- Mechanical locking parts
- Signs of overheating or contamination
The replacement module must match the original HIQuad system design. Similar output modules may not provide identical channel behavior.
Live Simulation
A proper test environment should include:
- Authentic HIMA HIQuad rack
- Compatible safety controller
- 24 VDC supply
- Simulated actuator loads
- Engineering workstation
Test sequence:
- Install the module.
- Confirm rack communication.
- Apply controlled output commands.
- Measure switching behavior.
- Verify diagnostic responses.
Functional testing should include:
- Channel activation
- Channel deactivation
- Load simulation
- Fault simulation
- Communication verification
A controlled test load is preferred before connecting plant actuators.
Diagnostics
Recommended equipment:
- Fluke industrial multimeter
- DC current measurement tools
- 24 VDC laboratory supply
- HIMA engineering tools
Diagnostic checks:
- Output voltage verification
- Current behavior
- Channel response time
- Backplane communication
- Fault reporting
A simple continuity check does not validate a safety output module. The hardware must operate correctly inside the HIQuad diagnostic environment.
Final Preparation
Before shipment:
- Record module identification.
- Document test results.
- Protect connectors.
- Use ESD-safe packaging.
- Maintain inventory traceability.
For legacy SIS equipment, complete inspection records help engineers make faster replacement decisions.
The Field Engineer’s Pitfall Guide
❗ Do not replace without checking output channel assignment.
A 16-channel output module may physically install correctly while the connected field devices are mapped differently. I have seen commissioning teams spend hours tracing wiring because channel documentation was not verified before replacement.
❗ Do not ignore actuator inrush current.
Solenoids and contactors can draw higher startup current than their steady-state rating. A replacement output module may fail if the connected load exceeds the original design limits.
❗ Do not assume every HIQuad output module has identical firmware or diagnostic behavior.
Different hardware revisions can affect system acceptance. Verify the installed configuration before returning the safety system to operation.
Intent-Driven FAQ
What is the HIMA used for?
The is a HIQuad safety digital output module used to control external safety devices such as shutdown valves, relays, and alarms.
Is the a standard PLC output module?
No. The is designed for safety automation systems where output diagnostics and controlled failure behavior are required.
Can I directly replace a failed ?
Only after verifying:
- Exact part number
- Hardware revision
- HIQuad rack compatibility
- Safety project configuration
- Terminal wiring
- Field load requirements
How many outputs does the provide?
The is a 16-channel safety digital output module designed for HIQuad safety systems.
Does the contain application logic?
No. Safety logic execution occurs in the HIMA controller. The provides the physical output interface.
Why would a new fail during commissioning?
Common causes include:
- Incorrect wiring
- Output load mismatch
- Wrong hardware revision
- Configuration mismatch
- Field device problems
Is the HIMA still available?
The is associated with legacy HIQuad installations. Many operators maintain existing systems through tested replacement inventory and lifecycle support sourcing.
Procurement verdict: The is a specialized HIQuad safety output module used in existing SIS installations where reliable actuator control is required. It should be evaluated as part of the entire safety loop, not purchased only by matching the front label.
Before installation, verify channel configuration, actuator requirements, HIQuad compatibility, diagnostic behavior, and functional test records to prevent unnecessary safety-system downtime.
