HIMA F3 DIO 16/8 01 | HIMatrix Safety Digital I/O Module
Dynamic Product Introduction
A safety shutdown circuit does not care whether a replacement module looks identical on the DIN rail. It cares about signal integrity, diagnostic behavior, firmware compatibility, and whether the controller accepts the device configuration.
The HIMA F3 DIO 16/8 01 is built for that exact environment. It expands a HIMatrix safety system with 16 digital inputs and 8 two-pole digital outputs, allowing distributed field devices, emergency circuits, valves, contactors, and interlocks to connect directly to the safety controller architecture. Communication runs through SafeEthernet over two integrated Ethernet switch ports.
Compared with the smaller F3 DIO 8/8 01, the F3 DIO 16/8 01 doubles the digital input capacity while maintaining eight safety-related outputs. This matters in applications where cabinet space is limited and additional input points are required without adding another remote I/O station.
In field deployments, the difference between a successful replacement and a commissioning delay usually comes down to configuration discipline (especially when older ELOP II Factory projects are being migrated into newer SILworX environments). HIMA documents that HIMatrix remote I/Os communicate with their controller through SafeEthernet and support engineering environments depending on the processor operating system.

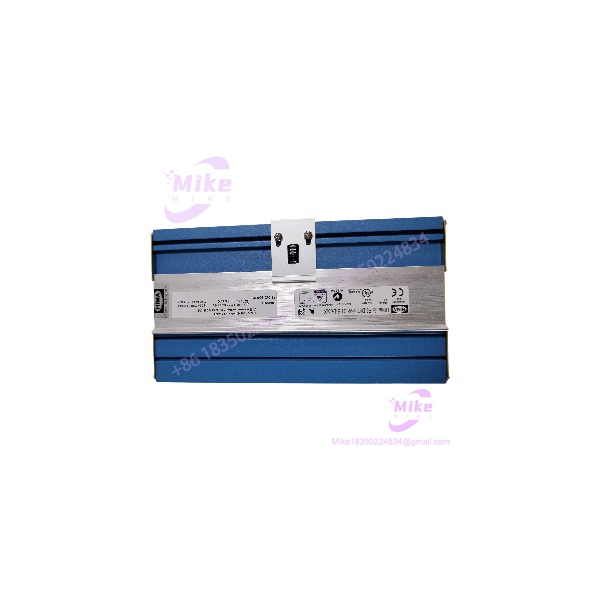

F3 DIO 16/8 01
Key Technical Specifications
- Model: F3 DIO 16/8 01
- System Platform: HIMatrix
- Application: Safety-related remote digital I/O
- Digital Inputs: 16 channels
- Input Type: Digital inputs, non-galvanically separated
- Digital Outputs: 8 channels
- Output Type: Two-pole switching outputs (DO+ / DO-)
- Pulsed Outputs: 2 channels
- Line Monitoring: Supported
- Communication Interface: 2 × RJ-45 Ethernet ports
- Ethernet Standard: 10BASE-T / 100BASE-TX
- Communication Protocol: SafeEthernet
- Response Time: ≥10 ms
- Operating Voltage: 24 VDC (-15% to +20%)
- Digital Output Current: Up to 2 A below 40°C; reduced current capability at higher temperatures
- Maximum Total Output Current: 8 A
- Output Diagnostic Functions: Open-circuit and short-circuit monitoring
- Mounting: 35 mm DIN rail
- Protection Rating: IP20
- Operating Temperature: 0°C to +60°C
- Weight: Approximately 1.3 kg
The output design is one of the major differences from standard PLC digital cards. The F3 DIO 16/8 01 uses two-pole outputs with line diagnosis capability. HIMA specifies monitoring functions for open circuits and short circuits, making the module suitable for safety applications requiring feedback on field wiring integrity.
Global Sourcing & Live-Test SOP
For surplus or replacement HIMA F3 DIO 16/8 01 inventory, a basic power-up check is not enough.
A safety I/O module can boot normally while still having incorrect firmware, failed output drivers, communication problems, or damaged input circuits.
Inbound Verification
Every incoming F3 DIO 16/8 01 should go through:
- Exact model verification: F3 DIO 16/8 01
- Serial number recording
- Hardware revision capture
- Firmware revision recording
- Physical housing inspection
- Terminal connector inspection
- Ethernet port inspection
- Previous application trace review when available
The HIMA type label includes product name, part number, production year, hardware revision, and firmware revision. These details are not cosmetic; they determine compatibility during replacement planning.
Check for:
- Damaged terminal blocks
- Bent DIN mounting clips
- Oxidized contacts
- Heat discoloration
- Incorrect accessories
- Signs of cabinet contamination
Live Simulation
A proper validation setup should reproduce the intended HIMatrix operating environment.
Test procedure:
- Apply controlled 24 VDC supply.
- Verify startup sequence.
- Confirm Ethernet link establishment.
- Connect through a compatible HIMatrix engineering/test environment.
- Validate SafeEthernet communication.
- Simulate all 16 digital input channels.
- Exercise all 8 digital outputs.
For inputs:
- Apply LOW state.
- Apply HIGH state.
- Verify diagnostic response.
- Confirm correct channel addressing.
For outputs:
- Apply representative loads.
- Measure switching voltage.
- Verify DO+ and DO- behavior.
- Confirm line-monitoring response.
Diagnostics
Recommended inspection includes:
- Digital input simulation across all channels.
- Output load testing with calibrated measurement equipment.
- Short-circuit diagnostic verification where permitted.
- Open-circuit detection verification.
- Ethernet communication stability testing.
- Repeated power cycling.
- Extended heat operation.
A Fluke multimeter and controlled test loads are useful here. An LED-only inspection can miss output-stage problems.
The output section deserves additional attention because the module supports two-pole switching and safety diagnostics. Incorrect load assumptions can create false commissioning failures.
Final Preparation
Before shipment:
- Record firmware/hardware revisions.
- Save test results.
- Protect terminal connectors.
- Apply ESD-safe packaging.
- Seal the module with traceability information.
For safety applications, final acceptance requires customer-side validation, including application testing and safety documentation review.
The Field Engineer’s Pitfall Guide
❗ Do not replace an F3 DIO 16/8 01 with an F3 DIO 8/8 01 because the output count matches.
The two modules are not equivalent. The F3 DIO 16/8 01 provides 16 digital inputs, while the F3 DIO 8/8 01 provides eight. I’ve seen maintenance teams install the smaller unit successfully from a hardware perspective, only to discover missing field signals during commissioning.
❗ Do not ignore ELOP II Factory versus SILworX compatibility.
A hardware replacement does not automatically solve an engineering mismatch. HIMA documents different programming environments depending on the HIMatrix processor operating system. Projects created in one environment cannot simply be assumed compatible with another.
❗ Do not copy output wiring without checking two-pole configuration.
The F3 DIO 16/8 01 uses two-pole digital outputs with DO+ and DO- switching. A similar-looking digital output module may have completely different wiring expectations. I have seen shutdown circuits fail acceptance testing because a replacement module was wired as a conventional single-pole PLC output card.
Intent-Driven FAQ
Is the HIMA F3 DIO 16/8 01 a safety-rated module?
Yes. The F3 DIO 16/8 01 is part of the HIMatrix safety remote I/O family. It is designed for safety-related digital input and output processing with SafeEthernet communication.
How many inputs and outputs does the F3 DIO 16/8 01 provide?
The module provides 16 digital inputs and 8 two-pole digital outputs. It also includes 2 pulsed outputs for applications such as line monitoring and diagnostic functions.
Can I replace an F3 DIO 16/8 01 with an F3 DIO 20/8 02?
Not automatically. Both modules belong to the HIMatrix family, but the channel count, configuration, and application mapping are different. The controller project must be reviewed before substitution.
Does the F3 DIO 16/8 01 support SafeEthernet?
Yes. The module communicates with its associated controller through SafeEthernet using two RJ-45 Ethernet ports with integrated switching capability.
Can the F3 DIO 16/8 01 be hot-swapped?
Treat it as a safety-system component, not a normal PLC slice. Replacement should follow the site’s approved shutdown, configuration backup, validation, and safety management procedure.
What firmware information should be checked before purchasing?
Verify the hardware revision and firmware revision shown on the module label. Also confirm whether the installed HIMatrix system uses SILworX or ELOP II Factory engineering tools.
What should be tested when buying surplus F3 DIO 16/8 01 inventory?
At minimum:
- All 16 digital inputs
- All 8 two-pole outputs
- Pulsed outputs
- Ethernet communication
- SafeEthernet connection
- Diagnostic functions
- Firmware identification
- Physical condition
Procurement verdict: The HIMA HIMatrix F3 DIO 16/8 01 is a specialized safety remote I/O device designed for applications where digital signal density, output diagnostics, and SafeEthernet communication matter.
For replacement sourcing, the correct specification is not simply “16DI/8DO HIMA.” The engineering team should match the exact F3 DIO 16/8 01 model, revision level, controller configuration, and field wiring architecture before installation.
