Foxboro P0917MF | Control Processor Module Key Spec Data
Architect’s Product Breakdown
The Foxboro P0917MF sits directly within the marshalling and signal distribution layers of an I/A Series distributed control architecture, bridging field-level cabling with internal processing nodes. When dealing with legacy footprints in continuous process plants, maintaining backplane bus integrity is an absolute necessity to prevent intermittent communication dropouts. This module utilizes a compression termination layout designed to secure multi-core instrumentation wiring without inducing mechanical stress on the terminal pins.
Integrating this unit requires close attention to the existing revision history of surrounding Fieldbus Modules (FBMs). Upgrading or replacing this assembly without verifying the mating connector pins can lead to high loop resistance or open circuits during thermal expansion cycles inside the cabinet. Plant instrumentation engineers managing lifecycle transitions will find that units matching the exact P0917MF specification drop straight onto standard DIN mounting tracks, minimizing physical panel rework during scheduled outages.

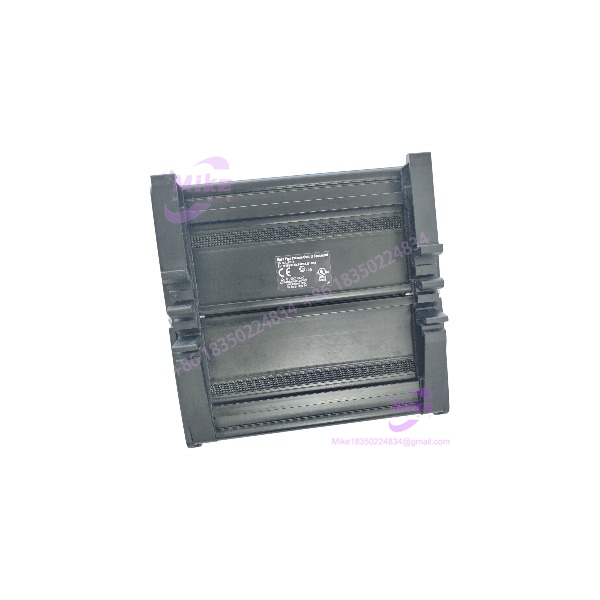

P0917MF
Key Technical Specifications
- Manufacturer: Foxboro (Schneider Electric)
- Product Category: Termination Assembly / Processor Accessory
- Mounting Type: DIN Rail
- Termination Style: Compression
- Enclosure Compatibility: Standard I/A Series vertical/horizontal housing
- Operating Temperature Range: -20°C to +70°C
- Relative Humidity Limit: 5% to 95% (non-condensing)
- Vibration Tolerance: 1G (5 to 500 Hz)
- Weight: Approximately 1.5 kg (variant dependent)
- Diagnostic Indicators: Integrated status LEDs for power and bus connectivity
Field Engineer’s Pitfall Guide (Unique Value)
- Beware of Terminal Torque Over-Tightening: The compression screw blocks on the P0917MF require calibrated hand tools. Overtightening strips the internal brass threads, forcing an entire block replacement mid-commissioning.
- Verify Shield Grounding Continuity: I’ve seen loop noise plague an entire analog input rack for days simply because the local drain wire shield was bonded to the DIN rail rather than the designated isolated ground bus bar provided on the assembly assembly frame.
- Revision Mismatch Timeouts: Ensure that any connected FBM firmware matches the backplane communication requirements. Swapping a legacy hardware revision without validating software configurations can result in immediate node dropouts.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Every unit undergoes physical inspection to verify OEM markings, manufacturing date codes, and structural integrity of the plastic housing and connector pins.
- Live Test Environment: Modules are mounted onto a live test rack configured with matching I/A Series power distributions to simulate actual plant load conditions.
- Diagnostics & Handshake: Technicians execute communication handshake tests and signal throughput verification across all connection channels to guarantee zero packet loss or attenuation.
- Packaging Standards: Post-testing units are sealed inside anti-static shielding bags accompanied by moisture barrier material to protect sensitive circuitry during transit.
Technical FAQ
Can I install the P0917MF while the control loop is powered up?
No. Live installation risks inducing voltage spikes across the backplane bus and can trigger false trip logic within the safety or regulatory control layers. Always de-energize the local rack segment before servicing.
Does this assembly retain configuration data after a total power loss?
Yes. As a physical termination and routing component, it does not rely on volatile memory storage for configuration parameters, preserving physical signal mapping integrity through power interruptions.
Is the P0917MF compatible with older I/A Series hardware revisions?
Compatibility depends on the exact backplane bus wiring schema of your legacy cabinet. Verify pin-out configurations and local FBM hardware versions before mounting.
What is the standard warranty status for surplus inventory units?
Verified surplus modules typically carry a 12-month operational warranty covering material and manufacturing defects under normal industrial operating environments.
