FOXBORO P0916NG | FBM242 Discrete Output Termination Assembly

Description

FOXBORO P0916NG | FBM242 Discrete Output Termination Assembly

Architect’s Product Breakdown

The FOXBORO P0916NG is documented as a termination assembly associated with the FBM242 externally sourced discrete output interface in Foxboro I/A Series control systems. It provides the field-side connection and switching interface for discrete output circuits. It should not be confused with the FBM242 electronic I/O module itself: the termination assembly and the module perform related but different hardware roles.

In a replacement project, the key engineering task is confirming that the installed FBM242 configuration, termination cable, field wiring, and output circuit design match the P0916NG execution. The FBM242 family supports externally sourced discrete outputs, but the permitted load depends on the termination arrangement and the connected circuit. Do not assume that every voltage or current rating published for the FBM242 family applies to every termination assembly.

For procurement, request clear photographs of the part label and terminal layout, confirmation of the assembly’s condition, and any available test report. If the existing installation uses a superseding or alternate part number, engineering approval is required before substitution.

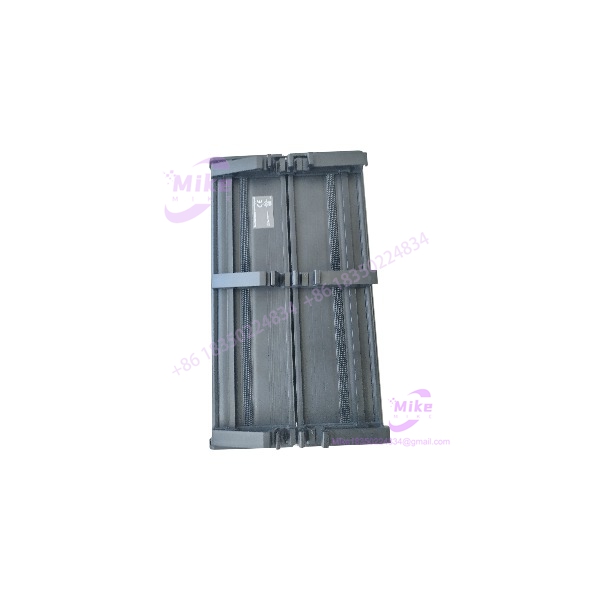

P0916NG

Key Technical Specifications

The output ratings above are application-dependent. Confirm the exact contact rating, load type, and installation requirements against the applicable Foxboro documentation before connecting field loads. The P0916NG is listed as a legacy FBM242 termination assembly, with RH916YY identified in newer documentation as a superseding designation.

Field Engineer’s Pitfall Guide

Pitfall 1 — Confusing the termination assembly with the I/O module. P0916NG is the field termination assembly, not the FBM242 electronic module. Ordering only the termination assembly will not replace a failed FBM242 module. Confirm which component has failed before issuing a purchase order.

Pitfall 2 — Treating every relay rating as interchangeable. A 5 A rating at low DC voltage does not mean the relay can switch 5 A at 125 VDC. Inductive loads, including contactor coils and solenoid valves, can generate substantial switching transients. Check the specific load category and add suppression where the approved design requires it.

Pitfall 3 — Substituting a successor without checking the installation. P0916NG is documented as a legacy designation. A newer part number may be listed as a successor, but confirm terminal layout, mounting, cable interface, electrical ratings, and any project-specific approval before installing it.

Field scenario: During a planned shutdown, a maintenance team replaces an aging termination assembly using a part selected from a supplier’s title alone. The connector appears compatible, but the terminal configuration or load rating differs from the existing installation. The practical prevention is simple: compare the full part marking, terminal diagram, and field wiring records before removing the original assembly.

QA & Testing SOP

1. Visual and identity inspection: Verify the P0916NG label, terminal condition, enclosure integrity, signs of overheating, corrosion, and mechanical damage.
2. Origin and documentation check: Request traceable supplier documentation, available inspection records, and confirmation of whether the unit is new, surplus, refurbished, or used.
3. Interface verification: Confirm FBM242 compatibility, termination cable type, terminal assignments, and field-power arrangement against the site drawings.
4. Electrical testing: Have qualified personnel verify relay contact operation and insulation condition using approved procedures and test equipment. Do not apply uncontrolled test voltage to connected system electronics.
5. System-level functional test: After installation, verify each affected output point, commanded state, contact response, and connected field device under an approved commissioning or maintenance procedure.
6. Records and packaging: Record the full part number, revision or date code if present, test results, and disposition. Use ESD-aware handling where applicable and protect terminals from impact, moisture, and contamination during shipment.

Technical FAQ

Q1: Is FOXBORO P0916NG an FBM242 module?

No. P0916NG is a termination assembly associated with the FBM242 discrete output interface. The electronic FBM242 module is a separate component.

Q2: Can P0916NG switch 240 VAC loads?

The documented FBM242 relay termination configuration includes ratings up to 250 VAC at 5 A under specified conditions. Verify the precise contact rating, load type, and applicable documentation before using it in a particular circuit.

Q3: Is P0916NG interchangeable with RH916YY?

Newer Foxboro documentation identifies RH916YY as superseding P0916NG. Treat that as a lead for replacement research, not automatic approval: verify the complete electrical and mechanical configuration against the installed system.

Q4: Does P0916NG require firmware configuration?

The termination assembly itself is passive field-interface hardware and does not have user firmware to configure. The associated FBM242 and host control system may require configuration checks following replacement or maintenance.

Q5: What should buyers confirm before purchasing P0916NG?

Confirm the exact model marking, condition, terminal style, cable compatibility, included accessories, and whether the part is a legacy or approved replacement item. For used stock, request photographs and documented inspection or functional-test results where available.

Procurement recommendation: Specify FOXBORO P0916NG by its complete part number and identify it explicitly as the FBM242 termination assembly. Before approving a substitute, obtain written confirmation of the replacement model and its compatibility with the site’s field wiring and load requirements.
