Emerson Westinghouse 1C31219G01 | Ovation Relay Output Module

Description

Emerson Westinghouse 1C31219G01 | Ovation Relay Output Module

Product Introduction

The 1C31219G01 is a heavy-duty relay output logic card built specifically for high-availability Ovation DCS cabinets. Functioning as a high-density switching bridge between low-voltage backplane logic and real-world industrial loads, this module drives interposing relays, solenoid valves, motor starters, and alarm horns without putting sensitive controller CPUs at risk.

Engineered to snap into standard Ovation I/O base assemblies, it delivers 16 dry Form C relay contact channels capable of switching up to 250VAC or 30VDC. With 2,000V channel-to-logic galvanic isolation, it stops high-voltage field spikes and line noise dead in their tracks before they reach adjacent rack slots—though you will still want inductive load snubbers landed at the terminal strip when cycling heavy inductive coils.

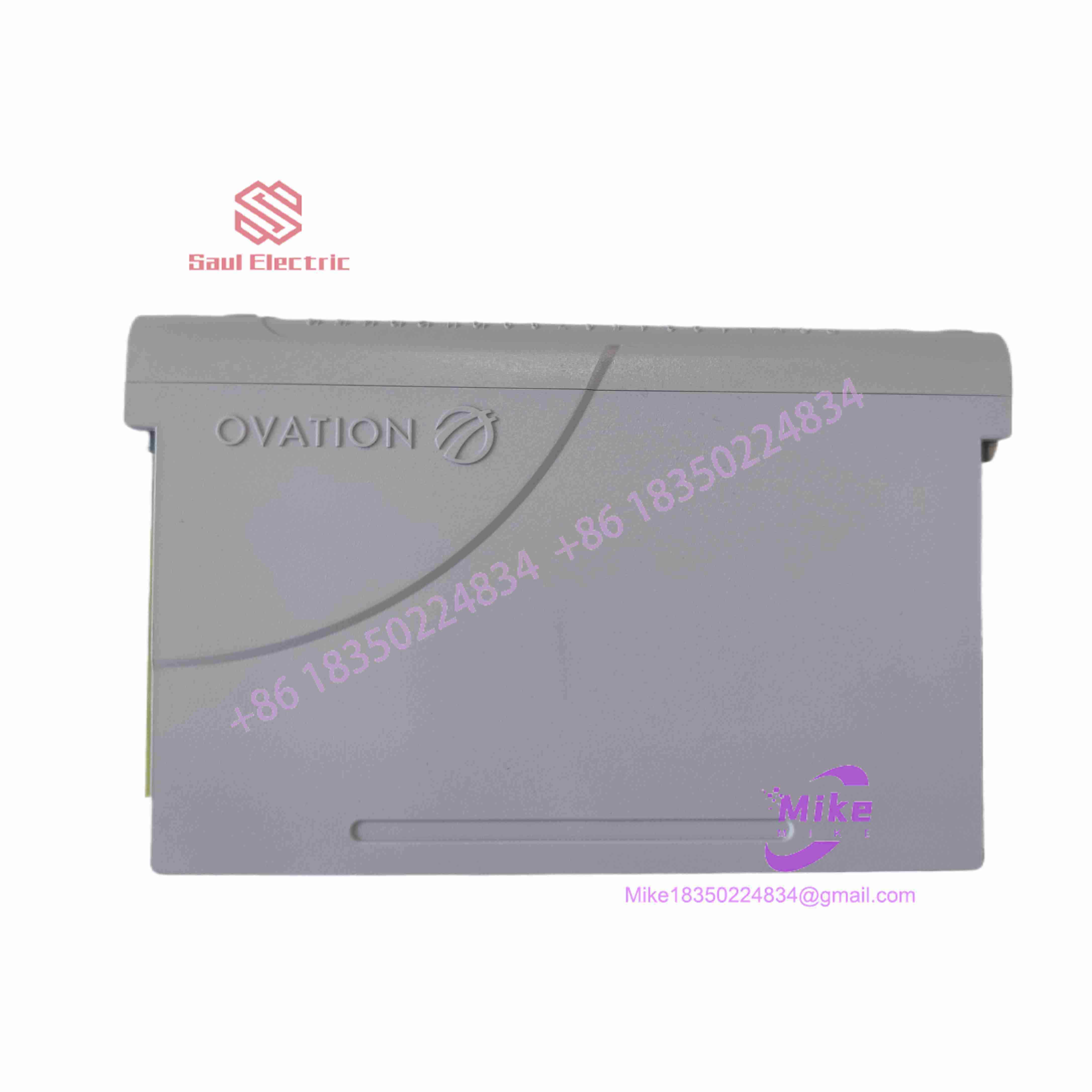

1C31219G01

1C31219G01

Key Technical Specifications

5. Application Scenarios & Pain Points

• Field Anecdote: A combined-cycle plant in Alabama suffered intermittent pump interlock trips because inductive kickback from an unsuppressed motor contactor arc-welded a solid-state card’s outputs closed. Swapping in a bench-tested 1C31219G01 restored crisp mechanical contact breaks and cleared up false run-status feedback during peak load changes.
• With vs. Without Contrast:
  • Without 1C31219G01: Standard solid-state output cards suffer off-state leakage currents that can keep high-impedance interposing relays energizing unexpectedly or glowing false trip indicators.
  • With 1C31219G01: True mechanical Form C contacts guarantee zero off-state leakage, ensuring 100% galvanic break on critical emergency trip loops.
• Blunt Technical Conditions:
  • Motor Control Center (MCC) Interlocks: Reliably opens and closes high-voltage starter coil circuits without suffering logic lockups from line voltage dips.
  • High-Vibration Skid Enclosures: Ruggedized internal relay mountings prevent contact chatter near heavy turbine oil skid pumps.

QA & Live Testing SOP (Trust Signal)

We test every incoming 1C31219G01 card on real hardware before putting it in our ready-to-ship warehouse inventory:

• Microscopic Visual Audit: 100% inspection of PCB traces, backplane gold fingers, and relay housing seals under magnification to ensure zero cold solder joints or thermal stress.
• Backplane Power-On: Mounted into an active Ovation test chassis to confirm bus address recognition, internal power rail pull, and diagnostic LED responses.
• Contact Resistance & Load Cycle Test: We connect a Fluke DMM across all 16 channels, cycling each Form C relay coil under load to confirm contact resistance measures well under 100mΩ.
• ESD-Safe Packaging: Cleaned, sealed inside anti-static shielding bags with fresh desiccant, and packed in double-walled, foam-lined shipping boxes.

Field Engineer’s Pitfall Guide

• ❗ Contact Arc Suppression on DC Inductive Loads: Do not wire DC solenoid coils or heavy relay coils directly to the contacts without a flyback diode (or RC snubber for AC) across the load. High-voltage back-EMF arcing across opening contacts will pit the silver alloy contacts and weld them closed over time.
• ❗ Total Channel Current Density Limits: While individual channels handle up to 2.0A, avoid running all 16 channels at maximum amperage simultaneously. High total continuous current creates localized heat buildup on the terminal base unit that degrades insulation barriers.
• ❗ Guide Track Alignment: When inserting the 1C31219G01 into its slot, ensure the card aligns smoothly with the base guide rails. Forcing a misaligned card will bend backplane connector pins, leading to dead channels or slot communication faults.

Intent-Driven FAQ

Can I mix AC and DC loads on different channels of the same 1C31219G01 card?

Yes, because each channel provides isolated Form C contacts. However, you must observe proper safety clearances on the field terminal block assembly and ensure that field wiring insulation ratings meet local electrical codes for mixed voltages.

What is the primary difference between a Form A relay module and this Form C module?

Form A modules only provide Normally Open (NO) contacts. The 1C31219G01 features Form C contacts, meaning each channel provides both Normally Open (NO) and Normally Closed (NC) terminals with a common (COM) leg, giving you flexibility for fail-safe wiring schemes.

What does it mean if a channel LED illuminates but the field device does not switch?

If the channel LED turns ON (confirming the Ovation software sent the coil drive signal), but field voltage is not passing through the contacts, the internal mechanical relay has burned open or field power to the common rail has been lost. Test for continuity across the COM and NO terminals with a multimeter.

Does the 1C31219G01 require external power to energize the relay coils?

The onboard relay coils are driven directly by 24V DC logic power sourced from the Ovation backplane. However, the actual voltage switched across the relay contacts (AC or DC) must be supplied externally via your field power circuit.

Is this unit a direct drop-in replacement for older Ovation relay cards?

In most cases, yes. The 1C31219G01 is backward-compatible with standard Ovation relay I/O base units. Always verify that your software project file in Ovation Developer Studio matches the hardware slot assignment.

What warranty comes with this surplus card?

Every 1C31219G01 module includes a full 1-year replacement warranty, covering all logic execution, relay coil actuation, and contact resistance performance under normal operating conditions.
