Emerson KJ3223X1-EA1 | 4–20 mA HART Analog Input Interface
Product Introduction
When replacing DeltaV analog input hardware, the terminal block is part of the I/O interface—not a standalone signal-processing card. A terminal block that looks correct but does not match the installed AI card, keying, or field wiring can delay commissioning or create a configuration mismatch.
The Emerson KJ3223X1-EA1 is identified in Emerson’s ATEX instruction sheet as a 16-channel AI terminal block. Supplier listings associate it with DeltaV Series 2 16-channel 4–20 mA HART analog input applications and report the additional ordering number 12P2867X022 Rev.B. That ordering-number association and the specific companion-card match should be verified against the unit’s markings and the applicable DeltaV hardware documentation before procurement approval.
For maintenance teams supporting legacy DeltaV installations, the KJ3223X1-EA1 is best treated as a configuration-sensitive field termination spare. Confirm the complete model, terminal layout, companion AI card, and wiring before installing a replacement.

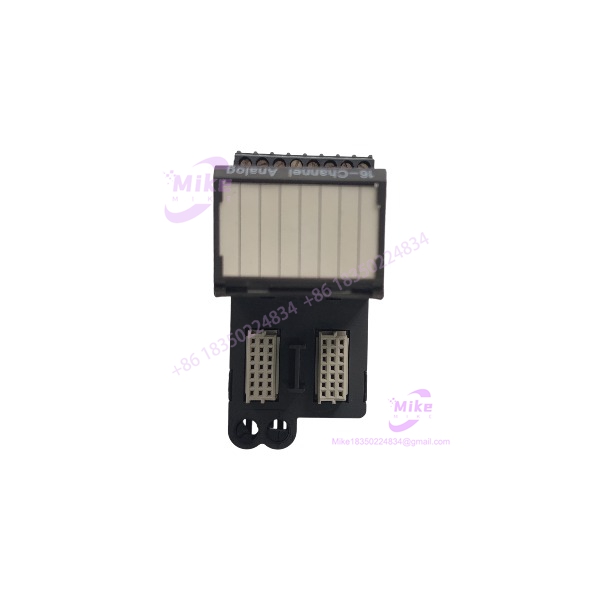

KJ3223X1-EA1
Key Technical Specifications
- Model Number: KJ3223X1-EA1
- Manufacturer: Emerson
- System: DeltaV DCS
- Component Type: 16-channel analog input terminal block
- Reported Associated Part Number: 12P2867X022 Rev.B; confirm actual unit markings
- Signal Application: 4–20 mA analog input; HART use depends on compatible AI hardware and configuration
- Input Power Rating: 30 VDC at 100 mA, per Emerson ATEX instruction sheet
- Ambient Operating Temperature: −40°C to +70°C, per Emerson ATEX instruction sheet
- Relative Humidity: 5–95%, noncondensing
- Shock Rating: 10 g half-sine wave for 11 ms
- Vibration: 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz
- Airborne Contaminants: ISA-S71.04-1985 Class G3
- Maintenance: No user-serviceable parts; calibration is not required, per the instruction sheet
- Removal/Insertion: Cannot be removed or inserted with system power energized
- Compatibility: Must match the DeltaV AI card, terminal-block keying, and installed field-wiring configuration
The 30 VDC at 100 mA figure is the terminal block’s documented input power rating. Do not confuse it with a per-channel transmitter loop-power rating. Likewise, channel count and HART capability describe the intended application and associated AI hardware; they should not be treated as proof that the terminal block independently processes analog signals.
Global Sourcing & Live-Test SOP
For a used or surplus KJ3223X1-EA1, acceptance should establish exact identity, physical condition, and compatibility with the intended DeltaV I/O assembly.
1. Inbound Verification
- Photograph the complete nameplate before unpacking or cleaning.
- Confirm the exact model: KJ3223X1-EA1.
- Record any associated ordering number, revision, and serial number.
- Compare the terminal layout and keying with the original unit or approved OEM documentation.
- Inspect terminals, connectors, housing, and mounting points for cracks, corrosion, contamination, or heat damage.
- Check for loose or bent contacts and evidence of unauthorized repair.
- Retain supplier condition statements and available traceability documentation.
2. Configuration & Compatibility Review
- Identify the exact DeltaV AI card used in the installation.
- Verify terminal-block compatibility against the complete card and terminal-block part numbers.
- Confirm the required keying and carrier arrangement.
- Compare field terminal assignments with the approved wiring drawing.
- Verify whether the application uses 4–20 mA, HART-enabled transmitters, or another supported configuration.
- Do not assume that a related KJ3223 model or a similar-looking terminal block is interchangeable.
3. Bench Inspection & Electrical Checks
- Follow the applicable Emerson procedure before connecting the terminal block to a powered test assembly.
- Inspect accessible terminals for mechanical damage and looseness.
- Perform continuity checks only where appropriate to the assembly and approved procedure.
- Check for unintended shorts where the OEM procedure permits.
- Do not apply insulation-resistance or high-potential testing to connected electronic circuitry unless expressly authorized by Emerson.
- Record the test method and results.
4. Functional Simulation & Diagnostics
The terminal block alone cannot verify analog input accuracy or HART communication. Functional testing requires a compatible AI card and a controlled DeltaV test configuration.
- Install the in the approved test setup.
- Verify field wiring against the OEM drawing.
- Apply a known input signal using an appropriate calibrated simulator.
- Confirm that the compatible AI card reports the expected input value.
- Where HART is used, verify device communication through the supported card and system configuration.
- Exercise representative channels and record any intermittent connection or diagnostic faults.
Do not describe the terminal block as fully HART-tested or accuracy-tested unless the complete test arrangement and procedure were actually used.
5. Extended Run & Stability Check
Where practical, perform an extended test in a compatible assembly with representative input activity.
Monitor:
- Input signal stability
- Intermittent terminal or connector faults
- Unexpected diagnostics
- Connector or terminal heating
- Mechanical stability during operation
Record the test duration, companion AI card, test configuration, and results. Do not claim a 24-hour burn-in unless it was completed and documented.
6. Final Preparation & Shipment
- Record the exact model, revision, and serial number.
- Photograph the nameplate, terminal layout, and housing.
- Clearly disclose used, refurbished, repaired, or untested condition.
- Include only accessories verified as part of the sale.
- Protect terminals and connectors against impact and contamination.
- Use suitable ESD-safe packaging.
- Retain inspection and test records with the shipment.
Field Engineer’s Pitfall Guide
❗ Do not confuse the terminal block with the AI card
The is a 16-channel analog input terminal block. Signal conversion, channel diagnostics, and HART functionality depend on the compatible AI card and system configuration. Do not list the terminal block as a standalone analog input module.
❗ Do not remove or insert it with system power energized
Emerson’s ATEX instruction sheet explicitly states that this unit cannot be removed or inserted with system power energized. Follow the applicable DeltaV installation procedure and site isolation requirements.
❗ Verify the complete part number and field wiring
Supplier listings associate the model with 12P2867X022 Rev.B and a Series 2 16-channel AI application. Verify the actual nameplate, revision, terminal assignments, and companion card before treating that association as definitive.
Intent-Driven FAQ
What is the Emerson ?
It is a DeltaV 16-channel analog input terminal block. Emerson’s ATEX instruction sheet identifies the model as a 16-channel AI terminal block.
Is the a 4–20 mA HART terminal block?
Supplier references associate it with 16-channel 4–20 mA HART analog input applications. HART operation depends on the compatible AI card and the installed DeltaV configuration; verify the exact pairing before ordering.
What is its input power rating?
Emerson’s ATEX instruction sheet lists an input power rating of 30 VDC at 100 mA. This is not a per-channel loop-power specification.
What is the operating temperature range?
The Emerson instruction sheet specifies an ambient temperature range of −40°C to +70°C.
Is the hot-swappable?
No. Emerson’s ATEX instruction sheet states that the unit cannot be removed or inserted with system power energized. Follow the applicable OEM installation procedure.
Does the terminal block require calibration?
The Emerson instruction sheet states that calibration is not required. The associated AI card and overall measurement loop may still require verification under the site’s maintenance and calibration program.
What should buyers verify before purchasing a used ?
Confirm the full model and revision, nameplate markings, terminal layout, companion AI card, and required keying. Ask for clear photos and a written description of the seller’s actual test scope. Do not rely on a generic “DeltaV AI terminal block” description to establish interchangeability.
Bottom Line for Buyers
The is a DeltaV 16-channel analog input terminal block. Emerson documentation confirms its component classification, 30 VDC at 100 mA input power rating, −40°C to +70°C ambient range, and prohibition on removal or insertion with system power energized.
For procurement, specify the complete model number, request nameplate and terminal-layout photographs, and verify the companion AI card and field-wiring arrangement. Treat the reported 12P2867X022 Rev.B association as a verification point—not a substitute for the actual unit markings and OEM compatibility documentation.
