Emerson 5X00489G01 | Ovation Power Distribution Module In Stock

Architect’s Product Breakdown

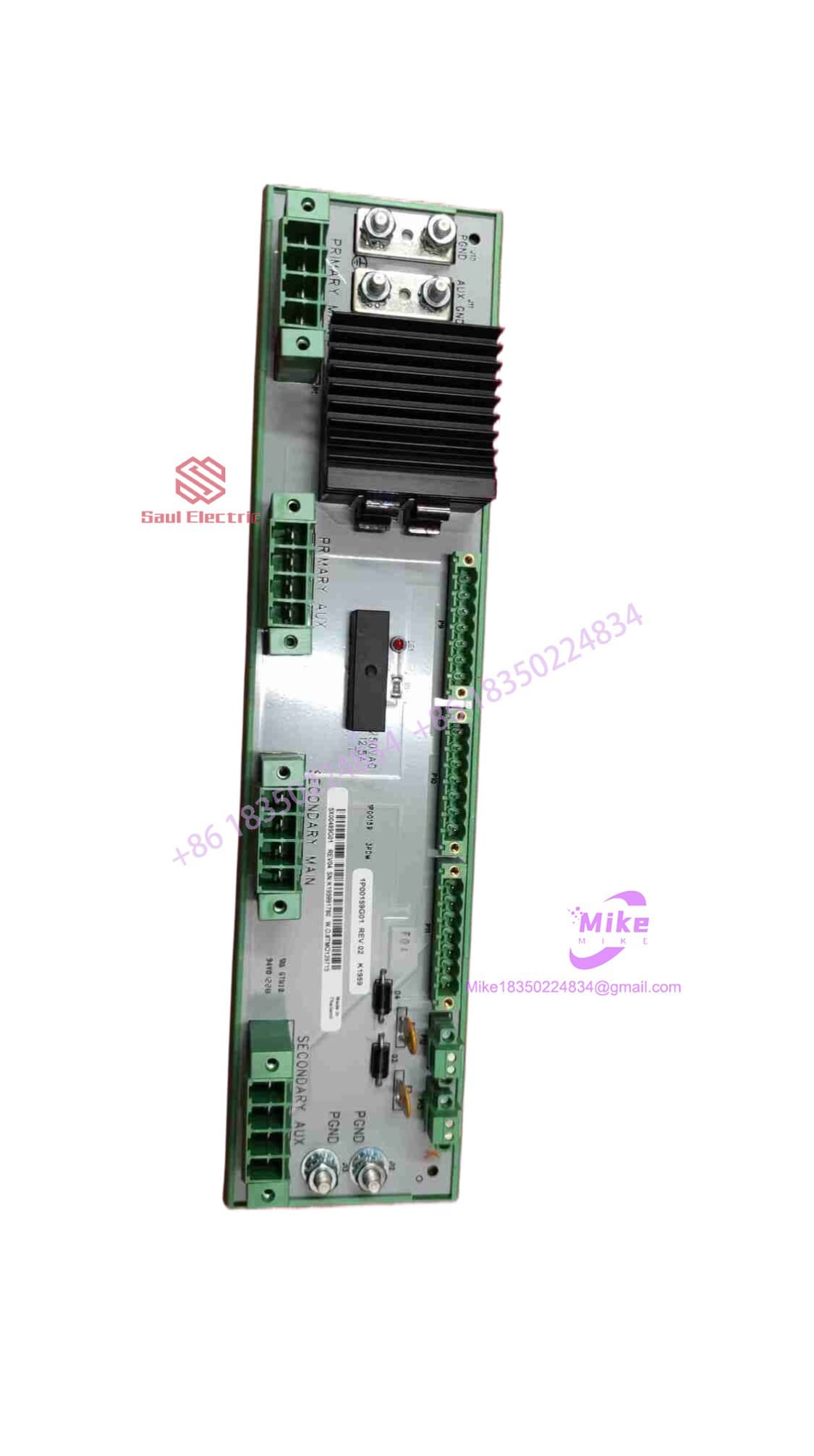

The Emerson 5X00489G01 serves as the backbone power routing module for legacy and active Ovation Distributed Control System (DCS) architectures. Mounted within the power distribution panel or baseplate assembly, it converts and routes primary cabinet power down to the secondary backplane levels used by field I/O modules, controller electronics, and field transmitters. Its physical design focuses on heavy copper trace layers and rugged terminal points to maintain strict voltage regulation across dense rack layouts under heavy continuous thermal loads.

In typical power plant or water treatment installations, power line ripple and improper cabinet isolation lead to signal noise and random node drops. The 5X00489G01 addresses this by integrating bulk line filtering alongside discrete fuse protection channels to decouple the noisy cabinet bus power from delicate I/O processing logic. It drop-ins seamlessly into standard Ovation DIN-rail baseplate assemblies, maintaining direct line pin compatibility with adjacent power supply units like the 1X00416 series.

When executing cabinet refits or emergency maintenance, this module provides an isolated barrier preventing field short-circuits from taking down an entire control branch. Because power architecture changes incrementally across Ovation revisions, keeping exact group-number hardware (G01) installed ensures that internal wire gauge terminations, fuse clear times, and backplane handshake logic line up precisely with original factory schematics.

5X00489G01

Key Technical Specifications

Field Engineer’s Pitfall Guide (Unique Value)

• BLOWN SUB-BRANCH FUSES ON FIRST POWER-UP: Never drop in a 5X00489G01 without clearing the downstream branch fault first. The module’s internal trace pathways and branch fuses sit directly upstream of the I/O baseplates. I’ve watched a crew burn through two replacement modules in a single shift because a shorted field transmitter wire was pulling 30A down the 24VDC loop, immediately vaporizing the internal protection trace on the fresh module upon breaker energization.
• INCORRECT BUS SHUNT JUMPER PLACEMENT: Check all physical jumper clips against the cabinet schematic before mounting. Depending on whether your Ovation cabinet uses dual redundant AC supplies or a single feed with DC backup, the power jumpers on the 5X00489G01 board must be positioned specifically. Leaving factory defaults intact during a late-night swap can cause one side of a redundant controller pair to run entirely unpowered without throwing an immediate front-panel alarm.
• BACKPLANE CONNECTING PIN DAMAGE: Do not force the module into the baseplate tracks. The multi-pin backplane header relies on strict vertical alignment. If the DIN rails or baseplate clips are warped from years of cabinet heat, forcing the module will bend the high-current distribution pins, resulting in high-resistance connections, localized arcing, and intermittent 24V bus power drops that are a nightmare to troubleshoot.

QA & Testing SOP (Transparency)

1. Visual & Physical Inspection: Detailed check under magnification for PCB discoloration, cracked traces, swelling capacitors, and bent backplane header pins. Serial numbers matched against OEM tracking databases.
2. High-Pot & Continuity Testing: Insulation resistance tests between power rails and chassis ground at 500VDC to ensure no breakdown across the substrate.
3. Live Bench Test (Simulated Rack): Module mounted to a live Ovation testing rack assembly. Powered up under full nominal AC/DC loads to verify trace stability.
4. Thermal Imaging Load Test: Applied maximum 12.5A current draw across all output channels for 4 hours while observing with FLIR thermal imaging to verify zero localized hot spots.
5. Final Diagnostics & Anti-Static Pack: Verification of pass status, application of tamper-evident seals, and immediate vacuum sealing in ESD-shielded bags with anti-vibration foam boxing.

Technical FAQ

Can I hot-swap the 5X00489G01 module while the process is running?

No. Hot-swapping a main power distribution module risks dropping power to all downstream I/O branches connected to that bus, which will trip your active control loops to their fail-safe state. Always dump power to the specific distribution channel or place the dependent process loops in Manual before pulling the module.

What is the difference between revision variations of 5X00489G01 (e.g., Rev 05 vs. Rev 11)?

Revision letters (like Rev 05, Rev 08, Rev 11) represent mid-life engineering updates to component layout, fuse clip style, or PCB trace thickness. While they maintain functional backward compatibility, always match revisions within the same redundant power pair to ensure identical internal resistance and fuse blow timing profiles.

Does the 5X00489G01 hold any active firmware or software configurations?

No. The 5X00489G01 is an unmanaged hardware distribution unit consisting of solid-state circuit paths, bus traces, filtering components, and passive protection circuits. It requires no firmware flashing or IP configuration upon installation.

What happens if the internal fuse on a branch path blows?

If an internal or sub-branch fuse blows, power supply continuity to that specific downline I/O branch is severed. On the Ovation drop, this typically manifests as a loss of communication or power-fault alarm for all I/O modules powered off that specific 5X00489G01 feed rail.

Why does my replacement 5X00489G01 look slightly different from my legacy Westinghouse module?

Emerson rebranded and incrementally updated the physical manufacturing process for Ovation hardware after acquiring Westinghouse Process Control. Modern surplus 5X00489G01 modules feature updated dielectric PCB coatings and revised terminal blocks, but retain identical pinouts, footprints, and electrical specifications.
