Emerson 5X00119G01 | 16-Channel Relay Output Electronics Card
Architect’s Product Breakdown

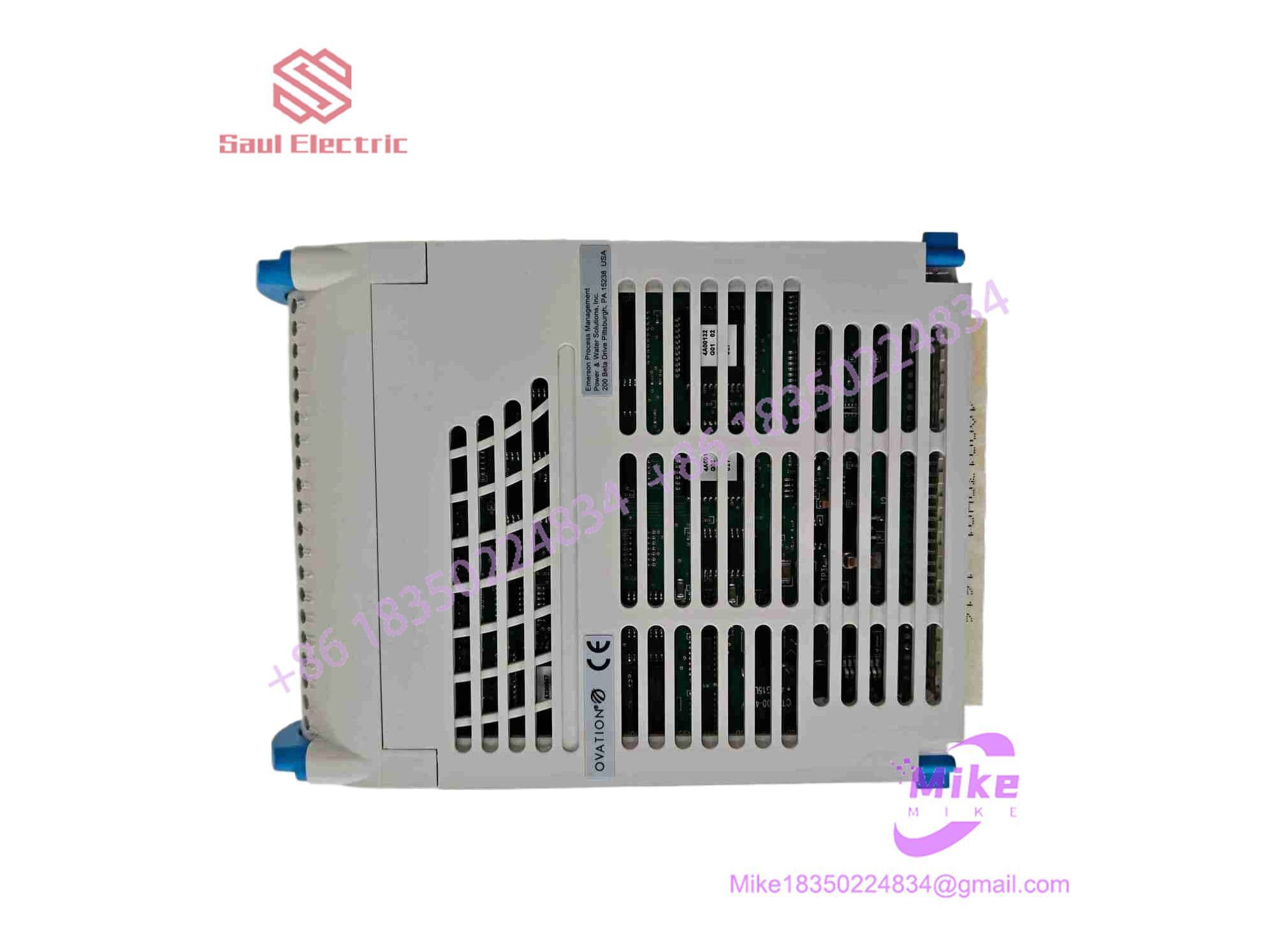

The Emerson Ovation 5X00119G01 is a 16-channel digital output module designed for discrete logic control within the Ovation I/O sub-rack assembly. Mounted onto a standard Ovation DIN-rail base unit, the module interfaces low-voltage internal logic commands from the Ovation Controller to real-world plant field equipment such as solenoid valves, interlock relays, alarm annunciators, and motor control center (MCC) start/stop circuits.
Engineered for harsh industrial environments, the G01 hardware variant incorporates high-speed optical isolation between the internal backplane bus and the output driving circuitry. This barrier prevents destructive electrical surges or field-side ground loops from propagating back into the main controller rack. The module works in tandem with its corresponding terminal block / personality assembly to deliver clean field switching without introducing excessive heat into high-density control cabinets.
When maintaining critical process drops in power generation facilities, chemical plants, or water treatment works, using the exact 5X00119G01 module ensures seamless backplane communication without hardware timing glitches or software point reconfigurations. Its rugged design helps plants avoid unplanned trips caused by contact bounce or logic state ambiguity on critical interlock lines.
5X00119G01
Key Technical Specifications
| Parameter | Specification / Value |
| Number of Channels | 16 discrete output channels |
| Output Type | Discrete / Digital switching |
| Isolation Rating | 1500 VAC channel-to-logic backplane optical isolation |
| Backplane Power Supply | 24 VDC nominal (supplied via Ovation backplane) |
| Status Indicators | Individual channel LED status indicators (Front Panel) |
| Power Dissipation | ~3.0 Watts maximum under full load conditions |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Form Factor | Standard Ovation I/O module footprint |
Field Engineer’s Pitfall Guide
WARNING: Inductive Load Suppression Required
Switching inductive loads (such as heavy-duty solenoid valves, motor contactors, or mechanical relays) without flyback diodes (DC) or RC snubbers (AC) installed directly at the field coil will destroy output channels over time. Back-EMF voltage spikes generated during coil de-energization bypass the module’s protection and weld output contacts or break down solid-state switches.
WARNING: External Field Power Isolation
I’ve seen technicians blow out 8 channels on a brand-new 5X00119G01 card because they assumed field auxiliary power was sourced directly from the module backplane. The 5X00119G01 handles logic switching; field load power must be routed through the matching base/terminal assembly from a dedicated 24 VDC or 120 VAC wet field supply. Always verify that external field voltage levels match the rating of the installed personality module before racking the card into a live base.
WARNING: Live Extraction Interlock Risks
While the card supports hot-swapping, pulling a digital output module while process loops are live instantly drops all 16 channels to their default de-energized state. Ensure all driven field equipment (valves, pumps, trips) is set to a safe manual state or bypassed in the software before physically unseating the module from the base.
QA & Testing SOP
Every 5X00119G01 module undergoes a strict 4-step quality verification before dispatch:
- Visual & Structural Audit: Inspection under magnification for PCB micro-cracks, damaged backplane pin headers, worn conformal coating, and original OEM serial tags.
- Backplane Logic Verification: Inserted into an active Ovation test chassis to confirm 24 VDC logic power-up, onboard regulator stability, and proper bus handshake with the controller drop.
- 16-Channel Load & LED Test: Each output channel is driven sequentially using a simulated load bench. Field switching logic, channel LED illumination, and optical isolation barriers are tested under full rated current.
- Thermal Stability & ESD Packaging: The card is operated under continuous load, monitored for abnormal thermal rise, wiped clean, and sealed in static-shielding packaging with protective edge covers.
Technical FAQ
Can I hot-swap the 5X00119G01 while the Ovation Controller is online?
Yes, Ovation I/O cards are hot-swappable under live backplane power. However, pulling the module de-energizes all 16 output channels immediately. Always verify that process interlocks and safety trips driven by these outputs are bypassed in Developer Studio or placed in manual control before extraction.
Does the 5X00119G01 require software configuration in Developer Studio?
Yes. The card must be configured under the corresponding I/O slot in the Ovation Developer Studio database. You must assign the 16 output points and define fail-safe states (e.g., hold last value or force to de-energized state) on communication loss.
What causes channel LED indicators to remain lit when no output command is active?
This usually points to a shorted solid-state output switch on the module caused by a previous field overcurrent or unsuppressed back-EMF spike. If a channel remains stuck “ON” regardless of logic state, the output driving stage has likely failed and the module requires repair or replacement.
Is external power needed for the outputs to switch field loads?
Yes. The module’s internal backplane power only energizes the onboard logic and optocouplers. The voltage required to drive field loads (solenoids, relays) must be supplied via the external field power terminal connections on the base unit.
