Eaton XVH-340-57MPI-1-13 | 5.7″ HMI Touch Panel In-Stock
Dynamic Product Introduction
Few failure scenarios cause more immediate frustration in an automated facility than an operator terminal display freezing up mid-batch while an integrated processing line continues running without visual status feedback. The Eaton XVH-340-57MPI-1-13 functions as a high-performance operator interface window, pairing a clear display screen with high-speed onboard protocol transceivers. Built specifically for demanding industrial control cabinets, it processes continuous operator button entries, trend graph updates, and multi-node PLC communications without inducing display latency or dropping bus frames.
When an operational screen suffers backlight failure, touch surface wear, or serial port degradation during production, sourcing a direct-fit Eaton XVH-340-57MPI-1-13 module keeps your plant maintenance schedules completely on track. Installing a fully bench-tested unit allows automation technicians to drop a working screen straight into existing cabinet cutouts without adjusting mounting cutouts or altering underlying field bus wiring harnesses. Swapping out a degraded terminal instantly restores crisp graphical clarity, rapid touch execution, and steady communications across your network.

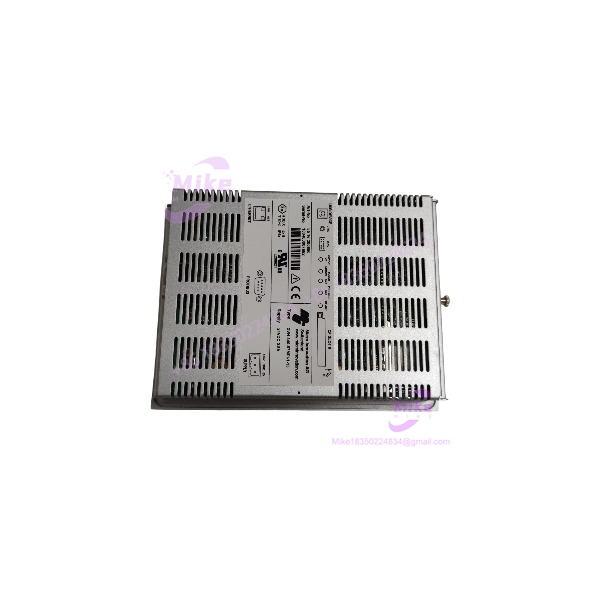

XVH-340-57MPI-1-13
Key Technical Specifications
- Model Designation: XVH-340-57MPI-1-13
- Manufacturer: Eaton / Moeller
- Display Size: 5.7-inch diagonal
- Display Technology: High-contrast TFT color LCD
- Touch Grid: Analog resistive touch membrane
- Supply Voltage Rating: 24 VDC (±20% operating tolerance)
- Onboard Communication Ports: Integrated MPI/PPI/PROFIBUS-DP, RS-232, USB host/device interfaces
- Processing Core: 32-bit industrial RISC processor
- Front Bezel Protection: IP65 / NEMA 4X (indoor enclosure rating)
- Operating Temperature Range: 0°C to +50°C (32°F to 122°F)
- Storage Temperature Range: -20°C to +60°C (-4°F to 140°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring surplus HMI display hardware like the Eaton XVH-340-57MPI-1-13 requires strict bench diagnostic screening to verify touch layer accuracy, backlighting longevity, and communication transceivers. Every incoming module passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Serial numbers and build hardware revision tags are verified against original Eaton manufacturing databases. Technicians carefully examine the front membrane for scratches or sealing lip degradation, and inspect rear terminal connections for thermal fatigue.
- Live Simulation: The Eaton XVH-340-57MPI-1-13 is mounted into a diagnostic test station powered by a regulated, isolated 24 VDC power supply.
- Diagnostics: Technicians perform multi-point touch grid calibration routines to verify zero actuation drift across all display quadrants. The onboard MPI and RS-232 communication interfaces undergo active data loopback testing against a target controller. The panel then completes a 24-hour thermal soak inside an environmental test chamber to rule out display flickering or backlight output decay under heat.
- Final Prep: Internal runtime memory is wiped back to factory baseline states, terminal block screws are torque-verified, protective film is applied over the display glass, and the panel is sealed inside anti-static ESD shielding prior to freight transit.
The Field Engineer’s Pitfall Guide
- ❗ Network Baud Rate and DIP Switch Mismatches: —though you might expect the unit to auto-negotiate, failing to match hardware DIP switches or network baud rates on the replacement panel to your existing PLC network will trigger an immediate communication timeout error on power-up.
- ❗ Over-Torquing Cabinet Retaining Clips: Unevenly cranking down on outer mounting clamps will twist the plastic enclosure. I’ve seen plant technicians distort the front sealing gasket and induce permanent touch registration errors simply by using an electric driver instead of tightening clips evenly by hand.
- ❗ Strain and Flex Damage on Field Bus Connectors: Allowing heavy Sub-D communication cables to hang unsupported off the rear ports of the Eaton XVH-340-57MPI-1-13 will stress internal circuit board solder joints over time. Always secure proper strain-relief brackets inside the control enclosure.
Intent-Driven FAQ
Will swapping out an Eaton XVH-340-57MPI-1-13 require re-downloading the application project file?
Yes. Pre-owned and surplus panels arrive with cleared factory baseline memory. You must transfer your compiled runtime application project (screen layouts, tag mapping, and PLC driver configurations) using Galileo or the appropriate programming software via a USB or serial connection.
How do I correct touch input points that register offset from on-screen action buttons?
If screen taps become misaligned, enter the system configuration menu during the initial boot sequence. Access the integrated touch calibration utility and follow the screen crosshair prompts to re-index the analog resistive touch matrix layer.
Can this panel be powered directly from an unregulated 24V DC power transformer?
No. Unregulated DC power lines frequently carry transient voltage spikes that exceed the operational limits of the internal power board. Always feed the unit from a filtered, regulated 24 VDC industrial power supply.
What causes a dark screen when the power status LED lights up green?
A green status LED combined with an unlit display panel typically points to a failed backlight inverter board or an expired backlight bulb inside the unit. The internal logic processing board is operational, but the LCD matrix lacks backlighting output.
What warranty protection comes with pre-inspected replacement panels?
All verified Eaton XVH-340-57MPI-1-13 panels come backed by a comprehensive 1-year replacement warranty. If the unit experiences screen backlighting failure, touch layer loss, or communication port faults under standard operating parameters within 12 months, it is swapped directly from available warehouse inventory stock.
