Description
XV-363-10-C02-A00-1B is a 10 inch single touch touchscreen human-machine interface (HMI) designed specifically for industrial automation scenarios in the EATON-MOELLER XV300 series.
The display screen adopts a 10 inch TFT LCD color LCD with a resolution of 640 × 480 pixels, supporting 65535 color display, a contrast ratio of 500:1, and a delicate and clear image, suitable for long-term monitoring data display. The touch control method is infrared single point touch, with sensitive response and intuitive and easy operation. Equipped with high-performance processors and graphics engines, the operation is smooth and without lag. Run the Windows Embedded Compact 7 Pro operating system and support graphical interface development with tools such as Eaton Xsoft CoDeSys. It can achieve rich functions such as formula management, process value display, alarm indication, trend recording, data recording, etc. The interface elements support customization of icons, buttons, curve graphs, etc.

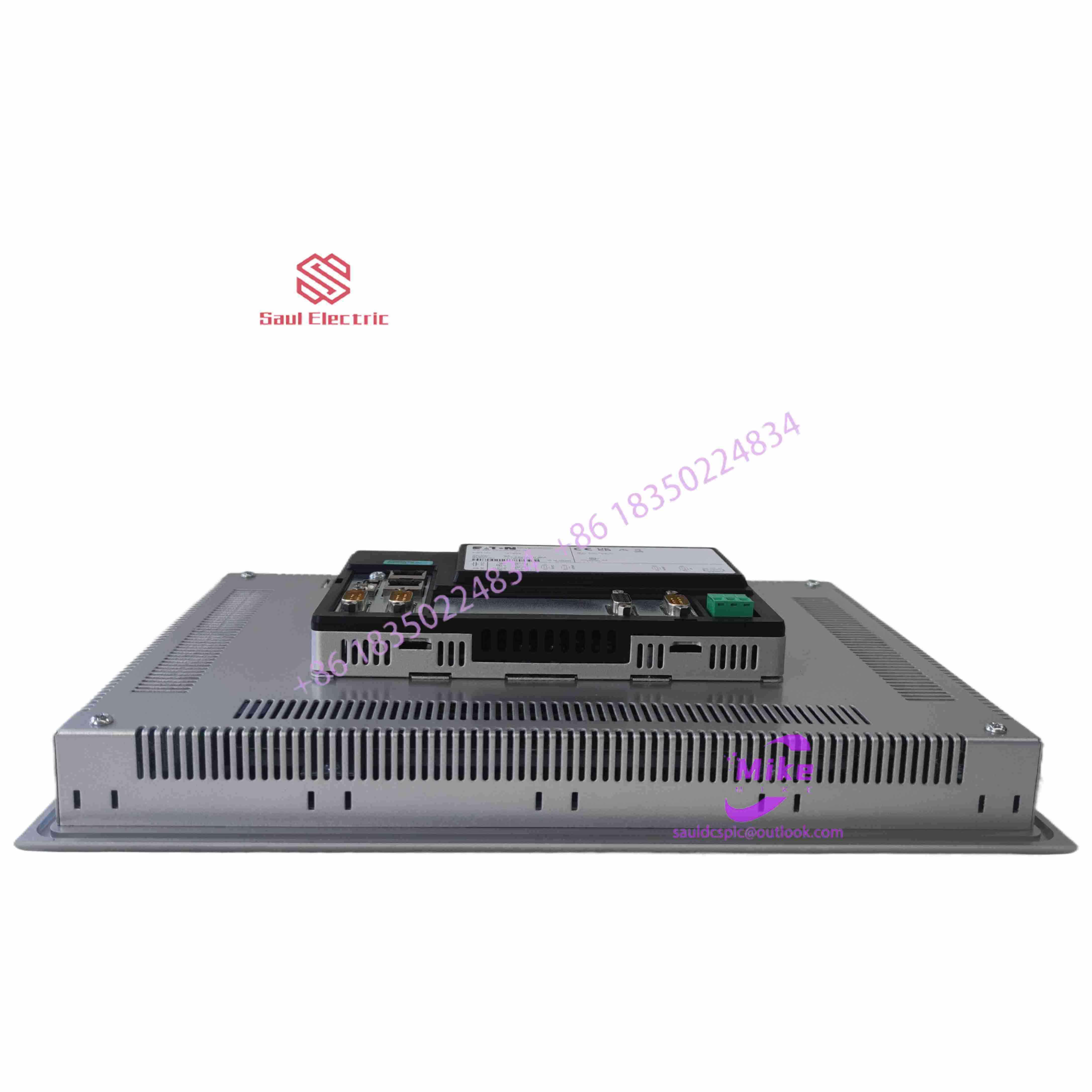

XV-363-10-C02-A00-1B EAON 10 inch touch screen
The communication interface is very rich, with standard configuration of 2 Ethernet ports (10/100Mbps), 1 RS232, 1 RS485, 1 CAN interface, 1 USB Host device port, 1 MPI interface, and optional PROFIBUS communication. Multi protocol parallelism enables seamless connection with various industrial equipment such as PLC, DCS, frequency converters, servo drives, etc., ensuring stability and real-time data transmission. Compared to the C00 version of the same series, this model has optional CAN interface and PROFIBUS functions, and also supports optional PLC function. It can directly run simple logic control on the touch screen, reducing dependence on external PLC.
Hardware design emphasizes adaptability to industrial environments. Adopting fanless CPU and system cooling, relying on natural convection for passive heat dissipation, with no moving parts and low failure rate. Protection level IP65, front dustproof and waterproof, can operate stably in industrial sites with dust, humidity, and strong electromagnetic interference. The working voltage is 24V DC and the power consumption is about 25W. The working temperature range is -20 ° C to+55 ° C, which meets the needs of most industrial environments. The external dimensions are approximately 305 × 235 × 65mm, with a weight of approximately 2.5kg, and it supports panel embedded installation.
In the same series, there are also XV-363-10-C00-A00-1B (basic version without CAN interface), XV-363-12-C02-A00-1B (12 inch version), XV-363-57-C02-A00-1B (5.7-inch version), etc., which can be flexibly selected according to screen size and interface requirements.
Typical applications cover industrial scenarios with clear requirements for human-machine interaction and environmental adaptability, such as manufacturing line monitoring, energy management systems, process industry process control, building automation (air conditioning, lighting, security monitoring), food processing, pharmaceuticals, packaging machinery, printing machinery, etc.
In summary, XV-363-10-C02-A00-1B is a 10 inch IP65 industrial HMI from Eaton’s Muller XV300 series. It features a 640 × 480 infrared touch screen, CAN/PROFIBUS/Ethernet multi protocol communication, fanless passive cooling, and optional PLC functionality as its core. It is a mature solution that balances operational experience and environmental reliability in process industries and building automation.
