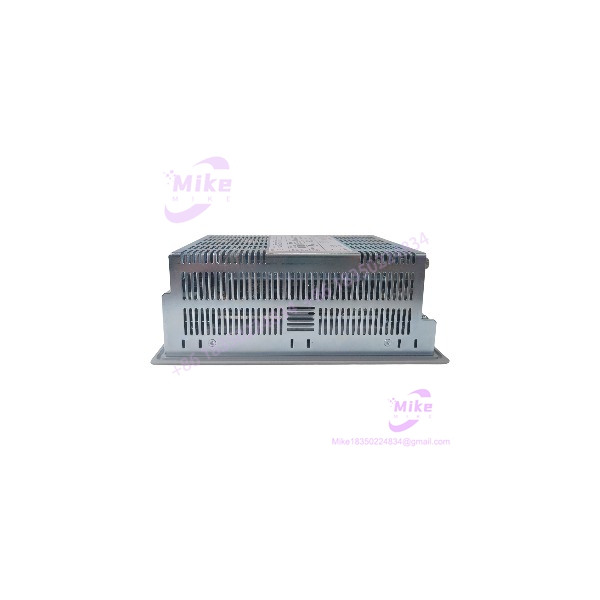

Eaton XV-460-57TQB-1-50-1 | 5.7″ Color Touch HMI Panel In-Stock
Dynamic Product Introduction
Few failure modes stall a production line faster than an operator panel display freezing mid-batch or dropping its communication links to the primary controller. The Eaton XV-460-57TQB-1-50-1 serves as an operator control terminal, pairing a crisp TFT display matrix with high-speed onboard protocol execution. Engineered specifically to handle continuous industrial use, it processes operator inputs, multi-variable trend charts, and real-time fieldbus messaging without introducing display latency or dropping network heartbeats.
When an operational screen suffers backlight failure, touch membrane degradation, or port communication faults during production, sourcing an exact-fit Eaton XV-460-57TQB-1-50-1 module keeps maintenance schedules moving smoothly. Installing a fully bench-tested replacement unit allows technicians to drop a working screen directly into existing cabinet cutouts without modifying mounting dimensions or altering underlying field bus wiring harnesses. Replacing a degraded terminal brings back sharp display readability, immediate touch response, and steady communications across your network.
XV-460-57TQB-1-50-1
Key Technical Specifications
- Model Designation: XV-460-57TQB-1-50-1
- Manufacturer: Eaton / Moeller
- Display Size: 5.7-inch diagonal
- Display Technology: High-contrast QVGA TFT color LCD
- Touch Technology: Analog resistive touch layer
- Supply Voltage Rating: 24 VDC (±20% operational window)
- Onboard Communication Ports: RS-232, Ethernet, USB host/device, multi-protocol fieldbus support
- Processing Architecture: 32-bit industrial RISC processor
- Front Bezel Protection: IP65 / NEMA 4X (indoor enclosure rating)
- Operating Temperature Range: 0°C to +50°C (32°F to 122°F)
- Storage Temperature Range: -20°C to +60°C (-4°F to 140°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing replacement HMI display hardware like the Eaton XV-460-57TQB-1-50-1 requires strict bench testing to verify touch layer calibration, backlighting stability, and communication transceivers. Every incoming module passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Serial numbers and hardware revision codes are verified against original Eaton manufacturing logs. Technicians carefully examine the front membrane for scratches or gasket degradation, and inspect rear terminal connectors for thermal stress.
- Live Simulation: The Eaton XV-460-57TQB-1-50-1 is mounted into a diagnostic test fixture powered by a regulated 24 VDC industrial power supply.
- Diagnostics: Technicians perform multi-point touch grid calibration routines to verify zero actuation drift across all display quadrants. Communication interfaces undergo active data loopback testing against a target controller. The panel then completes a 24-hour thermal soak inside an environmental test chamber to confirm zero display flickering or backlight decay under operational heat.
- Final Prep: User memory space is restored to factory defaults, terminal block screws are torque-verified, protective film is applied over the display glass, and the panel is sealed inside anti-static ESD shielding prior to freight transit.
The Field Engineer’s Pitfall Guide
- ❗ Communication Protocol and Driver Mismatches: —though you might expect the replacement screen to boot up automatically, failing to configure the correct fieldbus communication drivers and network parameters on the Eaton XV-460-57TQB-1-50-1 will cause immediate bus communication timeouts upon power-up.
- ❗ Over-Torquing Cabinet Retaining Clips: Unevenly cranking down on outer mounting clamps will twist the plastic enclosure. I’ve seen plant technicians distort the front sealing gasket and induce permanent touch registration errors simply by using an electric driver instead of tightening clips evenly by hand.
- ❗ Input Voltage Polarity Reversal: Connecting DC power leads backward to the main terminal block can pop the internal surface-mount input fuse. Always verify wire polarity with a digital multimeter before plugging the power block into the unit.
Intent-Driven FAQ
Will swapping out an Eaton XV-460-57TQB-1-50-1 require re-downloading the HMI application project?
Yes. Pre-owned and surplus panels arrive with cleared factory baseline memory. You must download your compiled runtime project application (screen layouts, tag mapping, and controller drivers) using Galileo or the appropriate programming software via a USB or network connection.
How do I correct touch input points that register offset from on-screen action buttons?
If touch points become misaligned, enter the system configuration menu during the initial boot sequence. Access the integrated touch calibration utility and follow the screen crosshair prompts to re-index the analog resistive touch matrix layer.
Can this panel be powered directly from an unregulated 24V DC power supply?
No. Unregulated DC power lines frequently carry transient voltage spikes that exceed the operational limits of the internal power board. Always feed the unit from a filtered, regulated 24 VDC industrial power supply.
What causes a dark screen when the power status LED lights up green?
A green status LED combined with an unlit display panel typically points to a failed backlight inverter board or an expired backlight bulb inside the unit. The internal logic processing board is operational, but the LCD matrix lacks backlighting output.
What warranty protection comes with pre-inspected replacement panels?
All verified Eaton XV-460-57TQB-1-50-1 panels come backed by a comprehensive 1-year replacement warranty. If the unit experiences screen backlighting failure, touch layer loss, or communication port faults under standard operating parameters within 12 months, it is swapped directly from available warehouse inventory stock.
