Eaton XV-303-10-C00-A00-1B | 10.4″ Multi-Touch HMI Panel In-Stock
Dynamic Product Introduction
Facing a shattered front glass or an unresponsive capacitive display on a 10.4-inch operator station turns standard production runs into an immediate operational hazard. The Eaton XV-303-10-C00-A00-1B functions as a heavy-duty operator interface window, combining a 10.4-inch anti-glare glass screen with rapid onboard graphics rendering and multi-network communication routing. Engineered to sit directly on control cabinet doors in high-vibration environments, it manages multi-finger gesture navigation, complex alarm tracking, and continuous PLC data synchronization without visual latency or communication frame drops.
When an operational display suffers glass damage, capacitive grid degradation, or network port failures mid-shift, securing an exact drop-in Eaton XV-303-10-C00-A00-1B unit keeps plant maintenance schedules strictly on track. Installing a fully bench-tested replacement module allows automation technicians to mount a working screen directly into existing enclosure cutouts without modifying door cutouts or altering underlying field wiring harnesses. Replacing a degraded unit restores crystal-clear screen visibility, precise touch response, and steady network handshakes across your automation architecture.

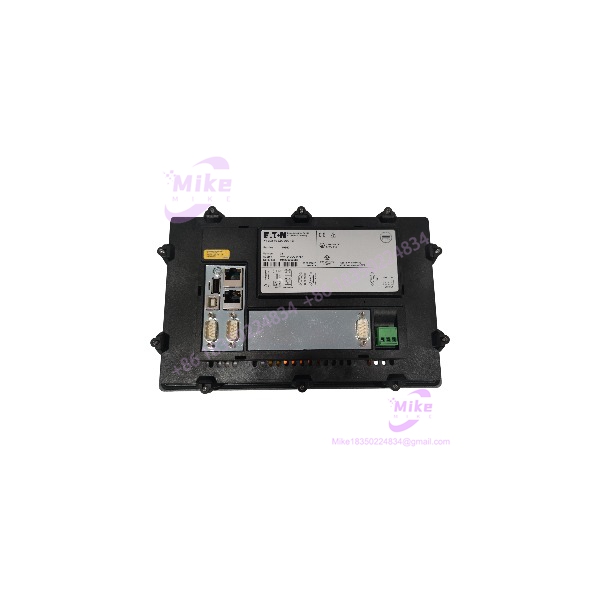

XV-303-10-C00-A00-1B
Key Technical Specifications
- Model Designation: XV-303-10-C00-A00-1B
- Manufacturer: Eaton / Moeller
- Display Size: 10.4-inch diagonal
- Display Technology: High-contrast VGA (640 x 480) TFT color LCD with heavy-duty glass front
- Touch Technology: PCT (Projected Capacitive Multi-Touch matrix)
- Supply Voltage Rating: 24 VDC (±20% operational window)
- Onboard Interfaces: Dual 10/100 Mbps Ethernet ports, RS-232, RS-485, USB Host/Device, SD card slot
- Processing Core: High-performance ARM Cortex-A9 industrial core
- Front Bezel Protection: IP65 / NEMA 4X (indoor enclosure rating)
- Operating Temperature Range: 0°C to +50°C (32°F to 122°F)
- Storage Temperature Range: -20°C to +60°C (-4°F to 140°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring mid-sized HMI hardware like the Eaton XV-303-10-C00-A00-1B requires strict bench diagnostic screening to verify capacitive multi-touch accuracy, backlighting uniformity, and dual-Ethernet transceiver integrity. Every incoming module passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Serial numbers and build hardware revision tags are verified against original Eaton manufacturing databases. Technicians carefully examine the 10.4-inch glass pane for micro-cracks or edge seal degradation, and inspect rear terminal connectors for pin fatigue or thermal stress.
- Live Simulation: The Eaton XV-303-10-C00-A00-1B is mounted into a diagnostic test rig powered by a filtered, regulated 24 VDC industrial power supply.
- Diagnostics: Technicians perform multi-gesture multi-touch calibration routines to confirm zero actuation drift across all display zones. The dual Ethernet ports and serial communication interfaces undergo active data-packet loopback testing against a target controller. The panel then completes a 24-hour thermal soak inside an environmental test chamber to rule out display flickering or backlight output decay under operational heat.
- Final Prep: Internal runtime memory is wiped back to factory baseline states, terminal block screws are torque-verified, protective film is applied over the glass surface, and the panel is sealed inside anti-static ESD shielding prior to freight shipping.
The Field Engineer’s Pitfall Guide
- ❗ Dual Ethernet Subnet Separation Errors: Plugging both Ethernet ports into the same local network switch without assigning distinct IP subnets creates a network loop and broadcast storm that will disable both the HMI display and connected network devices. Keep field-level PLC traffic and enterprise network links strictly on separate subnets.
- ❗ Over-Torquing Mounting Clips on Glass Bezel: Unevenly cranking down on the perimeter mounting brackets around the 10.4-inch frame applies mechanical stress to the outer glass overlay. I’ve seen plant technicians fracture the front tempered glass and trigger false ghost touch inputs simply by using an electric nut driver instead of hand-tightening clips evenly to torque spec.
- ❗ Multi-Touch Glove Calibration Sensitivity: While PCT (Projected Capacitive Touch) glass offers superior scratch resistance compared to older membrane screens, operating the Eaton XV-303-10-C00-A00-1B with heavy leather or thick industrial safety gloves can block capacitive sensing. Ensure operators use PCT-compatible touch gloves or adjust touch sensitivity in the system configuration menu.
Intent-Driven FAQ
Will swapping out an Eaton XV-303-10-C00-A00-1B require re-downloading the application project file?
Yes. Pre-owned and surplus panels arrive cleared to baseline factory memory states. You must transfer your compiled runtime visualization application project (screen layouts, tag mapping, and PLC drivers) using Galileo or the appropriate programming software via an Ethernet connection or SD card.
How does this XV-303-10-C00 model differ from the XV-303-10-C02 variant?
The “-C00” designation indicates an HMI-only panel hardware configuration, whereas the “-C02” variant includes onboard CANopen hardware and integrated CODESYS PLC runtime license capabilities. If your system relies on an external PLC for logic execution, the “-C00” model functions as the standard visualization operator interface.
Can this panel be powered directly from an unregulated 24V DC power supply?
No. Unregulated DC power lines frequently carry transient voltage spikes that exceed the operational limits of the internal processor board. Always feed the unit from a filtered, regulated 24 VDC industrial power supply.
What causes a dark screen when the power status LEDs on the rear indicate active power?
A dark display combined with active power LEDs typically points to a backlight inverter failure or an unseated display ribbon cable connection inside the panel. The onboard processing core is operational, but the LCD matrix lacks backlight illumination.
What warranty protection comes with pre-inspected replacement panels?
All verified Eaton XV-303-10-C00-A00-1B panels come backed by a comprehensive 1-year replacement warranty. If the unit experiences screen backlighting failure, touch grid degradation, or communication port faults under standard operating parameters within 12 months, it is swapped directly from available warehouse inventory stock.
