Eaton MTL4850 | HART Multiplexer Module, 32-Channel SIL3
Architect’s Product Breakdown
The Eaton MTL4850 functions as a high-density HART multiplexer designed to link smart field instrumentation with control systems and FDT-based asset management software. Engineered with a fixed 32-channel modularity, this unit optimizes scanning speed and response times for polling diagnostic data across process loops. Crucially, it is certified for functional safety applications up to SIL 3 per IEC 61508, enabling direct connection to safety instrumented functions without interfering with primary control loops.
Integrating the MTL4850 into an existing marshalling architecture requires configuring the RS485 network parameters and ensuring correct backplane seating. Up to 63 modules can reside on a single multidrop serial link, allowing seamless scaling across thousands of field devices. Technicians must verify proper DC power supply voltages and maintain isolated signal wiring paths to prevent common-mode electrical noise from corrupting digital HART data packets.

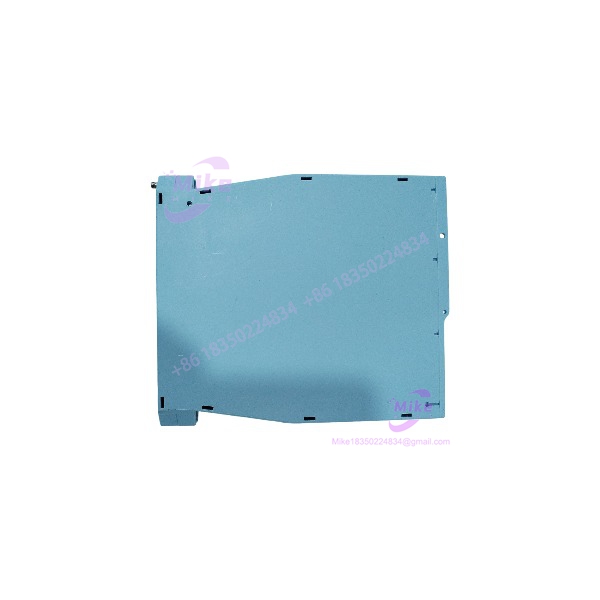

MTL4850
Key Technical Specifications
| Parameter | Specification |
| Model Designation | MTL4850 |
| Channel Capacity | 32 channels per module |
| Host System Interface | RS485 2-wire multidrop (Auto-baud: 38400, 19200, 9600, 1200 baud) |
| Supply Voltage | 19 V to 35 V DC |
| Power Consumption | <1.6 W at 24 V DC |
| Channel Isolation | 50 V DC channel-to-channel / field loop isolation |
| Safety Rating | SIL 3 certified per IEC 61508 |
| Ambient Operating Temperature | -40°C to +70°C |
| Enclosure Rating | IP20 Open-style backplane module |
| Weight | Approx. 125 g |
Field Engineer’s Pitfall Guide
- WARNING: RS485 Network Termination and Biasing. Omitting end-of-line biasing resistors on long RS485 serial runs will cause packet corruption and intermittent loss of communication with asset management software.
- WARNING: Power Supply Voltage Sag. Ensure the 24V DC power rails feeding the backplane do not dip below 19V DC under transient loads, which will force the module to reset and clear active diagnostic buffers.
- WARNING: Backplane Pin Alignment. Exercise extreme care when snapping the 32-channel module onto custom or generic backplanes; forcing a misaligned unit will bend fragile gold connector pins and compromise loop isolation integrity.
QA & Testing SOP
- Visual & Origin Verification: Inspect the molded housing for structural defects, verify factory laser markings, and ensure gold-plated edge connector pins are entirely free of oxidation.
- Power-Rail Bench Test: Seat the module onto a live test backplane powered by a regulated 24V DC supply to confirm stable status LED illumination and proper internal logic power regulation.
- Serial Communication Handshake: Connect via the RS485 port using a configuration tool to verify auto-baud rate detection and successful polling across all 32 channels.
- Isolation Verification: Perform insulation resistance tests to confirm the 50V DC channel-to-channel isolation barrier remains intact.
- Packaging: Enclose in static-shielding material and pack with dense anti-static foam inside a sturdy cardboard container.
Technical FAQ
Can the MTL4850 be used in safety-critical loops up to SIL 3?
Yes. The MTL4850 is certified to IEC 61508 for use in safety instrumented functions up to SIL 3, providing non-intrusive HART monitoring.
How many HART devices can be addressed on a single RS485 network?
Using a multidrop serial link configuration, up to 2,016 individual HART devices can be connected across multiple modules on a single network.
Does this module require manual baud rate configuration?
No. The multiplexer features auto-baud rate detection supporting 38400, 19200, 9600, and 1200 baud speeds.
Can I hot-swap this multiplexer module while the system is powered?
Yes, provided standard plant hot-work and live-maintenance safety protocols for the specific backplane carrier are observed.
