Eaton MC2-442-57CQB-1-2A — Industrial Touchscreen HMI
Product Overview
The MC2-442-57CQB-1-2A is an industrial-grade Human Machine Interface (HMI) touchscreen manufactured by Eaton. It belongs to Eaton’s Micro Innovation product line — originally developed by Swiss company Micro Innovation Holding AG before Eaton acquired it in 2008 and integrated it into its automation and control business.

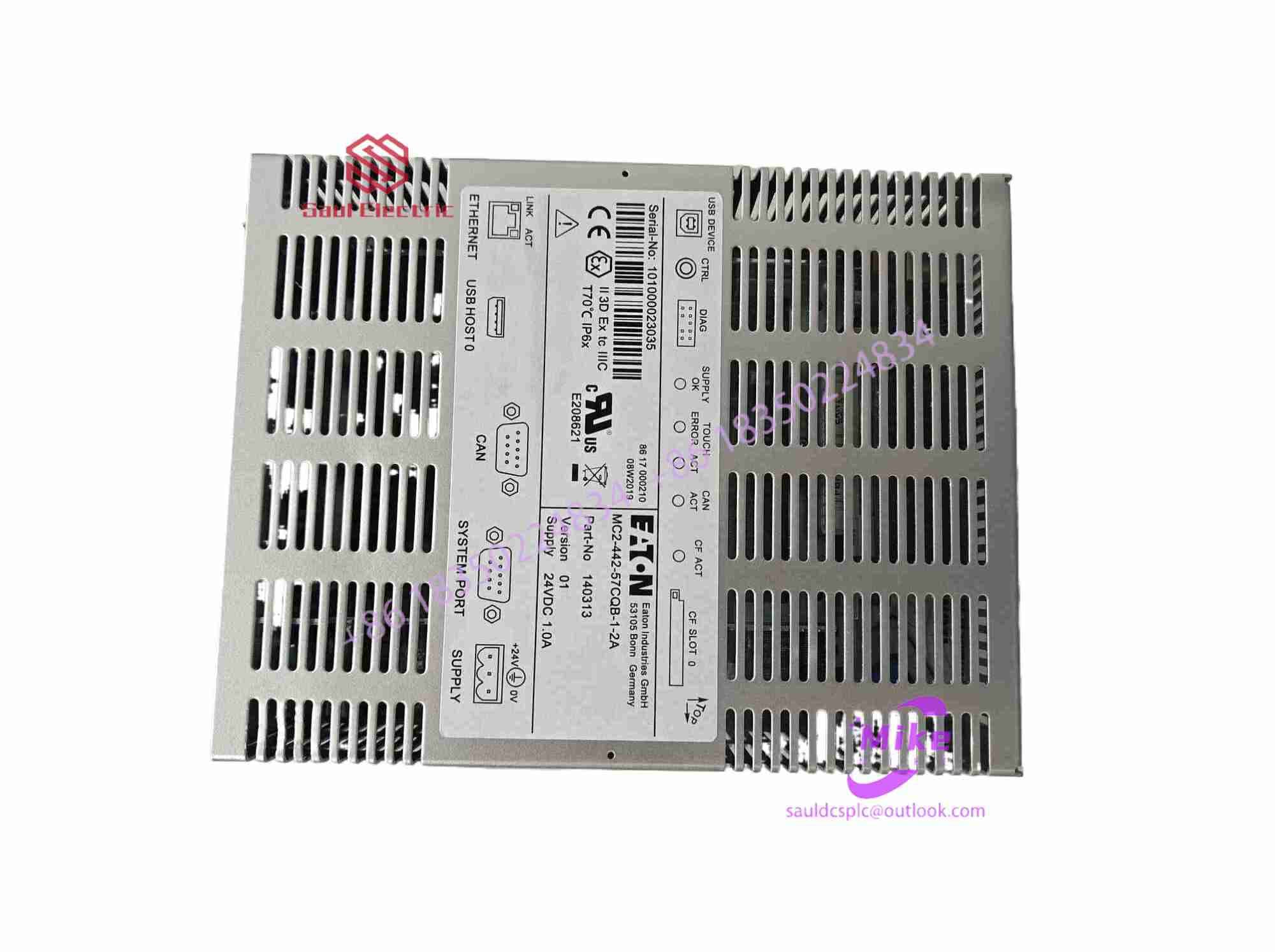

MC2-442-57CQB-1-2A Eaton Touch Screen
Model Number Breakdown
The part number can be decoded as follows:
- MC2 — Product series, Eaton medium-sized control panel family
- 442 — Display size, approximately 12 inches, 4:3 aspect ratio
- 57 — Communication interface type, Profibus DP
- CQB — Configuration variant, typically indicating touchscreen with communication expansion
- 1 — Number of expansion slots or communication ports
- 2A — Power and signal variant, 24V DC power supply
Other variants in this family include MC2-442-57CQB-1-10, -1-20, -1-30, -1-31, and -1-50, which differ primarily in communication interfaces and expansion configurations.
Core Functions
Touch Input — The unit uses resistive touchscreen technology, supporting operation by finger or dedicated stylus. The interface is intuitive, making it suitable for on-site parameter settings, status monitoring, and alarm acknowledgment in industrial environments.
Real-time Display and Control — It can show system process flow graphics, live operating parameters, and alarm messages. Operators can modify parameters, switch between manual and automatic modes, and start or stop equipment directly from the screen.
Data Logging and Alarm Management — The HMI features built-in historical data buffering, event recording, and alarm archiving, enabling full traceability of process events and operator actions.
Communication Interfaces — Standard RS-232 serial port is included. Through optional expansion modules, it supports Profibus DP, Modbus RTU/TCP, CANopen, DeviceNet, and EtherNet/IP — allowing seamless integration with PLCs, variable frequency drives, servo drives, and other field devices.
Rugged Design — The front panel achieves IP65/IP66 (NEMA 4X) protection, resistant to oil, chemical exposure, dust, moisture, and vibration. It is engineered for harsh industrial environments.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Display size | 12-inch TFT LCD, 4:3 aspect ratio |
| Resolution | 800 × 600 pixels |
| Colors | 65,536 (16-bit) |
| Touch type | 4-wire resistive touchscreen |
| Processor | 32-bit RISC |
| Memory | Flash ≥ 8 MB, RAM ≥ 16 MB |
| Communication ports | RS-232/RS-485, Profibus DP (expandable) |
| Power supply | 24 V DC ± 20% |
| Power consumption | Approximately 3–5 W |
| Operating temperature | 0°C to +55°C |
| Storage temperature | -20°C to +70°C |
| Front panel rating | IP65 |
| Certifications | CE, UL, CSA, TÜV |
Typical Applications
The MC2-442-57CQB-1-2A is widely deployed across multiple industries:
- Power distribution and management — Local monitoring of Eaton low-voltage switchgear and motor control centers (MCC)
- Water treatment and pumping stations — Pump start/stop control, level monitoring, flow display
- HVAC — Parameter setting and monitoring of chillers, air handling units, and cooling systems
- Packaging and material handling — Equipment status display, recipe selection on production lines
- Food, beverage, and pharmaceutical — Washdown-rated front panel options available for hygiene-critical environments
- Marine and offshore platforms — Salt mist and vibration resistance suitable for shipboard and offshore installations
Accessories and Expansion
Eaton provides a comprehensive range of accessories for the MC2 series:
- Communication expansion cards — COM-BCB-TP (CANopen), COM-PDP-TP (Profibus DP), COM-MPB2-TP (Modbus)
- Memory cards — MEMORY-CF-A1-S, MEMORY-SD-A1-S for data storage expansion
- Battery modules — MC-ACP-BAT01/02 for data retention during power loss
- Protection kits — ACCESSORIES-HKS-IP65 series for enhanced front panel sealing
- Cables — CABLE-RJ45-CL, XT-232-PT-10-01 and other dedicated connection cables
Compatible Systems
The HMI integrates natively with Eaton’s own automation platforms, including:
- Eaton xCom — Eaton’s PLC and control system family
- Eaton Power Xpert — Power management and monitoring software
- Third-party PLCs — Siemens S7, Allen-Bradley ControlLogix, Schneider Modicon, Mitsubishi, Omron, and others via Modbus or Profibus
It also works with Eaton’s CML motion controllers and various servo drive families.
Maintenance Notes
- Touchscreen calibration: Resistive screens can drift over time — recalibrate annually using the built-in calibration utility accessed through the engineering software
- Battery replacement: The internal backup battery (if fitted) typically lasts 3–5 years — replace proactively to avoid data loss on power failure
- Firmware updates: Eaton releases periodic firmware improvements for communication stability and new protocol support — check with your local Eaton service office
- Configuration backup: Always export and save the HMI project file — if the unit fails, a replacement can be flashed with the same configuration in minutes
- Front panel cleaning: Use only approved IP65-rated cleaning agents — harsh solvents can degrade the touchscreen overlay or gasket seals
