Bently Nevada 3500/92 | Communication Gateway Module, New In Stock
Architect’s Product Breakdown
The Bently Nevada 3500/92 acts as the primary digital conduit between the proprietary 3500 machinery protection rack and upper-level plant infrastructure like Distributed Control Systems (DCS), Supervisory Control and Data Acquisition (SCADA) packages, and condition monitoring software. Installed in the dedicated communication slots of the rack, this module pulls real-time static values, dynamic waveforms, alarm statuses, and event lists across the internal backplane bus and translates them into open industry protocols such as Modbus TCP and Modbus RTU.
System configuration requires careful assignment of IP addresses, register mapping tables, and serial communication baud rates using the 3500 Configuration Software utility. Network topology design is critical here; dual Ethernet ports allow engineers to implement redundant ring architectures or separate control network traffic from enterprise data streams. When commissioning, technicians must ensure firmware revisions match the rack interface modules to avoid dropped packet rates or sluggish data update intervals during plant startup phases.

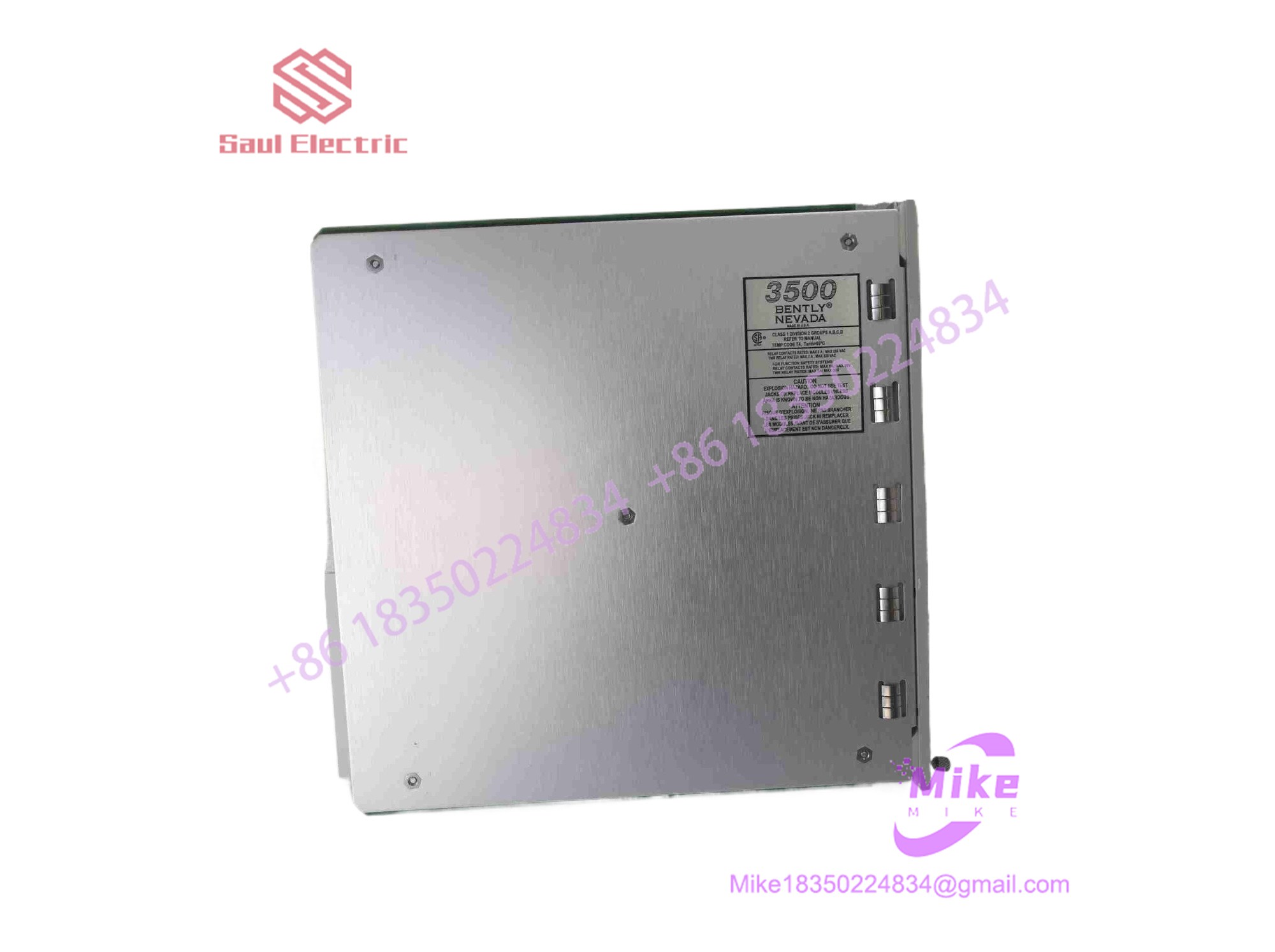

3500/92
Key Technical Specifications
| Parameter | Specification Data |
| Module Type | Communication Gateway (Modbus/Ethernet) |
| Supported Protocols | Modbus TCP, Modbus RTU, Proprietary Bently Nevada protocols |
| Communication Ports | Dual RJ45 10/100 Base-T Ethernet, RS-232/RS-422/RS-485 serial ports |
| Power Consumption | 7.5 Watts typical |
| Update Rate | Sub-second polling capability for dynamic and static data |
| Operating Temperature | -30^\circC to +65^\circC |
| Storage Temperature | -40^\circC to +85^\circC |
| Relative Humidity | Up to 95%, non-condensing |
| Physical Dimensions | Standard 3500 rack communication slot width |
Field Engineer’s Pitfall Guide
- Register Address Offsets: Different DCS platforms handle Modbus holding register indexing with 0-based or 1-based numbering. Failing to account for this offset during SCADA mapping will cause tags to pull incorrect vibration channels or offset values.
- Firmware Mismatch Timeouts: Upgrading a rack’s rack interface module (RIM) without updating the 3500/92 gateway firmware can trigger continuous communication dropouts over the Modbus link. Always verify compatible firmware bundles before flashing cards in the field.
- Unmanaged Switch Broadcast Storms: I have tracked intermittent gateway lockups to plant networks flooding unmanaged switches with diagnostic broadcast traffic. Always isolate machinery protection networks onto dedicated VLANs with industrial-grade managed hardware.
QA & Testing SOP (Transparency)
- Visual & Origin Inspection: Verification of OEM anti-tamper seals, serial number plate integrity, and backplane pin alignment.
- Bench Test Environment: Insertion into a live 3500 test rack powered by verified system power supplies.
- Diagnostic Handshake: Firmware version validation, rack communication bus verification, and front-panel LED status check (OK, TX/RX, COMM, CONFIG).
- Network Protocol Handshake Test: Polling registers via Modbus TCP and serial interfaces on a test network to verify data integrity, response times, and packet throughput.
- Packaging: Antistatic ESD shielding encased in custom high-density foam packaging to prevent transit damage.
Technical FAQ
- Can I hot-swap this module while the machine is running? Yes, the 3500 rack architecture supports online insertion and removal of the 3500/92 communication gateway without powering down the rack or affecting primary safety monitor cards.
- Does the gateway module affect safety instrumented system integrity? No, the 3500/92 operates on an isolated communication layer and cannot alter safety trip setpoints or override hardwired relay modules.
- Does the module retain its configuration after a complete power loss? Yes, network parameters, IP settings, and register mappings are stored in non-volatile flash memory on the card.
- What physical ports are available on the rear I/O card? The standard rear module provides dual Ethernet RJ45 connections alongside configurable serial terminal blocks for RS-232 or RS-485 physical layers.
