Description
The 3500/91 is a communication gateway module developed by Bently Nevada, primarily used in industrial automation and process control fields to provide comprehensive data communication capabilities for the 3500 series racks.
Key Features
- Support for Multiple Communication Protocols:
- EGD (Ethernet Global Data) Protocol: Supports EGD V2.01 protocol for efficient data transmission.
- Modbus Protocol: Includes Modbus RTU (via RS-232/RS-422/RS-485 serial communication) and Modbus TCP/IP (via Ethernet communication).
- Proprietary Protocol: Supports Bently Nevada’s proprietary protocol for communication with 3500 rack configuration and data acquisition software packages.
- High-Speed Data Acquisition and Transmission:
- Collects information from other modules in the rack using a high-speed internal network, including time-stamped current measurements, module status, and current alarm status.
- Data acquisition rate does not exceed 1 second, ensuring real-time and accurate data.

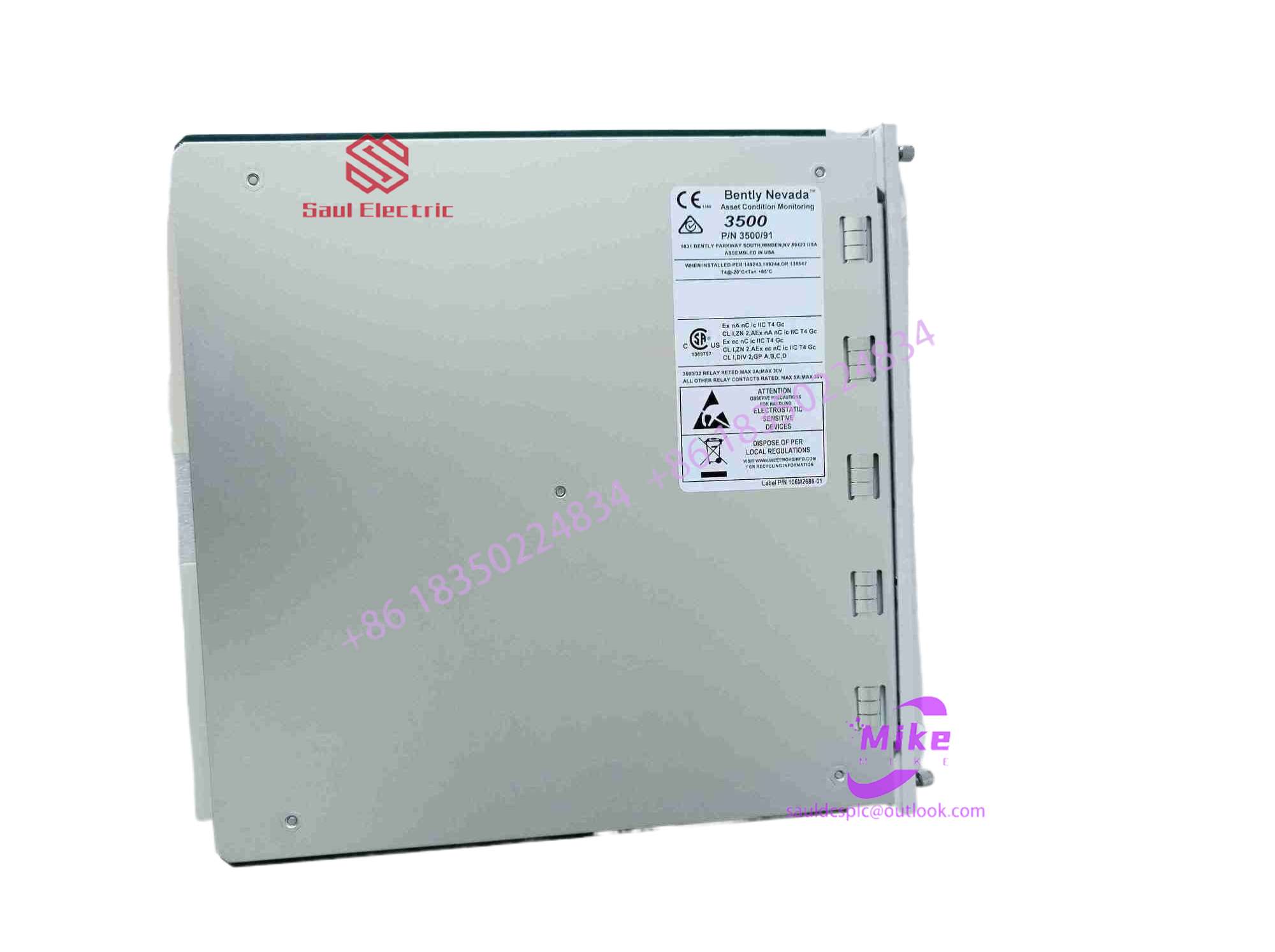

3500/91 Bently Nevada Communication Gateway Module
- Flexible Ethernet Connectivity:
- Provides 10BASE-T and 100BASE-TX (twisted-pair) Ethernet connections, compliant with IEEE 802.3 standards.
- Supports fiber optic Ethernet connections (100BASE-FX), compliant with IEEE 802.3u standards.
- Ethernet interfaces utilize RJ45 connectors for easy installation and maintenance.
- Modular Design:
- Adopts a modular design that supports hot-swapping for easy maintenance and expansion.
- The main module occupies a full-height slot on the front of the 3500 rack, while the I/O module is installed in the corresponding slot on the back of the rack.
- Status Indication and Diagnostic Functions:
- Equipped with an OK indicator to display the module’s operational status.
- TX/RX indicators are used to indicate network communication status, facilitating troubleshooting.
Main Functions
- Data Exchange and Integration:
- Supports producer and consumer data exchange modes to enable functions such as rack status monitoring, alarm reset, and alarm suppression.
- Can be integrated with control systems that support the EGD protocol (e.g., GE Mark VIe) for condition monitoring and data analysis.
- Remote Monitoring and Management:
- Supports remote access via network connections, allowing operators to remotely monitor the operational status of rotating equipment and perform remote diagnostics and control.
- Provides fault diagnosis and early warning functions to monitor equipment status and issue alarms in case of abnormalities.
- Data Logging and Analysis:
- Can record and store monitoring data from rotating equipment for subsequent analysis and evaluation of equipment status.
- Helps users identify potential issues, develop corresponding maintenance plans, and optimize equipment operational efficiency.
Application Scenarios
- Power Industry: Used for equipment monitoring in power plants to improve operational efficiency.
- Oil and Gas Industry: Real-time monitoring of the health status of rotating equipment to prevent equipment failures.
- Industrial Automation Field: Connects to SCADA/DCS systems for remote monitoring and data management.
Technical Specifications
- Power Consumption: Typical power consumption is 7.4 watts.
- Operating Temperature Range: -30°C to +65°C (-22°F to +150°F).
- Storage Temperature Range: -40°C to +85°C (-40°F to +185°F).
- Humidity: 95%, non-condensing.
3500/91 Bently Nevada Communication Gateway Module
