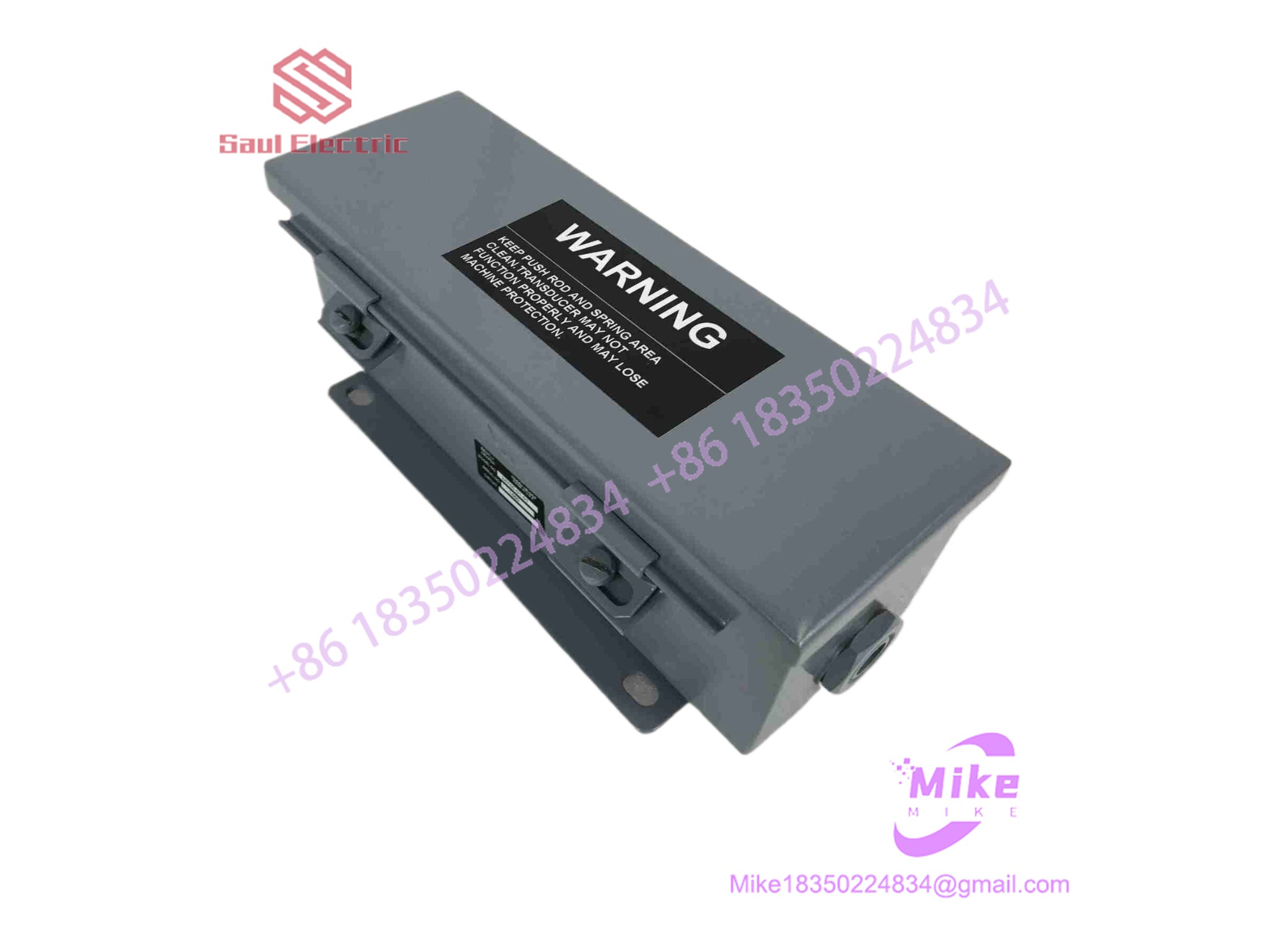

Bently Nevada 24765-01-01 | Case Expansion Transducer Assembly Core Category
Dynamic Product Introduction
Monitoring the physical growth of high-temperature turbine casings during thermal startup cycles remains critical to preventing severe mechanical misalignment and rub conditions. The Bently Nevada 24765-01-01 operates as a high-precision DC-operated case expansion transducer assembly engineered to gauge sliding foot displacement relative to the machine foundation. Unlike generic displacement sensors prone to calibration drift under high ambient heat, this industrial LVDT unit provides continuous, deterministic feedback to turbine supervisory systems.
Moving beyond obsolete mechanical indicators, this specific transducer model integrates robust spring-return mechanics and stable electrical scaling to interface seamlessly with 3500 machinery protection frameworks. Field operational history confirms that deploying this assembly secures early detection of bound or restricted sliding feet, safeguarding multi-megawatt rotating assets against catastrophic casing distortion.
24765-01-01
Key Technical Specifications
- Device Type: DC Case Expansion Transducer Assembly
- Linear Range Option: 25.4 mm (1.00 in)
- Spring Option: With spring return mechanism
- Electrical Scale Factor: 0.346 V/mm (8.79 V/in)
- Operating Temperature Range: -18^\circC to +71^\circC (0^\circF to +160^\circF)
- Storage Temperature Range: -54^\circC to +93^\circC (-65^\circF to +200^\circF)
- System Compatibility: Bently Nevada 3500 Machinery Protection System (specifically compatible via displacement monitor configurations)
- Weight: ~2.3 kg (5.07 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement displacement transducers on critical turbine supervisory networks requires a rigorous bench verification protocol to guarantee stroke linearity and electrical output accuracy.
- Inbound Verification: Incoming transducer assemblies are cross-referenced against original factory production lots. Core rods, extension linkage hardware, and electrical connectors are inspected under optical magnification for mechanical binding, thread wear, or pin corrosion.
- Live Simulation: The transducer is mounted onto a precision calibration micrometer bench test rig powered by a regulated DC source matching system operating requirements.
- Diagnostics: Technicians execute full-stroke displacement sweeps (0 to 25.4 mm), measuring output voltage changes against high-resolution digital multimeters to verify that the scale factor stays strictly within the 0.346 V/mm baseline. Units undergo thermal stability checks to ensure zero output drift.
- Final Prep: Once calibration logs confirm structural and electrical integrity, the mechanical core is secured, ports are capped, and the unit is packaged in an anti-static moisture-barrier box.
The Field Engineer’s Pitfall Guide
❗ Failing to Account for Core Alignment Binding: Mounting the transducer bracket at an angular offset relative to the turbine sliding foot movement vector side-loads the internal spring-return core rod, leading to erratic output data and premature mechanical wear. (I’ve seen plants scrap brand-new transducers within weeks because expansion brackets were welded slightly out of plumb.) Always use dial indicators to verify linear alignment during installation.
❗ Unshielded Signal Cabling to the Monitor Rack: Running transducer signal wires alongside high-voltage motor feeds or exciter cabling without continuous shielded twisted-pair grounding picks up massive electromagnetic interference, causing noisy spikes on the 3500 monitor display. Always terminate shields strictly at the designated system ground bulkhead.
❗ Exceeding Temperature Limits at the Core Mount: Positioning the transducer body too close to uninsulated high-temperature steam lines without proper thermal standoff extensions can drive internal coil temperatures past the +71^\circC limit, destroying electrical insulation. Always utilize recommended thermal barriers and cooling fins.
Intent-Driven FAQ
Will swapping this 24765-01-01 transducer require reconfiguration of the 3500 monitor?
Because scale factors and electrical ranges match standard Bently Nevada case expansion configuration parameters, a direct form-fit replacement typically requires zero monitor software changes, provided scale factors are verified during zeroing.
Can this sensor be replaced while the steam turbine is hot and running?
Replacing an expansion transducer on a live, running turbine is generally restricted due to physical access hazards near high-temperature steam casings and potential tracking disturbances on protection loops. Maintenance is typically scheduled during planned unit outages.
What causes the monitor to read a fixed maximum or minimum value?
A pegged reading usually points to an open or shorted signal cable, a stuck spring-return core rod bound by mechanical debris, or an internal LVDT coil failure. Checking continuity and mechanical free-play isolates the fault.
Is the 24765-01-01 compatible with older Bently Nevada monitoring racks like the 3300 series?
While primarily designed for modern 3500 monitoring configurations, compatibility depends on the specific monitor card module installed. Always cross-reference your rack architecture specifications before installation.
What kind of warranty accompanies surplus or refurbished 24765-01-01 units?
Reputable industrial suppliers typically back tested surplus or refurbished monitoring hardware with a standard 1-to-2 year replacement warranty, supported by an independent bench test report confirming stroke linearity and scale factor accuracy.
